CARE FREE single hung tilt window balances & pivot shoes : SWISCO.com

Landlord from Gladwin, MI 48624

Aug 6, 2024 11:33 am

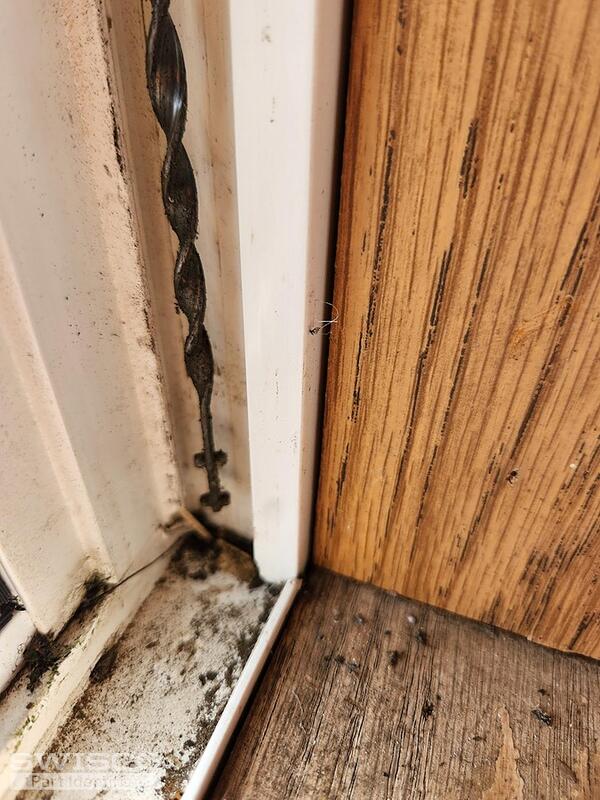

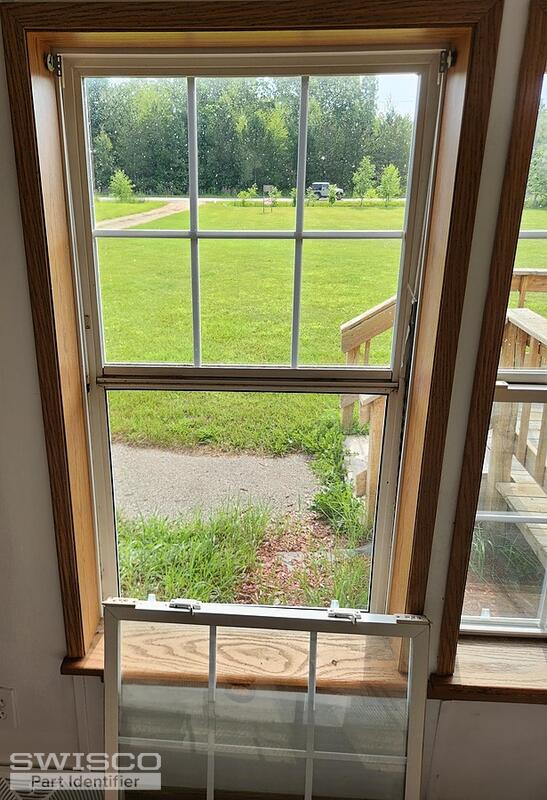

Hello, I have a 1995 Commodore manufactured home with Care Free vinyl windows. They are single hung, top sash fixed, bottom sash tiltable, with 3/8" red spiral balances. I didn't remove and measure everything, but hoping this might be sufficient to identify the correct parts: Balances and shoes and possibly pivot bars:

(4) Windows @ 30" x 53 7/8"
(5) Windows @ 36" x 53 7/8"
(3) Windows @ approximately 24"x68"

Any help would be so greatly appreciated!

5 user uploaded images

8 Replies

Paul from SWISCO

Aug 7, 2024 3:42 pm

Hello,

Your window locks resemble the 90-005. We also offer the 15-045 pivot shoes. Review the dimensions below to see how they compare to your original parts.

Alternate image for 90-005

Dimensions for 15-045

For your 3/8" balances, see the red tip Series 900 spiral balances. You'll need to measure the length of the housing tubes to choose the correct replacements. If you need new pivot bars as well, we would need to see photos of yours uninstalled to compare to our inventory.

Landlord from Gladwin, MI 48624

Aug 7, 2024 5:22 pm

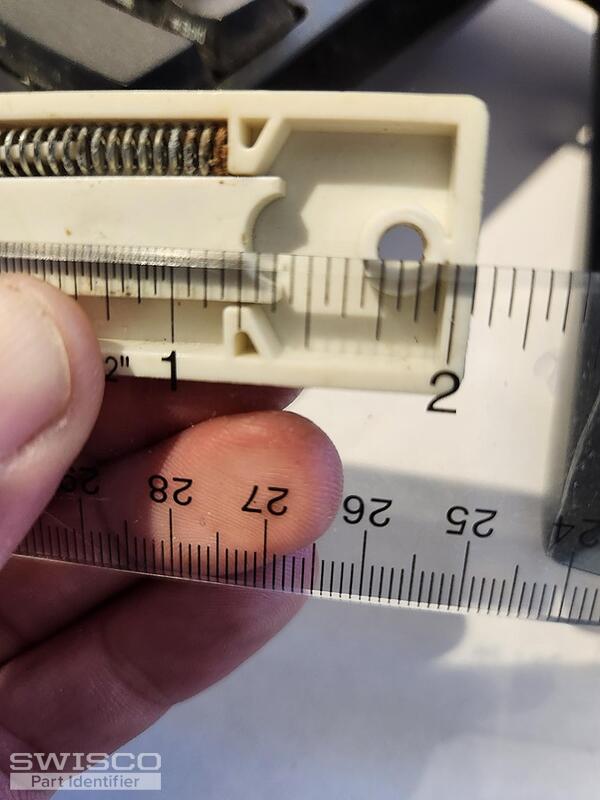

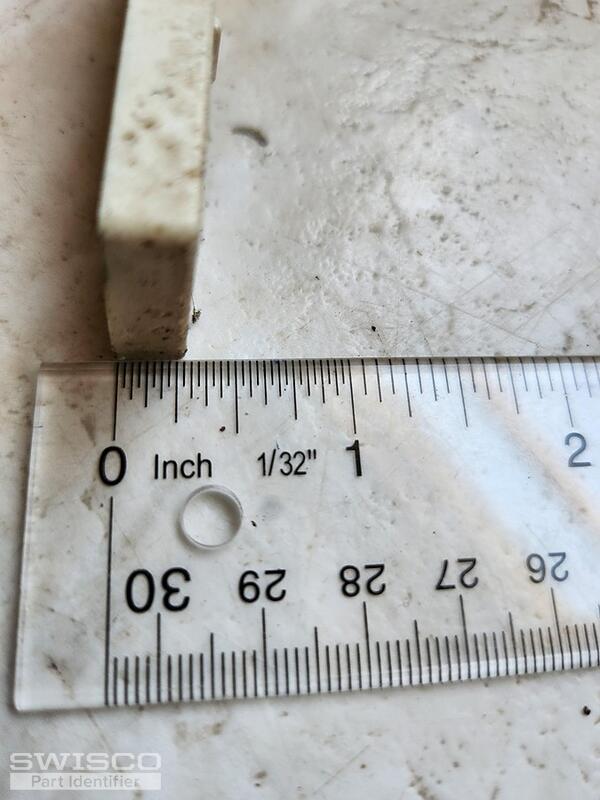

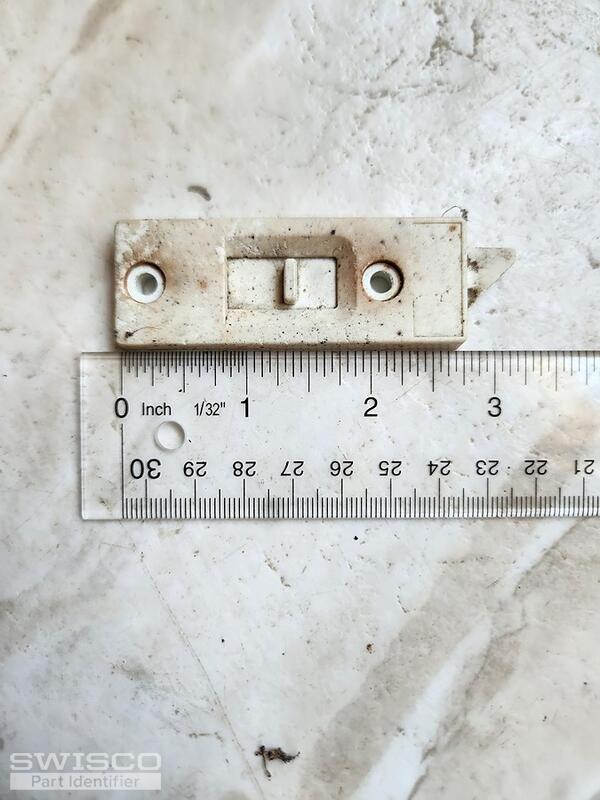

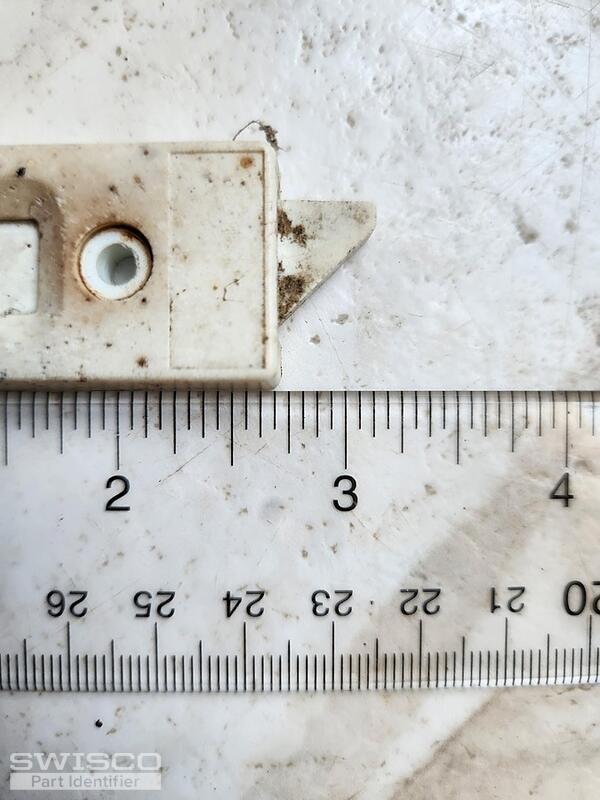

Paul, thank you so much for getting back to me! You are 100% correct on everything! I've identified the correct pivot bars, shoes, and spiral balances, but I'm having a hard time finding the correct Surface Mounted Tilt Latches...The ones on the windows are 2 3/4" long (or 2 11/16"), 1" wide, and 5/16" height. Hole to hole measurement is 1 13/16". Hole to edge measurement is 21/32" or 11/16"...closest I've found is part#: 26-410. 2nd question, do you sell the white vinyl/plastic sleeves that cover/go over the metal balances? Any help would be greatly appreciated! Thank you :)

4 user uploaded images

Paul from SWISCO

Aug 8, 2024 8:49 am

Thanks for getting back to us. We only offer one tilt latch pair with 1-13/16" hole spacing. See the 26-410 below. We can't make any guarantees since the style is a bit different but if the hole spacing matches, it would be worth considering. The only dimensions I'm concerned about would be the 23-32" backset since it could cause the end of the latch to hang over the end of the sash a bit. Review the dimensions below and see what you think.

Alternate image for 26-410

Landlord from Gladwin, MI 48624

Aug 8, 2024 10:44 am

I'll give them a try, thanks again!

Paul from SWISCO

Aug 8, 2024 11:13 am

We're happy to help! Just let us know if you need anything else.

Landlord from Gladwin, MI 48624

Aug 13, 2024 9:36 am

I installed all new balances, shoes, rods, and latches, and I must say, everything worked out great and they all function perfectly. Thank you so much for your help!

Paul from SWISCO

Aug 13, 2024 10:26 am

That's great! Thanks for letting us know how everything worked out.
