CHANNEL BALANCE

Question

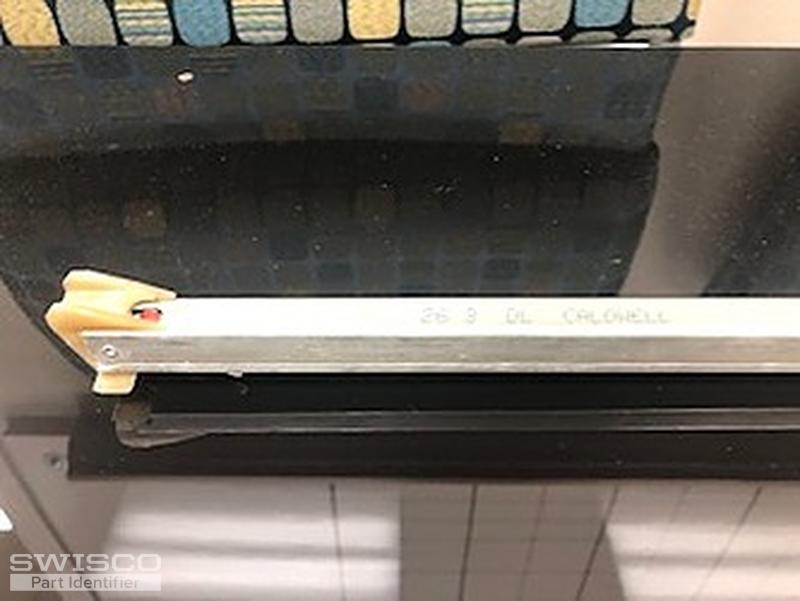

THE ONLY THING I SEE WRITTEN ON IS 26 3 DL CALDWELL. IT'S 9/16 WIDE AND 27" LONG
WITHOUT THE ENDS INCLUDED, JUST THE METAL.

Tom · Accepted Answer

Thank you for submitting your inquiry to our discussion board.

It looks like you have either our series 380 or series 385 channel balance.

The difference between the two series lies in the bottom shoe.

Comparison of 15-004 and 15-005

The series 385 balance has the 15-004 shoe which is slightly larger from front to back, as illustrated.

If you measure your shoe as it is pictured here, you should be able to determine which one you need.

Once you determine which series you need, you will choose the 27 inch length with the 2630 stamp option.
