CHANNEL BALANCE
Quick Learner from KILDEER IL
May 17, 2018 6:50 pm

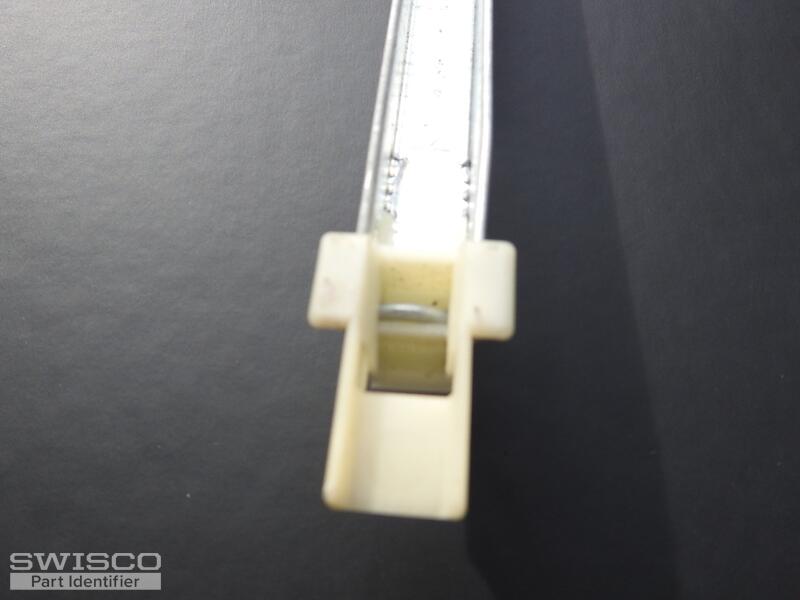

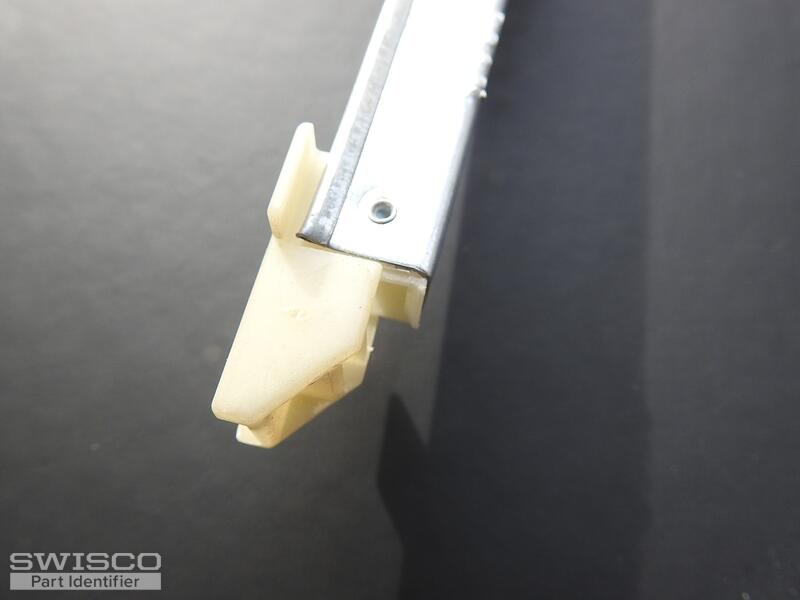

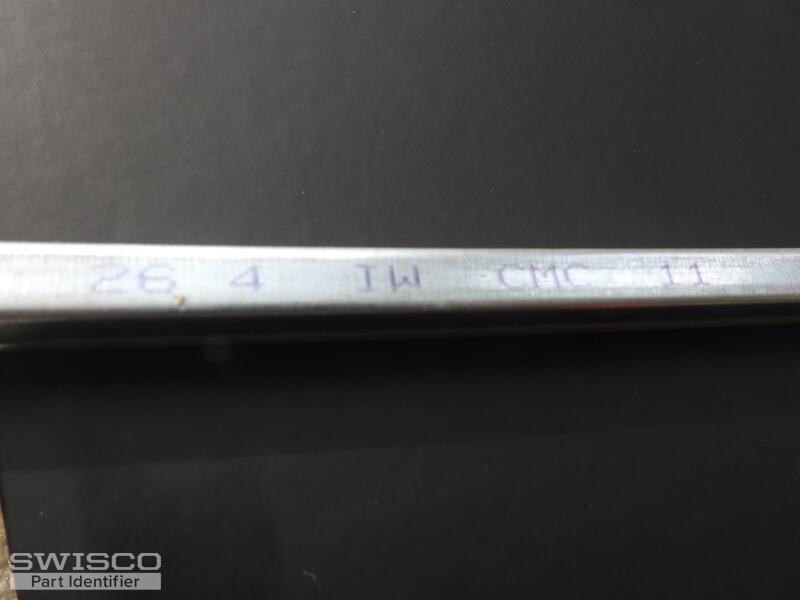

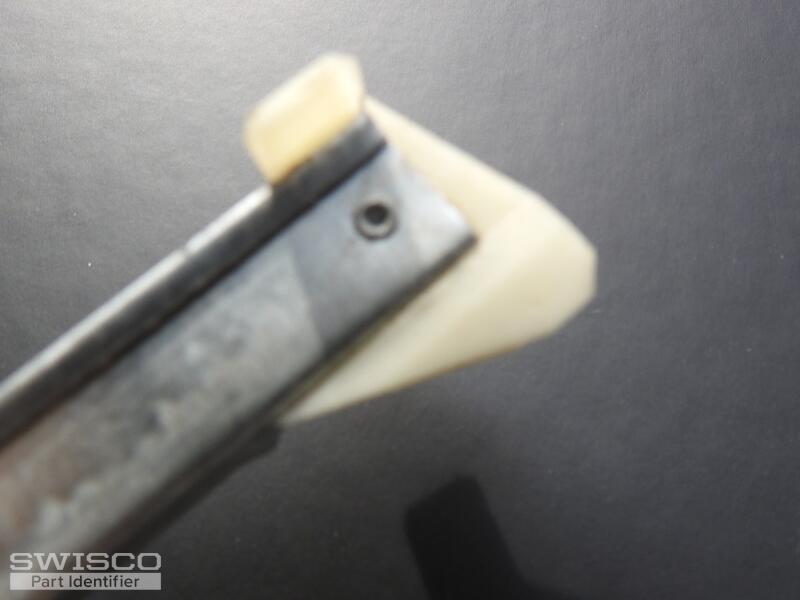

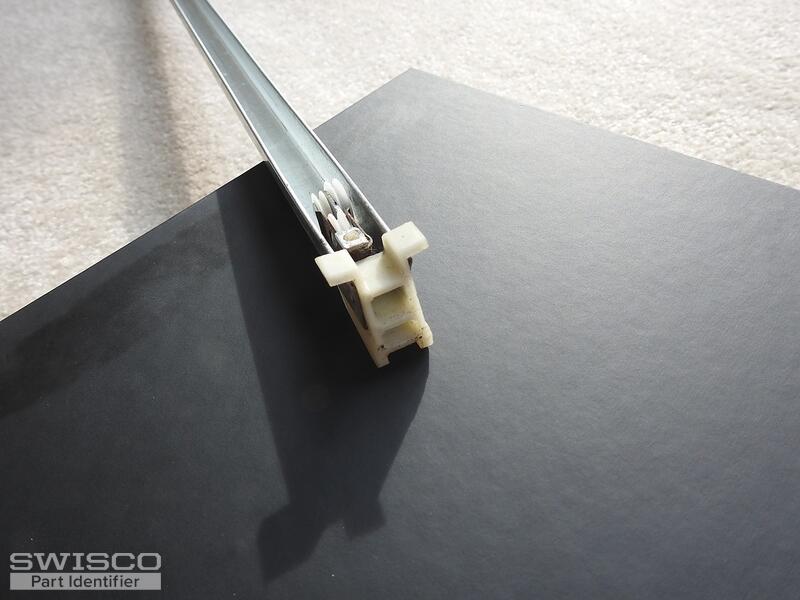

PLEASE VERIFY THAT THE PICTURES ATTACHED LOOK LIKE YOUR SERIES 385 MODEL. ONE DIFFERENCE I NOTED WAS THAT MY BALANCE DOEW NOT HAVE THE HOLES ON THE SIDE OF THE METAL THAT YOUR PART SHOWS. PLEASE LET ME KNOW. THANK YOU.
5 user uploaded images
3 Replies
Quick Learner from KILDEER IL
May 17, 2018 6:54 pm
PLEASE SEE OTHER POST DESCRIPTION. THIS WAS SENT WITH ADDITIONAL PICTURES. I AM TRYING TO MATCH THIS UP WITH YOUR SERIES 385 MODEL.
Casey from SWISCO
May 18, 2018 10:23 am
With this combination of attachments, you could have either a S380 or S385 channel balance. You need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to weigh your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight.
Thank you and let us know if you have any other questions or concerns.
Comparison of 15-004 and 15-005
