26 EW CMC

A handy person from Colorado says:
My window is narrow at 22" and 58" high with no tilt. I measured the length of just the metal channel at 27". You can see the metal clip in photo of the Shoe View 02.

The markings are not clear to me so I included a picture of that also.
Thumbnail of the uploaded file named Shoe View 02.jpg
Thumbnail of the uploaded file named Shoe Side View.jpg
Thumbnail of the uploaded file named Top Side View.jpg

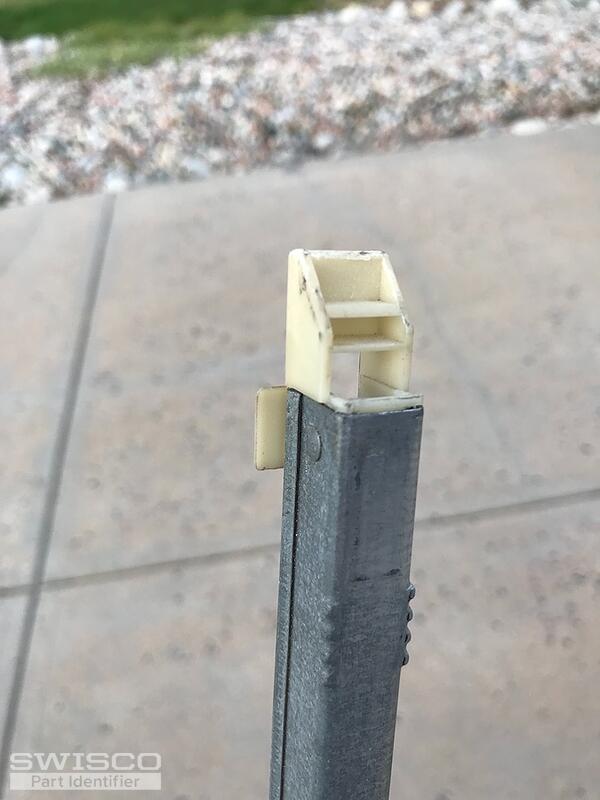

Thumbnail of the uploaded file named Top View 03.jpg

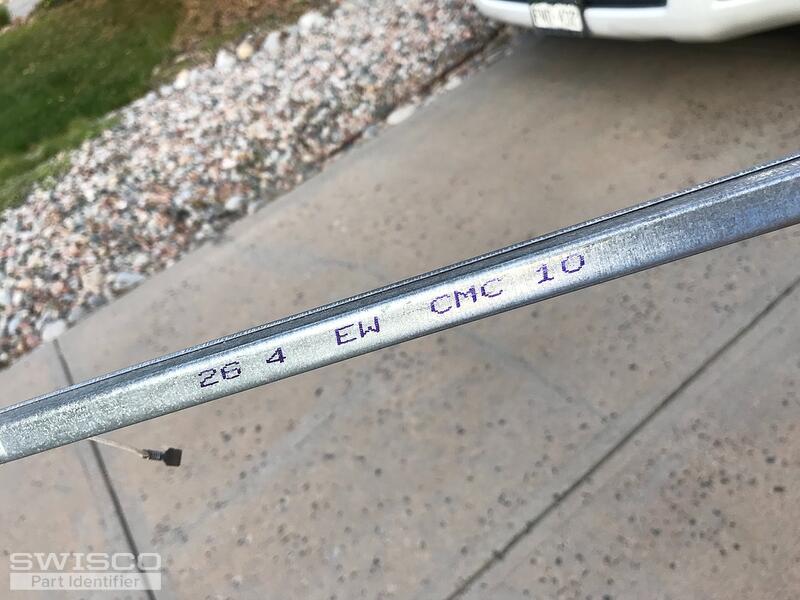

Thumbnail of the uploaded file named Markings.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2640.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
