CHANNEL BALANCES AND HARDWARE

Question

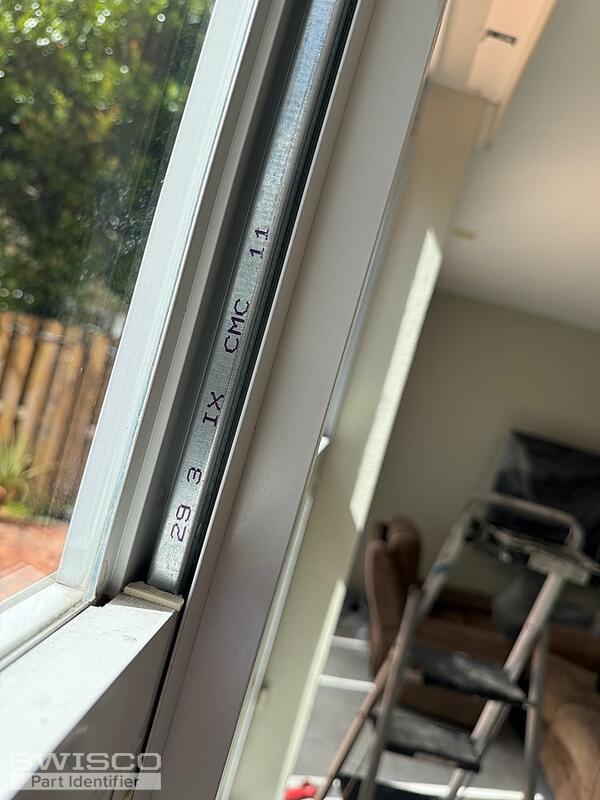

NEED CHANNEL BALANCES THAT SHOWS A DESCRIPCION BUT I WAS UNABLE TO FIND THE PART NUMBER.
ALSO NEED THE TOP SASH GUIDE PN 18-188 AND A SMALL CLIP BELOW ON THE PICTURE.

Jasmine · Accepted Answer

Thanks for writing in! The part of the guide I can see, doesn't appear to be a match for the 18-188 Top Sash Guide. The shape of the bottom installation hole is different from ours.

Are you certain the dimensions are a match? If not, I'll need to see a photo of an undamaged guide to confirm the correct replacement.

The balances can be replaced with either the S380-30 or the S385-30. To determine which series is a match, you'll need to confirm the depth of the shoe.

Our 2930 stamp will support a sash weighing 16 to 23lbs.

Comparison of the S378, S380 and S385 balance shoes.
