CMC 27" Non-Tilt Channel Balance Stamped 26-5

Question

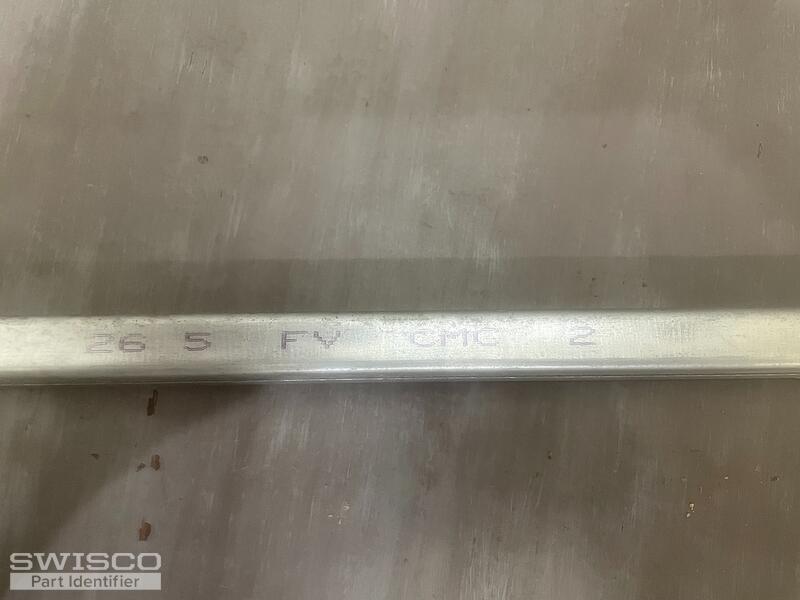

IMG 5178 shows the lableing on the Channel Balance. I don't understand the series number or where to find them. If you can help me with the series numbers it would be helpful.

Jasmine · Accepted Answer

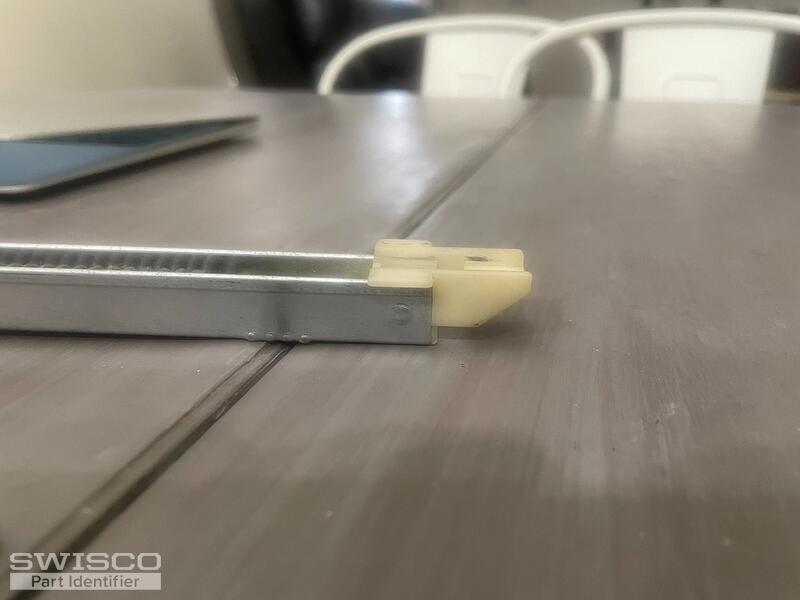

Thanks for posting! Your channel balance appears to be either the S380-27 with a 1" shoe or the S385-27 with a 1-3/32" shoe. Although, there is a chance that it could measure 7/8". If so, please let me know as these will need to be a custom assembly.

To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe.

You'll need to select the 2650 stamp option.

Comparison of the S378, S380 and S385 balance shoes.
