COIL BALANCE SHOE & PIVOT

Quick Learner from Minnesota

Feb 21, 2017 4:31 pm

Hello,
Thank you for assisting me. The metal cams and pivots have been broken on my windows. I'm don't know the window manufacturer because there are no markings on the windows or hardware, but I'm hoping that for the COIL BALANCE SHOE, SLATE BLUE
Product Code: 15-175 will work as a replacement. I haven't found a replacement for the pivot. I need about 10 of each.

Thanks,
Fred

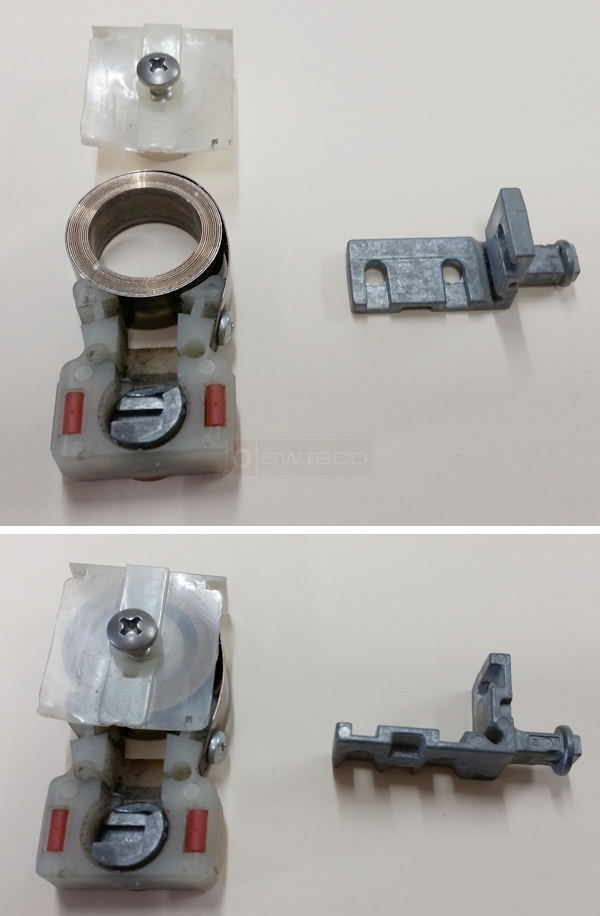

User submitted photos of window hardware.

5 Replies

Paul from SWISCO

Feb 24, 2017 3:10 pm

Hey, Fred. This pivot is a bit weird. Can you give us your dimensions?

Quick Learner from Monticello, MN

Feb 25, 2017 11:19 am

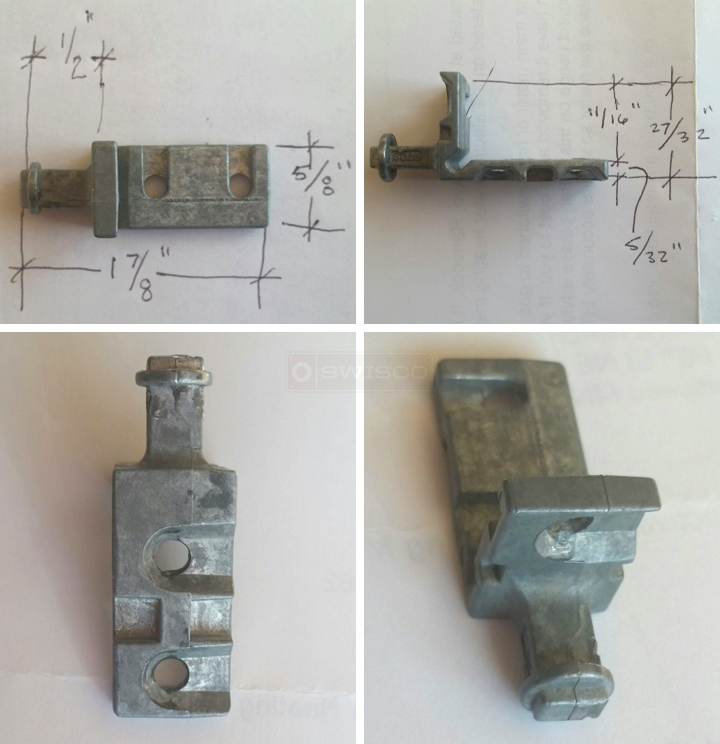

I have included additional photos with dimensions, Thanks Fred

Paul from SWISCO

Mar 7, 2017 9:37 am

Thank you again for your patience. Can you confirm the width of your pivot bar? I see you have 5/8", but we haven't been able to find anything in this size. However, we did find one that was similar, but at 3/4" wide.

Quick Learner from Monticello, MN

Mar 9, 2017 1:44 pm

Hi Paul, Thank you for your efforts. I haven't been able to find a 5/8" pivot bar either. It appears that I will have to grind down the 3/4" pivot bar and shorten the pivot to 1/2".

Let me know if you find a better alternative.
Fred
