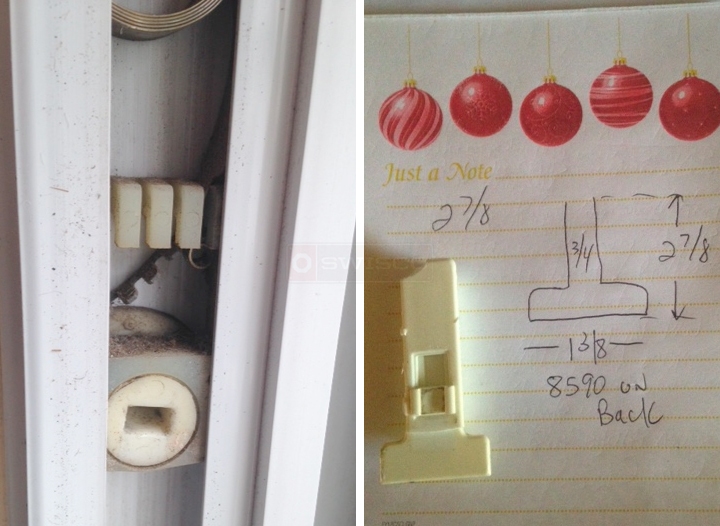

I need 3 sets if CV BAL and corresponding shoes, fir a 14 lb sash. pictures to follow. I also need 5 sets of insert tilt latches. I recently purchased some but they were too small. The ones I purchased were 26-266 and 26-267. These were smaller than I needed. The size I need is 2 7/7 long. The "T" in front us 1 3/8 wide and the shaft is 3/4 wide. I will send pics of each. Thank you.
|
Paul from SWISCO responded:
March 27, 2018
Your picture appears to match our 15-140 pivot shoe, which is 1-1/4" wide by 17/32" thick. For a 14 pound sash, I would recommend our S150-7 coil spring. Finally, see our 15-143 coil brushing, 15-144 coil brushing cap, and 15-145 support barrel if you need them. As for the tilt latch, take a look at our 26-408. There are videos listed on this page as well if you need any guidance while completing this project. |
