Cabinet arm

Home Owner from Louisiana
May 15, 2024 11:00 pm

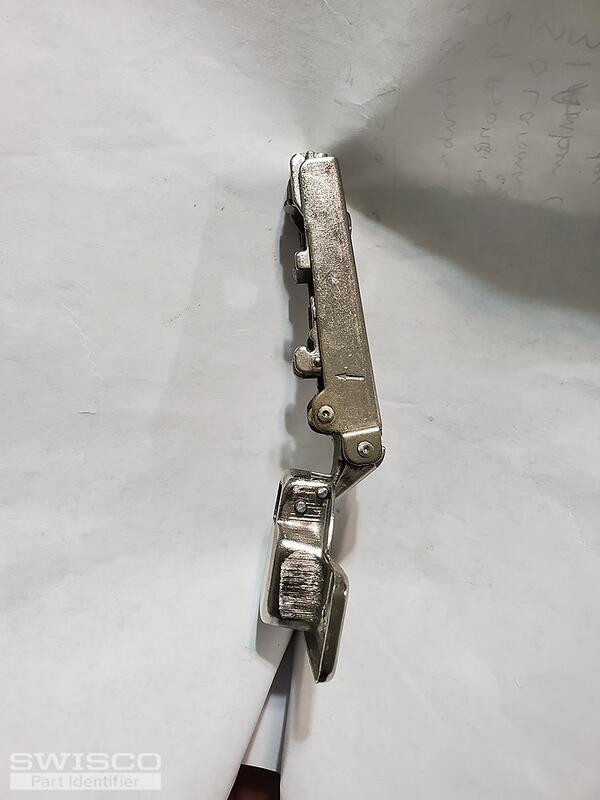

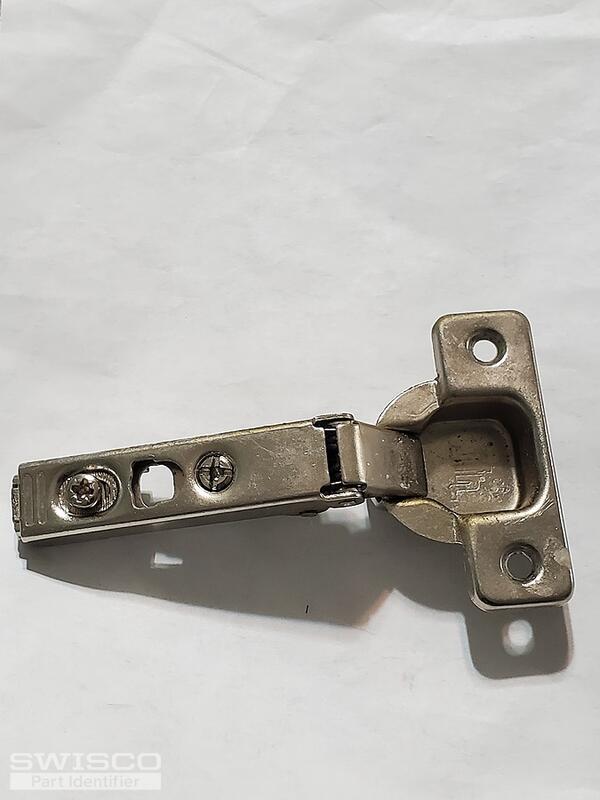

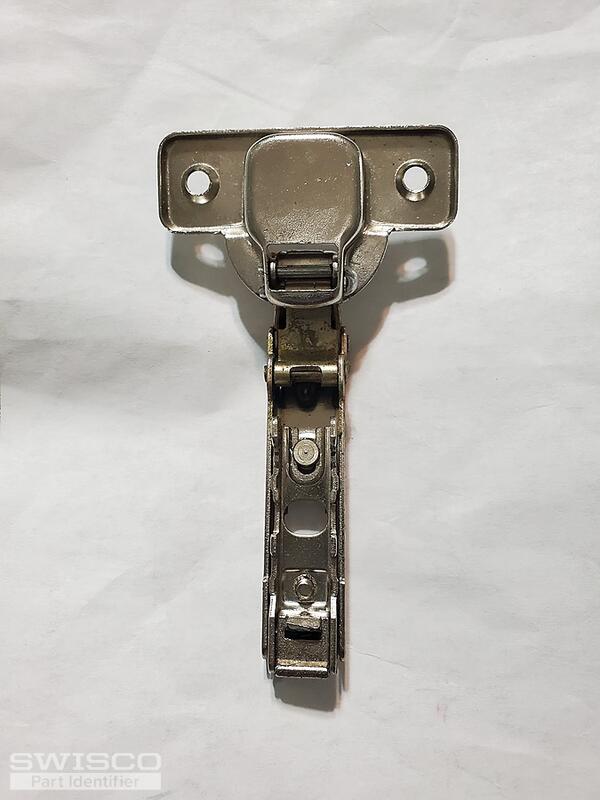

jfh brand no numbers on the inside, It's not self close. I have to replace several of them.
17158277531938075085006531106971 1715827910460405015434452012013 17158281687944638634086754010548
3 user uploaded images
3 Replies
+ Add a Comment
Jasmine
Jasmine from SWISCO
May 17, 2024 12:47 pm
SWISCO
EXPERT

Thanks for reaching out to us! Your cabinet hinge looks similar in design to our 32-340A Full Overlay Soft-Closing Concealed Hinge. Although, yours appears to be missing the installation bracket. To determine if this might work as a suitable replacement, take a look over the dimensions and compare them to your hardware.

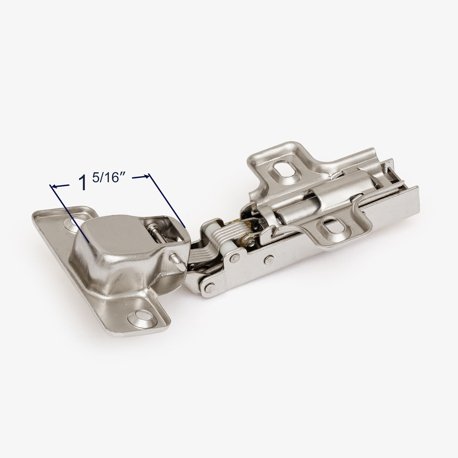

Dimensions for 32-340A
Dimensions for 32-340A

Rear view of 32-340A
Rear view of 32-340A

Home Owner from Louisiana
May 19, 2024 2:33 pm

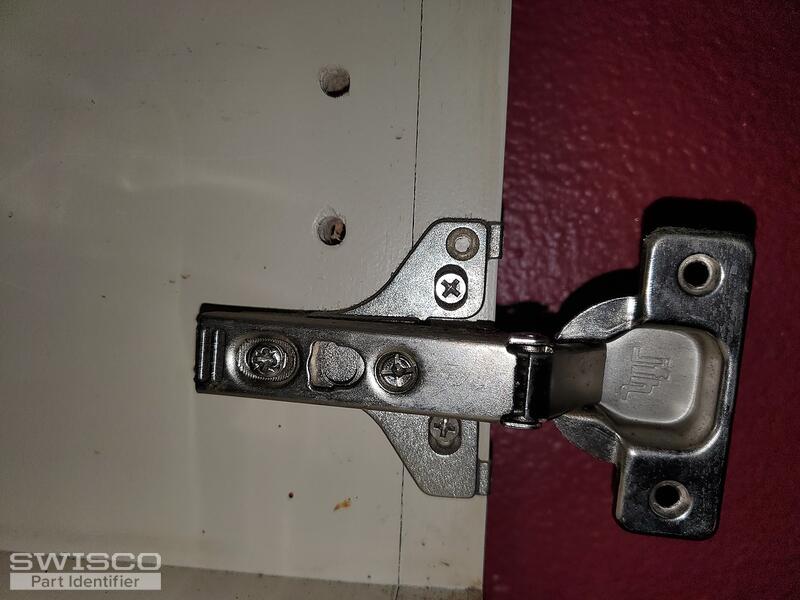

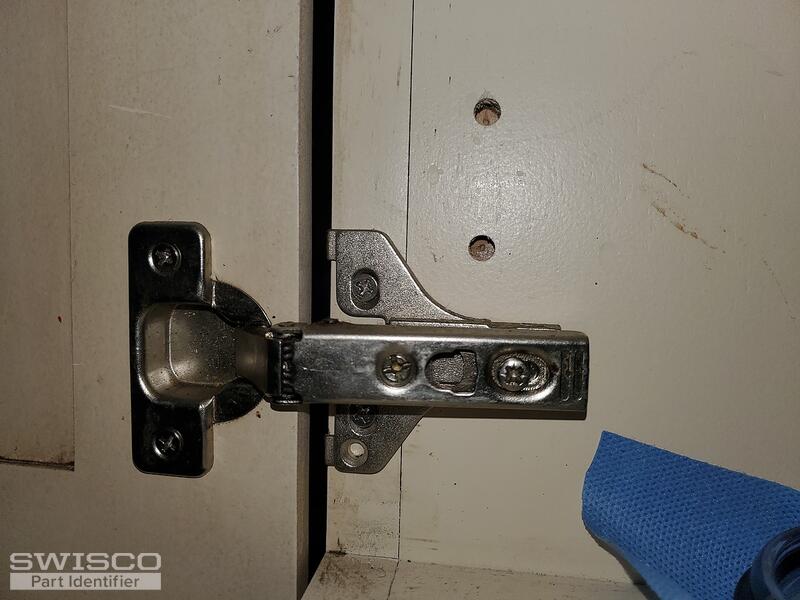

Hello it's more like the 2 7/16" I added another picture. The 2nd picture is one withr the door attached.
17161433353611220894372355743846 17161434656807974853695746914998
2 user uploaded images
Jasmine
Jasmine from SWISCO
May 20, 2024 9:04 am
SWISCO
EXPERT

Thanks for the photos. Take a look at the 32-349 Soft Close Concealed Hinge Set. Carefully review and compare the dimensions and design to see if this set might be a better fit for your hinge repair.

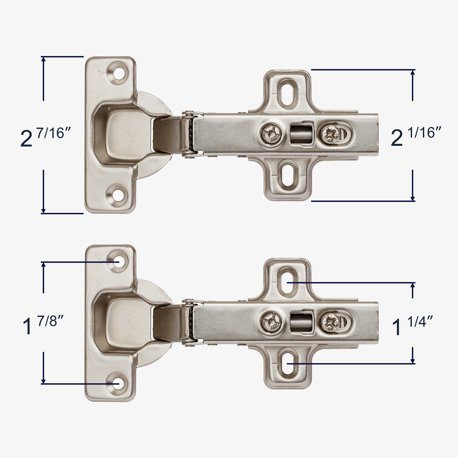

Dimensions for 32-349
Dimensions for 32-349
