Quick Learner from Chicago, IL
Mar 2, 2019 2:22 pm
Hello,

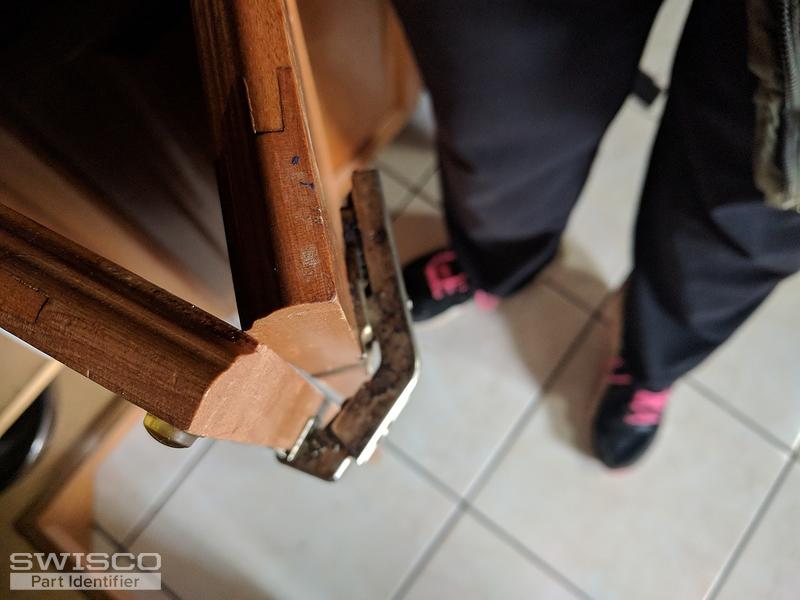

I'm looking for a replacement cabinet door hinge. I believe this is called a bi-fold hinge. When closed, the cabinet door is at 90 degree. The "installed above" photo shows how the door opens.

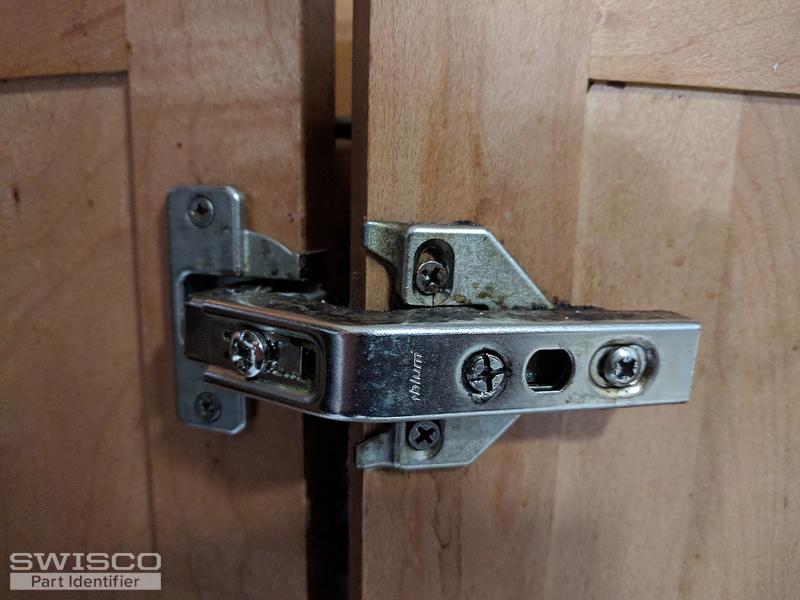

I think this is actually made of a few parts that go together. I only see the name Blum on the largest piece, but I believe they all came together.
Largest piece is part number 78M810 -02.01.
A smaller piece that slides is 175L660 -01.22 (and also has a 4 far to the right of both those numbers). Part of this is broken off.
Another smaller piece that kind of flips up and down is part 78.850 -01.01
When laid flat, as in "removed 1", it measures 4 inches.
The slide-y part (175L660 -01.22) is 2 inches across.
The widest point (shown in "removed 2", part 78.850 -01.01) is 2.5 inches across.
I hope you can help me. I have tried several replacements but all failed, and my local Home Depot/Lowes were not able to help. If you need any more information, please let me know.
Thank you,
I'm looking for a replacement cabinet door hinge. I believe this is called a bi-fold hinge. When closed, the cabinet door is at 90 degree. The "installed above" photo shows how the door opens.
I think this is actually made of a few parts that go together. I only see the name Blum on the largest piece, but I believe they all came together.
Largest piece is part number 78M810 -02.01.
A smaller piece that slides is 175L660 -01.22 (and also has a 4 far to the right of both those numbers). Part of this is broken off.
Another smaller piece that kind of flips up and down is part 78.850 -01.01
When laid flat, as in "removed 1", it measures 4 inches.
The slide-y part (175L660 -01.22) is 2 inches across.
The widest point (shown in "removed 2", part 78.850 -01.01) is 2.5 inches across.
I hope you can help me. I have tried several replacements but all failed, and my local Home Depot/Lowes were not able to help. If you need any more information, please let me know.
Thank you,
5 user uploaded images
3 Replies
