Cabinet drawer bracket replacement part

Home Owner from Michigan

Jun 5, 2019 9:24 pm

Hello

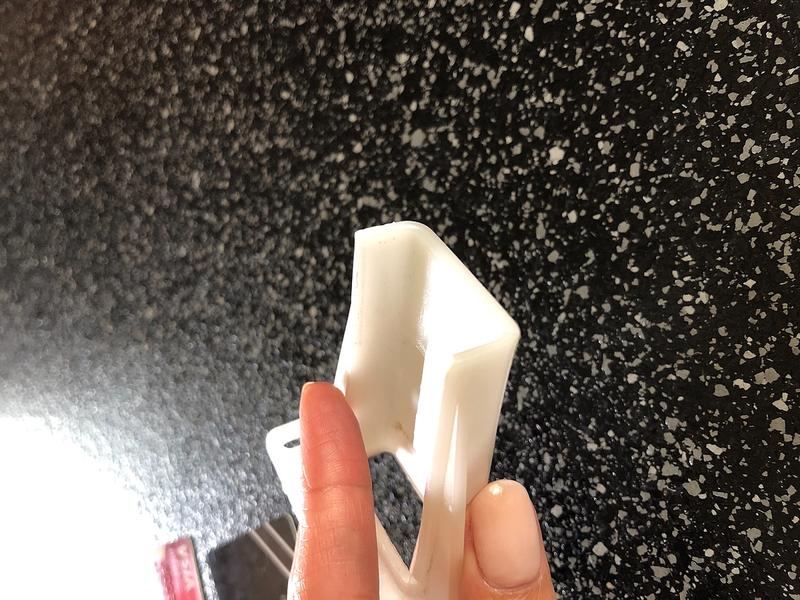

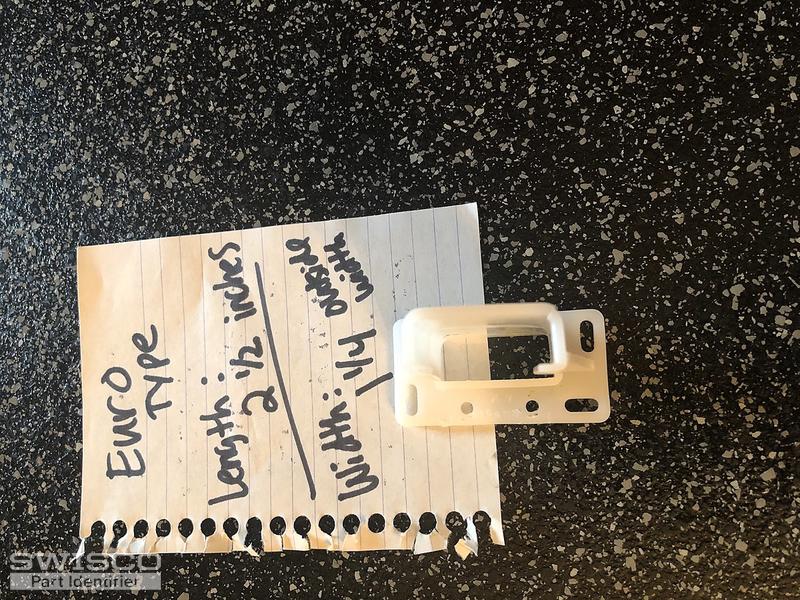

I am Having difficulty finding the replacement bracket from my cabinets that were installed in 1995 it is a euro type the length is 2 1/2 inches and the width is 1 1/4 outside with in 1 1/8 inside width. Do you have this part? Thank you so much for your help.

Dina

4 user uploaded images

6 Replies

Bob from SWISCO

Jun 6, 2019 10:39 am

Hi Dina. See our 32-014. Look it over and see what you think.

Home Owner from Michigan

Jun 6, 2019 11:58 am

Hi bob
Thank you for your reply on the 32-014 the opening is 7/8 the measurement I need is 1 1/4 inches
Do you have any like this? Thank you so much

1 user uploaded image

Bob from SWISCO

Jun 6, 2019 1:04 pm

Hi Dina. Ah, sorry I missed that. Unfortunately we don't carry a socket with a gap that big. There may be another option, though it's up to you whether you want to consider it. Could you show us a picture of the track? I want to see if it's possible to perhaps replace the track and socket together with a size that is a bit more standard.

Home Owner from Michigan

Jun 6, 2019 2:12 pm

Hi bob
Thank you again for your help. Here is a photo of the tracks.
Dina

2 user uploaded images

Bob from SWISCO

Jun 6, 2019 2:34 pm

Hi Dina. OK, I think you could consider switching to tracks like our 32-056 or the larger-sized versions I've associated on this page. You then could use our 32-018 Drawer Slide Sockets instead. Let me know what you think.
