Cabinet drawer rail and broken end plastic

Quick Learner from Stickney, Illinois

Dec 30, 2018 11:24 am

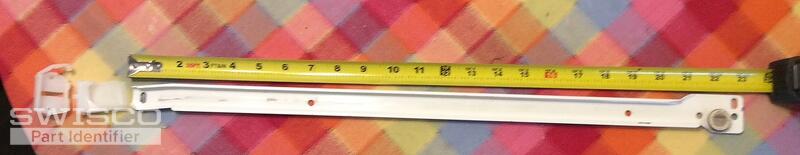

I've been trying to find these plastic pieces for my kitchen cabinet drawers for years and I've never found anything close in any of the local hardware stores. The rail that's attached inside the cabinet is 23" long. The rail is screwed into the cabinet on the front end and the back end is a peg type plastic that's snapped in. The end of the rail has a plastic piece that fits into the other piece that's snapped into the back of the cabinet. I found a piece you have that's the closets I've found but it's still not exactly what I need. Do you have anything like the pictures?
Thank you

4 user uploaded images

6 Replies

Bob from SWISCO

Dec 31, 2018 10:31 am

Thanks for contacting SWISCO. Take a look at our 32-119. It should function well as a replacement for your old part, and has for other customers. Keep in mind that you will need to drill holes into the back of the cabinet to install it.

Quick Learner from Stickney Illinois

Dec 31, 2018 2:01 pm

Good morning,
The 32-119 will replace the two piece end? The type I have actually has the one piece that is a peg type and attaches to the back of the cabinet by just pushing it in to the back wall. The other piece fits on the rail and goes into a slot on the back wall plastic piece. The holes for the peg piece will probably have to be filled in so this new one can be screwed into the back wall. I tried to add additional pictures I've taken this morning but it's not letting me add photos. I've purchased a set similar to the 32-119 last time I went to the local Home Depot. That one is 3" long front to back and 2 1/2" top to bottom at the base of it. That one didn't work because it was too long but I forgot what the other reason was. The original pieces come out to 1 7/8" long. The 32-119 shows it measures 2 1/4" making it 5/8" longer than the original. I don't know if that matters.

Tom from SWISCO

Dec 31, 2018 2:33 pm

I feel pretty confident that the 32-119 Bob recommended will work. It's one piece instead of two pieces, but the opening that accepts the track is the same size. That is the most important detail. You can work around everything else.

I'm not sure what socket you purchased before, but I've had about a million customers with your old Merillat brand socket use our 32-119 and got it to work successfully. The only hard part is drilling new holes for it to install using screws.

Quick Learner from Stickney Illinois

Jan 2, 2019 7:24 am

Good morning,
I just wanted to double check and based on the measurements in the product description on your website I'm positive it's the one we need. I only wish I would have found your company a couple years ago. I'm going to order enough to replace all the old ones which is only for two large drawers.
Thanks again your company is a lifesaver!!

Bob from SWISCO

Jan 2, 2019 9:56 am

Great! We are very happy to be of assistance. Feel free to contact us with any further questions. Thanks for considering us, and happy new year.
