Cabinet Hinge Replacement
Home Owner from Douglasville, GA
Nov 9, 2013 3:08 pm

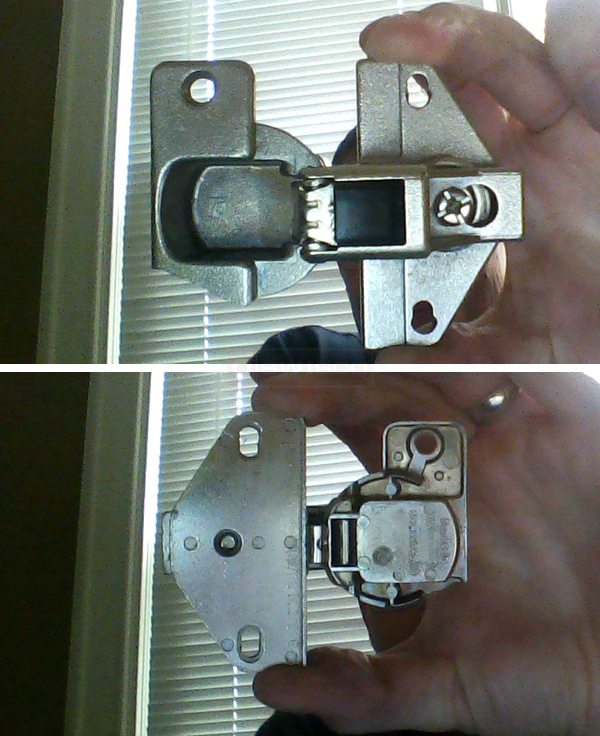

This piece is attached to the cabinet door and is broken. The adjoining part is 348.220.50/00, which seems to be fine. Thanks for any helping finding this part. Cabinet door is 28 and 1/4 " tall by 18" wide.
6 Replies
Paul from SWISCO
Nov 11, 2013 12:32 pm
Thank you for posting. I don't think we have an exact match, but check out our 32-340 and see if you could maybe use this as a replacement.
Home Owner from Miami
May 5, 2015 5:02 pm
I am looking for that exact same hinge. I found this posting by googling the numbers on my hinge. Was anyone able to locate a proper replacement hinge?
Tom from SWISCO
May 6, 2015 9:45 am
I believe the homeowner from Douglasville, GA decided to give the 32-340 a try as a replacement, but we have not had a follow-up in regards to whether or not it was successful.
Home Owner from Miami
May 17, 2015 7:30 pm
Hi Tom,
This is the homeowner from Miami who wrote the May 5th post.
I purchased two packages of the 32-340 based on your suggestion, but those did not work. The 32-340 are too long as explained below.

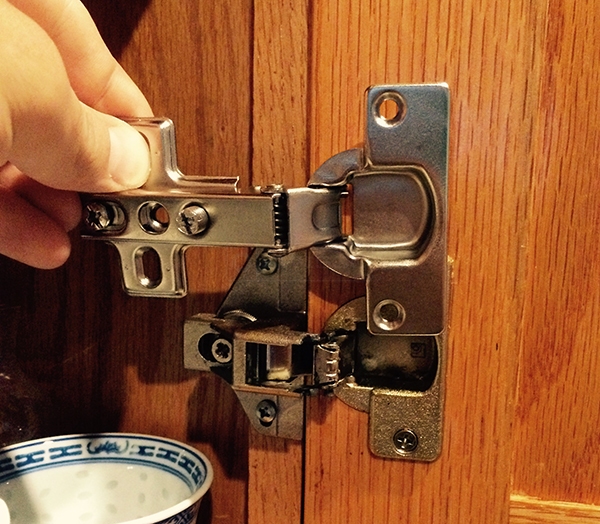

There are two parts of the hinge. One part connects to the cabinet (let's call this Part A), the other part connects to the cabinet door (let's call this Part B). The distance between the screws on Part A and Part B on the hinge that I am looking for ("652.220...") is 1.75 inches. By comparison, the distance between the screws on Part A and Part B of the 32-340 hinge is 2.75 inches (see attached picture showing how much larger the 32-340 hinge is).
If you would like a further explanation, please email me for my telephone.
This is the homeowner from Miami who wrote the May 5th post.
I purchased two packages of the 32-340 based on your suggestion, but those did not work. The 32-340 are too long as explained below.
There are two parts of the hinge. One part connects to the cabinet (let's call this Part A), the other part connects to the cabinet door (let's call this Part B). The distance between the screws on Part A and Part B on the hinge that I am looking for ("652.220...") is 1.75 inches. By comparison, the distance between the screws on Part A and Part B of the 32-340 hinge is 2.75 inches (see attached picture showing how much larger the 32-340 hinge is).
If you would like a further explanation, please email me for my telephone.
Dave Sr. from SWISCO
May 19, 2015 12:36 pm
Sorry to hear it didn't work out. Take a look at our 32-343 hinge instead. This could possibly work on your cabinet, though again we can't be sure. The trouble is, these Euro hinges seem to be a problem. The manufacturer changes the designs every so often and it's difficult to keep up with possible replacements.
