Cabinet hinge replacements

Question

I need to replace hinges on some of my cabinets. I have not been able to find the correct hinge(s). Where can I get this hinge? It has 2 Patent No.s #
5,233,726
6,226,835

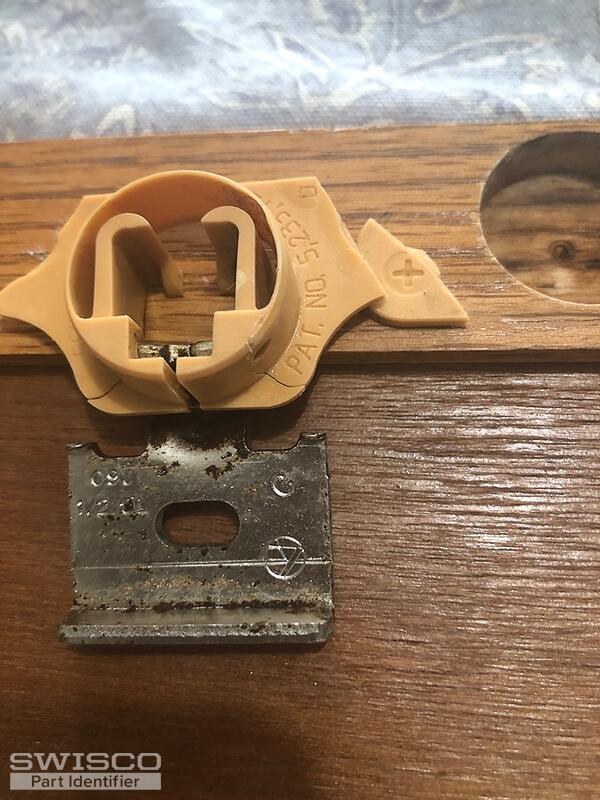

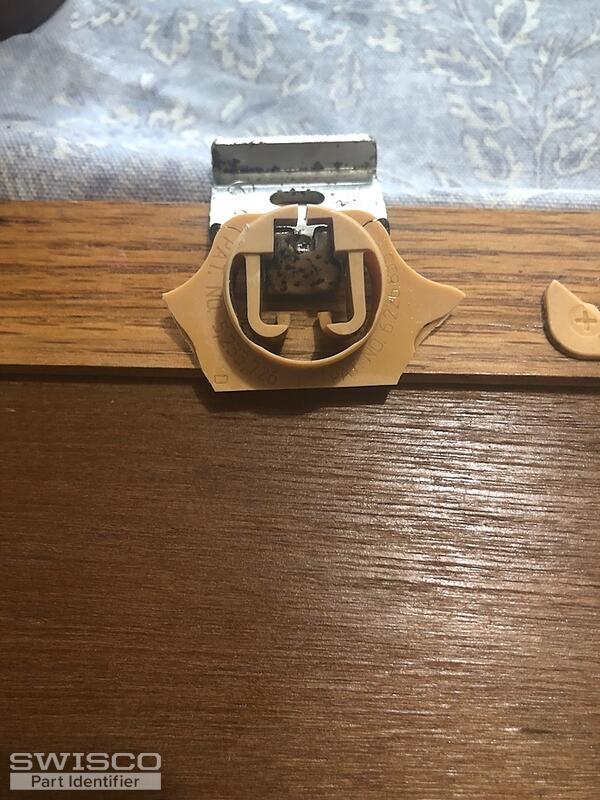

Can someone please tell me where to find this part so I can repair my cabinets?! Thank You. I will include a picture of the hinge.

Dave Sr. · Accepted Answer

Hello,

It's not clear how your hinges mount to the main frame of the cabinet but take at the 32-353 "edge mount" hinge to get started. We'll include an image below that shows how it is mounted to the cabinet. We can't make any guarantees but see if this might work for your application. Thank you.

View of 32-353 in the closed position

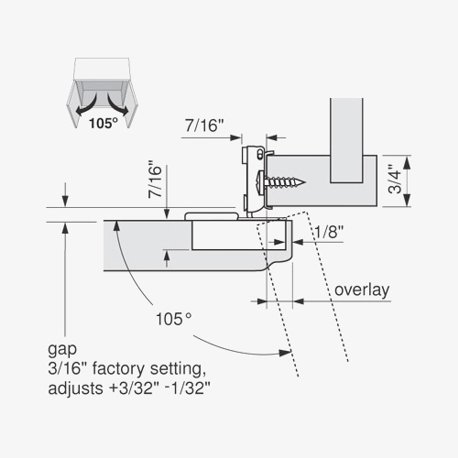

Installation diagram of 32-353
