Cabinet rail set needed.

Quick Learner

Sep 30, 2024 11:24 am

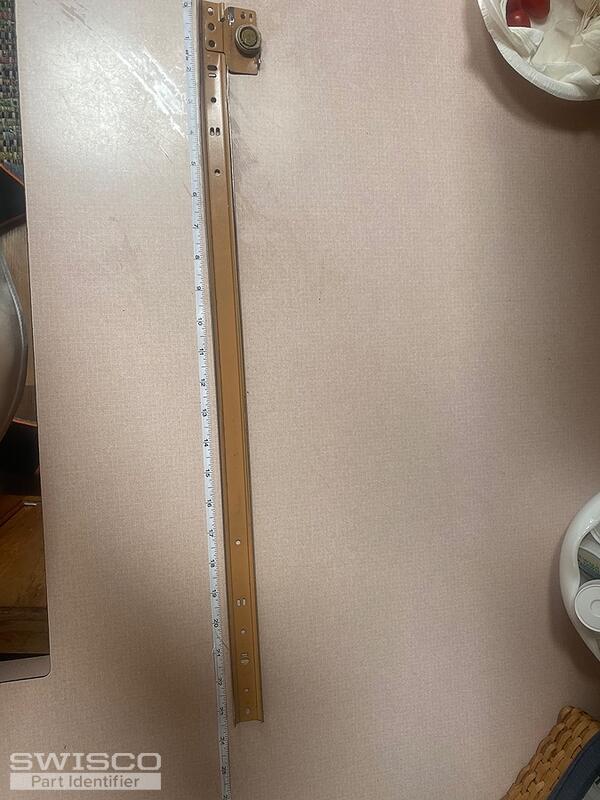

Can't seem to locate these with numbers shown. Need replacement rails for this cabinet hardware dating back to 89 or 90 don't know the manufacturer . there is a model number on the rails. All are shown in pics. look like they're 23 and 7/16 long . Thanks in advance.

4 user uploaded images

4 Replies

Jasmine from SWISCO

Oct 3, 2024 1:41 pm

Thanks for your post! I do not believe this exact drawer slide is available any longer, especially given its age. Our 32-062 23-5/8" Self-Closing Drawer Slide Pair could work as a suitable replacement.

Keep in mind, this may not be compatible with the rear drawer bracket you have. If you are unsure, I'll need to see a photo of that piece of hardware as well.

Quick Learner from Barnegat, NJ

Oct 4, 2024 9:23 am

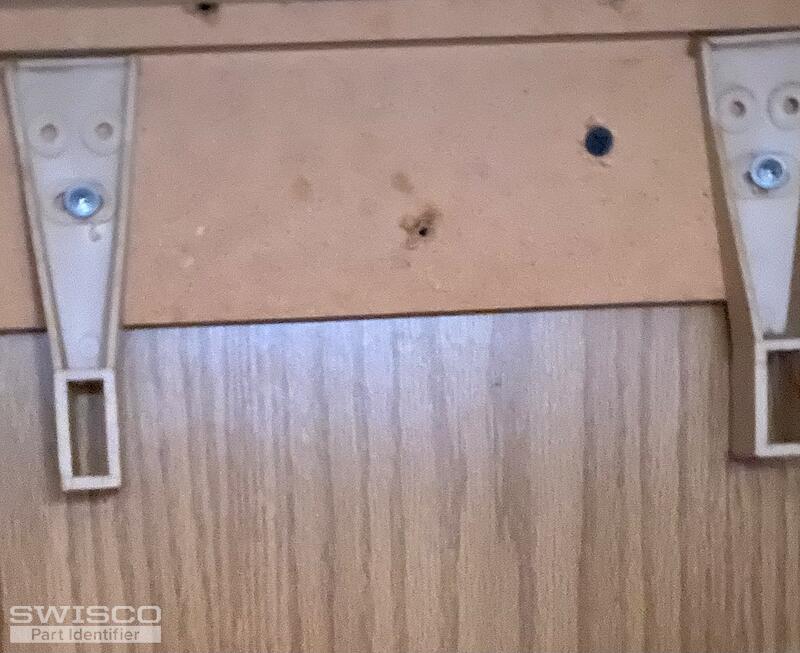

Thank you! Here is an image as requested to see if your replacement part will work in this application or not!. Thank you in advance! John

1 user uploaded image

Jasmine from SWISCO

Oct 7, 2024 1:56 pm

Hi John,

Unfortunately we cannot confirm if your rear draw brackets will accept the 32-062 drawer slide kit. The track that goes into the rear bracket is approximately 5/16" wide and 7/8" tall. Take a look at the 32-139 rear bracket. This is the bracket recommended for the 32-062 track. See if this style would be able to be adapted to your cabinet and let us know if you have any additional questions.
