Caldwell 17" balance 16-3 KR

A handy person from Fort Mohave, AZ 86426 says:
I need 2 of these balance bars.

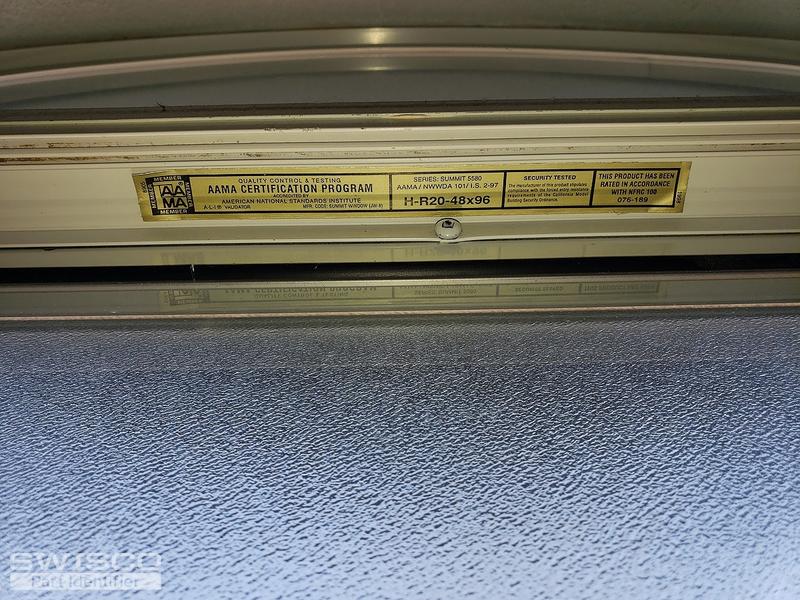

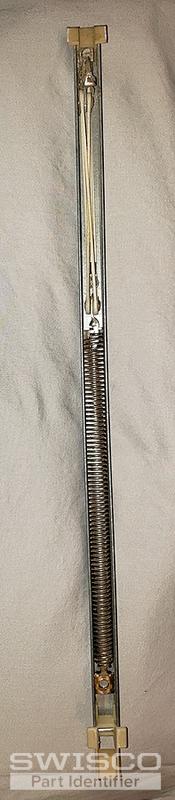

Thumbnail of the uploaded file named 20200817_150539.jpg
Thumbnail of the uploaded file named 20200817_161159.jpg
Thumbnail of the uploaded file named 20200817_161034.jpg
Thumbnail of the uploaded file named 20200817_160955.jpg
Thumbnail of the uploaded file named 20200817_123754.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-17 or S385-17 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a 1630 spring strength option for your replacement balances.

Thank you and let us know if you have any other questions or concerns.
