Caldwell 22 3

A home owner from Seattle says:
Hello - all I could find on the part was the marking Caldwell 22 3. Otherwise, the piece is 23" and 1/2" wide. Thanks for your help!
Thumbnail of the uploaded file named 4.jpg
Thumbnail of the uploaded file named 4.jpg
Thumbnail of the uploaded file named 6.jpg

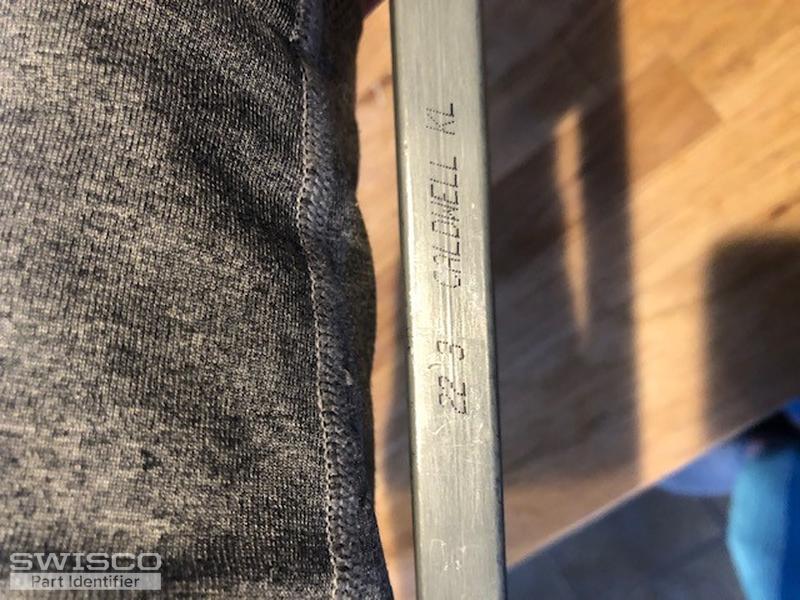

Thumbnail of the uploaded file named 7.jpg

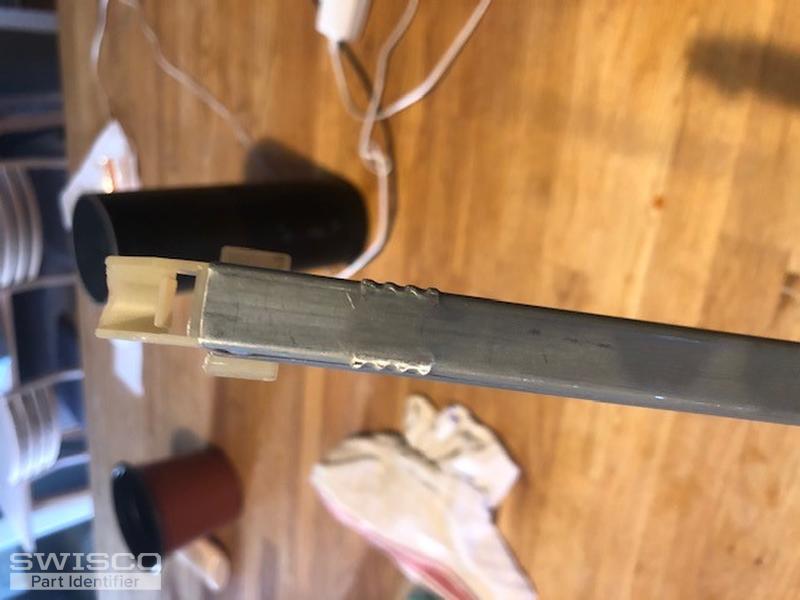

Thumbnail of the uploaded file named 8.jpg
Profile picture of Tom
Tom from SWISCO responded:

We can probably replace this, but your photos only show the top nylon fitting. Can you show me a picture of the bottom nylon fitting, too? Can you also tell me its depth?

A home owner from Seattle says:
Sorry about that! It limited the amount of photos I could post. Here are some from the bottom. Depth is 1/2"

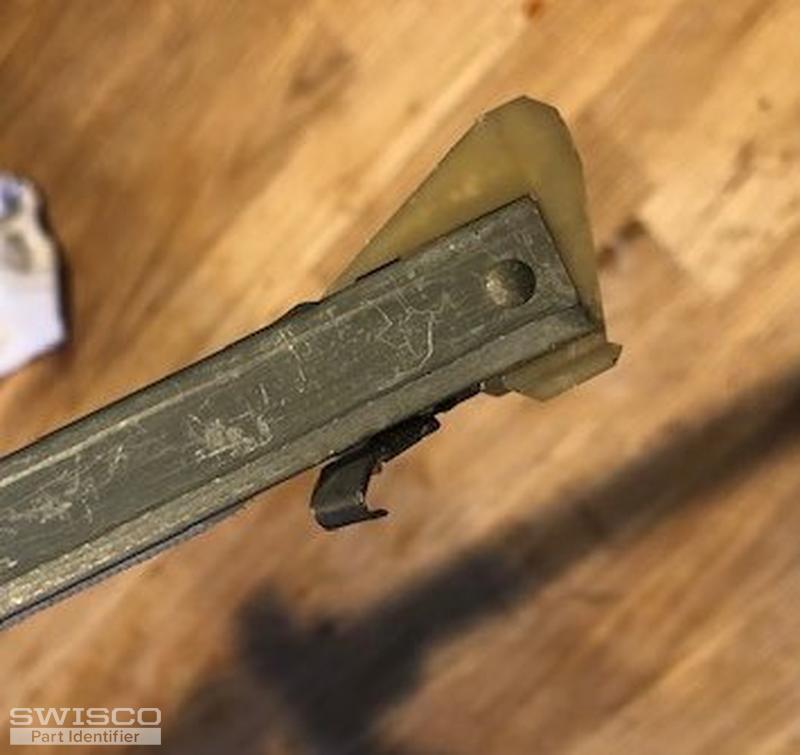

Thumbnail of the uploaded file named 1.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for these. This looks like either an S380-23 or S385-23. Now, the only difference between these two balances is the depth of the bottom nylon shoe. The depth can be thought of as the 'heel-to-toe' measurement, at the widest point just beneath and perpendicular to where the metal channel ends. I am quite certain this can't be 1/2"; it is probably either 1" or 1-3/32". Check this to confirm. You'll need a stamp option of 2230.

A home owner from Seattle says:
Perfect - it looks like it'll be 1-3/32", so I'll go with the S385-23, with stamp option of 2230. Thank you for your help!
Profile picture of Bob
Bob from SWISCO responded:

Great! Let me know if you need anything else, and thanks for your business; we appreciate it.
