Caldwell 23 3 FK stamped balancer with winged ends

Start a new Discussion

Home Owner from Lebanon Oregon

Jun 21, 2020 7:45 pm

What is my orderable part number?

Can you send install instruction pics?

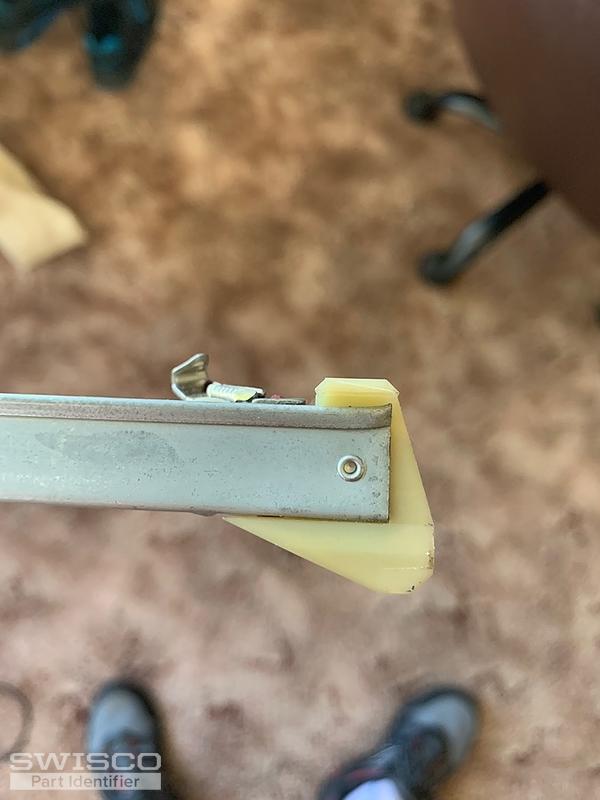

4 user uploaded images

4 Replies

Tom from SWISCO

Jun 24, 2020 2:15 pm

Based on your photos, you have either our S380-24 or S385-24. The only difference between them is the size of the bottom fitting, which is indicated on their respective store pages. You'll need to measure your bottom fitting to confirm which one is best.

As for installation instructions, I will provide a video tutorial at the end of this post.

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from Lebanon Oregon

Jun 24, 2020 6:04 pm

As to the main part number, It's a S385-24 based on that 1-3/32 dimension.

What about the "optional" weight callout'.
Is the "3" requiring a specific option or we just order tge standard model without an option?

This is only a small (~24x24) vertical resin frame type window.

Tom from SWISCO

Jun 25, 2020 9:27 am

You can't order a balance without choosing an option. That determines the calibration of the spring.

Since your old stamp reads "23 3," you want a 2430 option. You can also weigh your sash to confirm this is correct. We have a chart on the S385-24 store page that tells you how much weight each option supports.
