Caldwell 26 4 FP Channel Balance Replacement

Question

I need to replace both channel balances, OEM part number Caldwell 26 4 FP

Casey · Accepted Answer

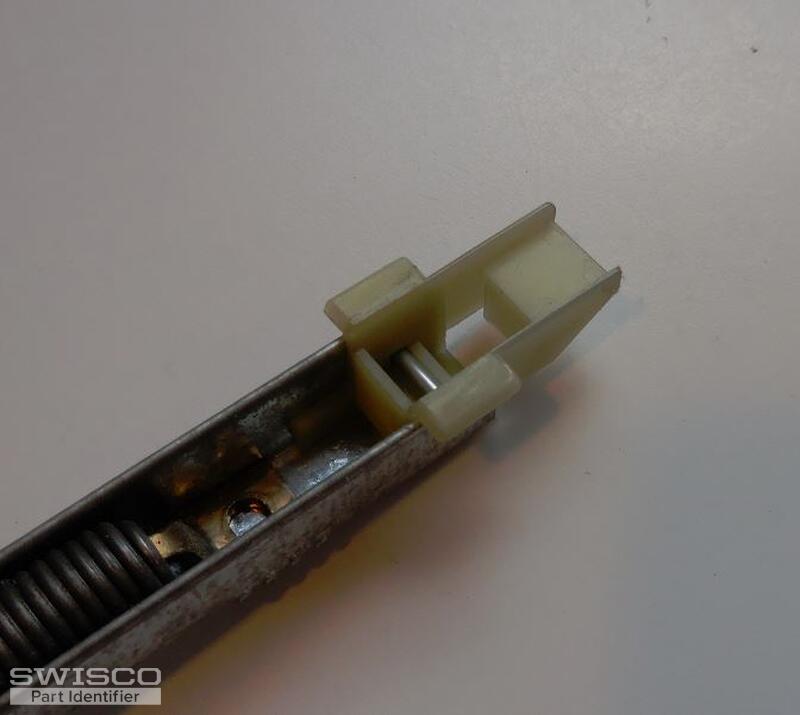

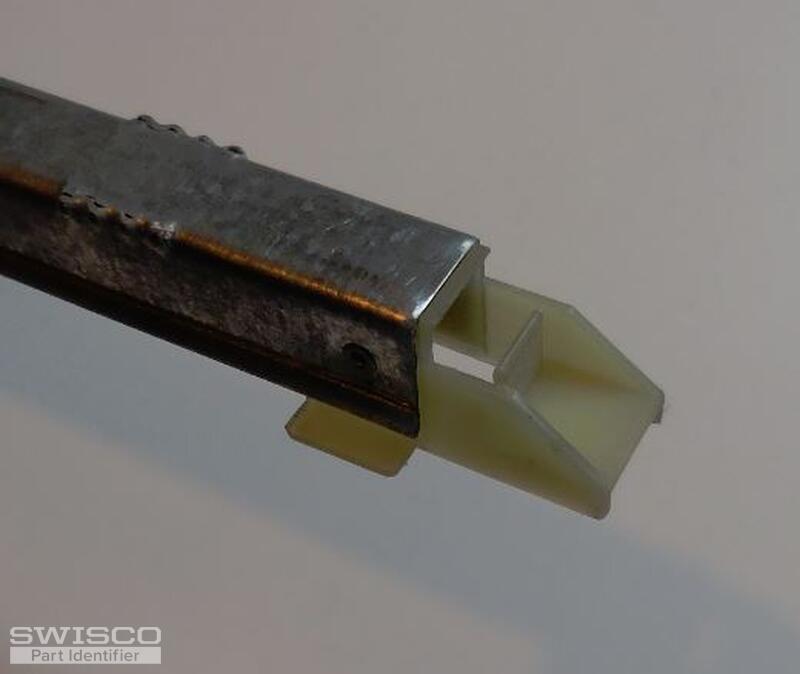

Thank you for submitting your photos. It looks like you have either our S380-27 or S385-27 channel balance.The difference between the Series 380 and Series 385 balance lies in the shoe. The Series 385 balance has the 15-004 shoe which is slightly larger from front to back, as illustrated.

Comparison of the S380 and S385 balance shoes.

Once you have determined which balance series you have, you'll want to select spring strength option 2640. Check out our installation videos and let us know if you have any questions.
