Caldwell 29 3 KS

A handy person from Colorado Springs, CO says:
September 16, 2022

Hi, the cord is broken on the other unit. If you can identity I would greatly appreciate any relevant information. It measures 30 inches. There is also a plastic adjustment screw on the bottom.

Thank You, Patrick

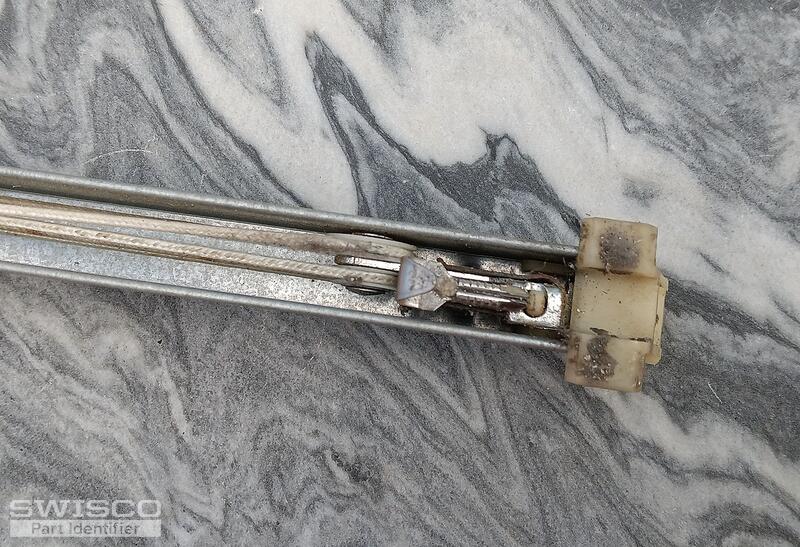

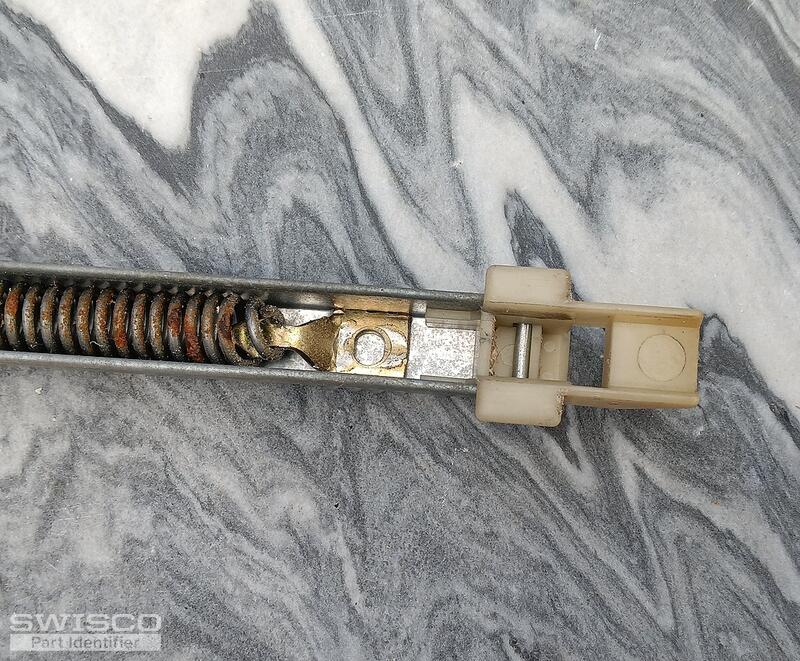

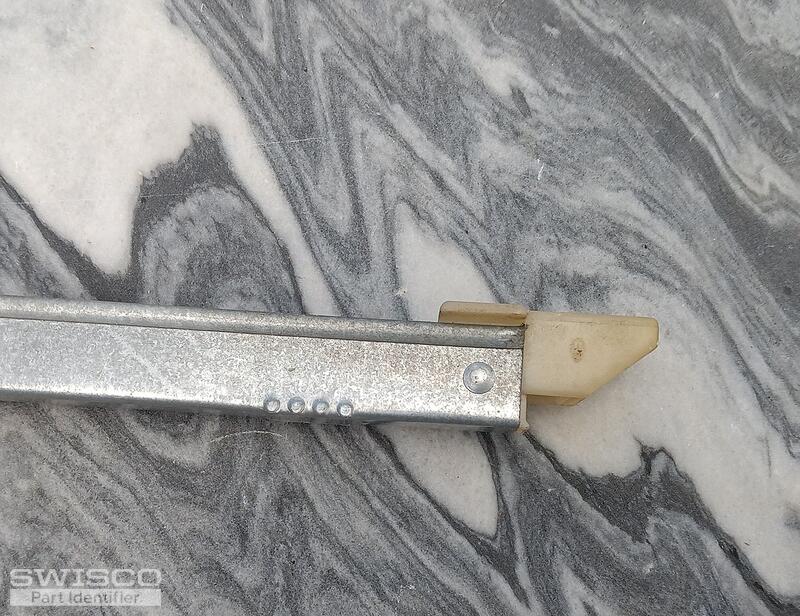

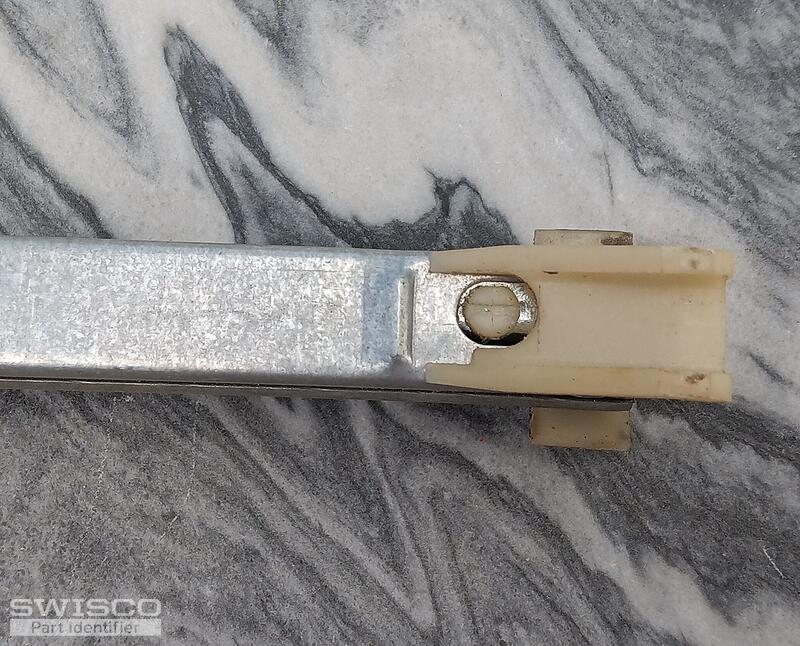

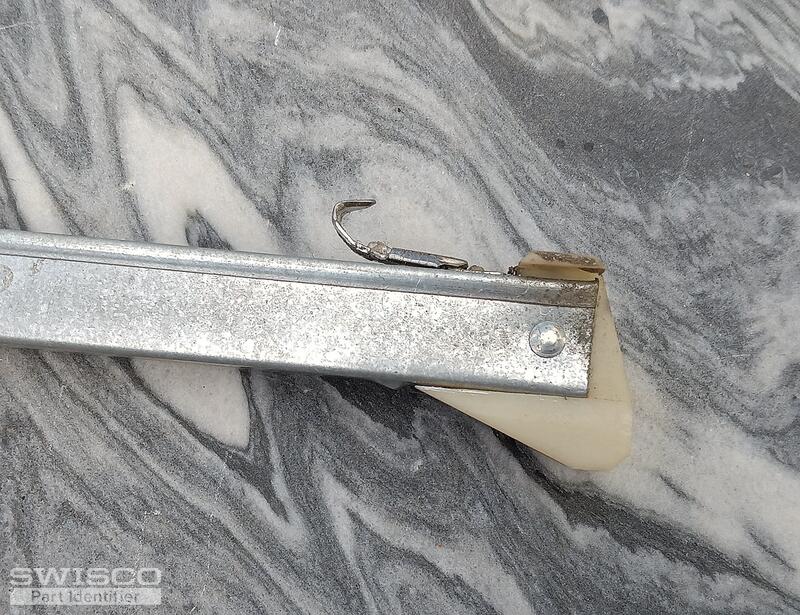

Thumbnail of the uploaded file named IMG_20220916_131431.jpg
Thumbnail of the uploaded file named IMG_20220916_131424.jpg
Thumbnail of the uploaded file named IMG_20220916_131419.jpg
Thumbnail of the uploaded file named IMG_20220916_131407.jpg
Thumbnail of the uploaded file named IMG_20220916_131400.jpg
Profile picture of Emily
Emily from SWISCO responded:
September 20, 2022

Hi, Patrick.

Your balance is a match for either our S380-30 or S385-30 but the best replacement option will depend on your bottom shoe. The Series 380 has a 1" deep shoe, but the Series 385 has a 1-3/32" deep shoe so you'll need to measure as shown in the image below. You will also need the 2930 strength option, based on your 29 3 stamp.

Let me know if you have any questions!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A handy person from Colorado Springs, CO says:
September 20, 2022
Thank you, I measured and it is 1 3/32. I will go ahead and order the S385. Thanks again.
30" Series 380 Channel Balance
30" Series 380 Channel Balance
S380-30
$11.30
30" Series 385 Channel Balance
30" Series 385 Channel Balance
S385-30
$11.30
