Caldwell Balance Order

A handy person from Portland Oregon says:
May 25, 2023
Would like to place an order of balances.
Window Weight: 14.67 LB, height 22.5" x 33.5 width
Balance: 21" length, Description: 19_4_KK_CALDWELL. Need 6 balances.

Window Weight: 18.68 LB, height 28.5" x 33.5 width
Balance: 27" length, description: 25_3_DL_CALDWELL. Need 22 balances.

Window weight: 14.69 LB, height 28.5" x 27" width
Balance: 27" length, description: 25_3_DL_CALDWELL. Need 6 balances.

Window weight: 13.40 LB, height 19.5" x 26.75 width
Balance: 17.75" length, description: 16_3_EK_CALDWELL. Need 2 balances.

I also have two additional windows that are missing balances not sure if the window information can help identify what balances I need to order.

Window weight: 11.81 LB, height 22.5" x 21" width
Need 2 balances

Window weight: 17.64 LB, height 28.5" x 32.75 width
Need 2 balances
Thumbnail of the uploaded file named IMG_0511.jpg
Thumbnail of the uploaded file named IMG_0512.jpg
Thumbnail of the uploaded file named IMG_0513.jpg

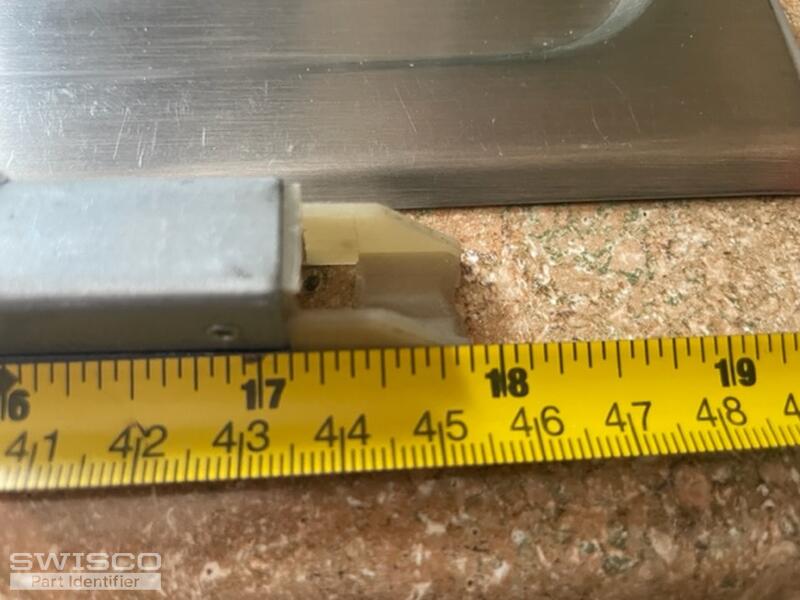

Thumbnail of the uploaded file named IMG_0514.jpg

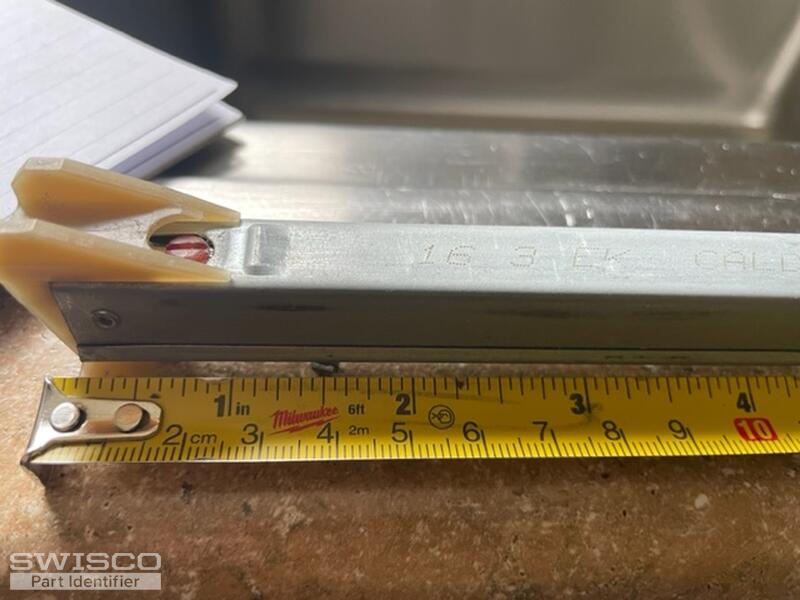

Thumbnail of the uploaded file named IMG_0515.jpg
Profile picture of Emily
Emily from SWISCO responded:
May 26, 2023

Hello there!

Thank you for reaching out to us. I can't ID what you have here just yet. I'm afraid the top fitting is too obscured by the tape measure. Can you show us a clear and unobscured view of the top fitting?
A handy person from Portland Oregon says:
May 28, 2023

Hello Emily,

Here are some more pictures I hope this helps. Let me know if you need anything else

Thx

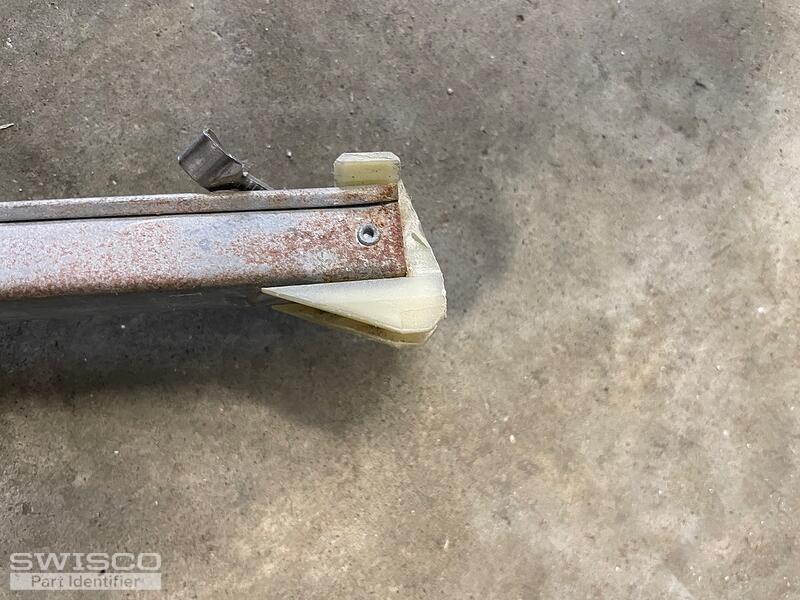

Thumbnail of the uploaded file named IMG_0588.jpeg

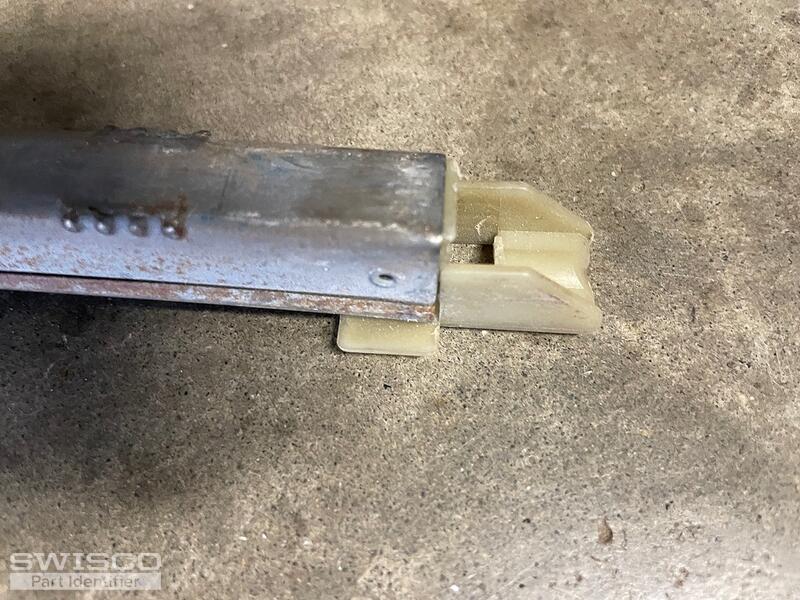

Thumbnail of the uploaded file named IMG_0587.jpeg

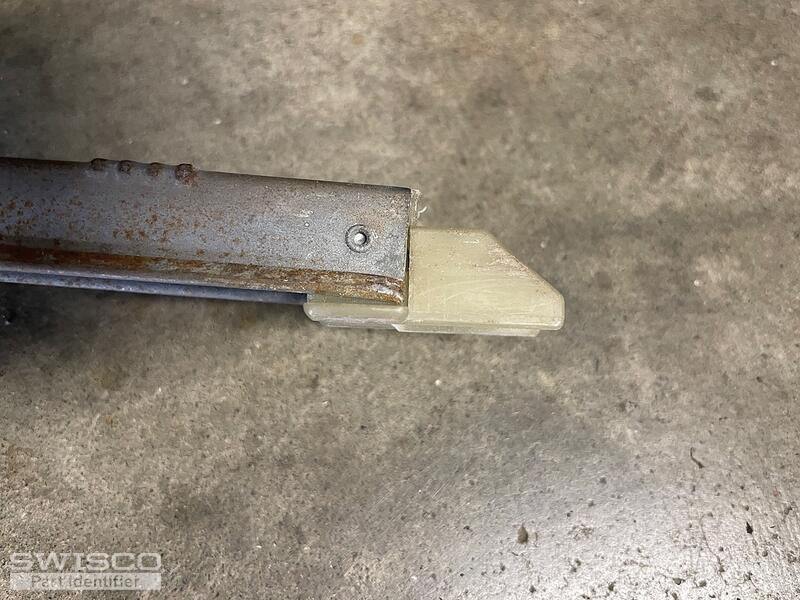

Thumbnail of the uploaded file named IMG_0586.jpeg

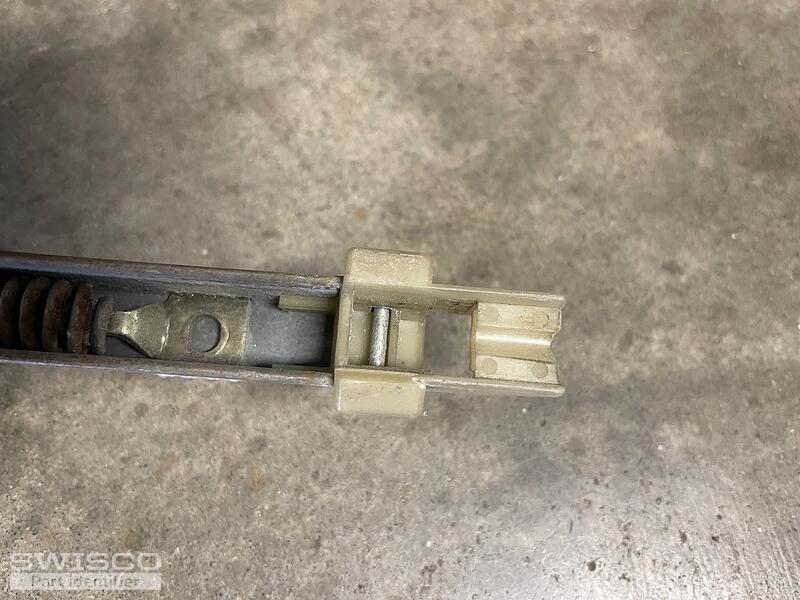

Thumbnail of the uploaded file named IMG_0585.jpeg

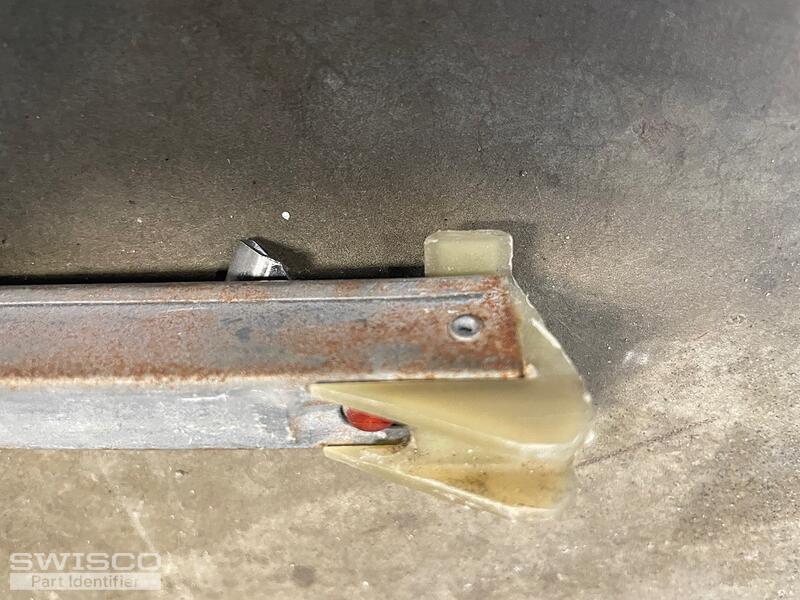

Thumbnail of the uploaded file named IMG_0584.jpeg
Profile picture of Emily
Emily from SWISCO responded:
May 30, 2023

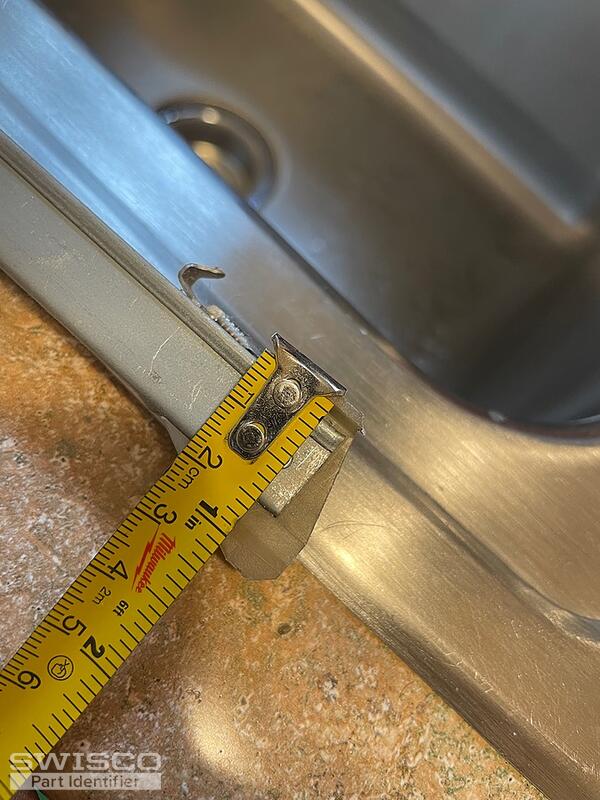

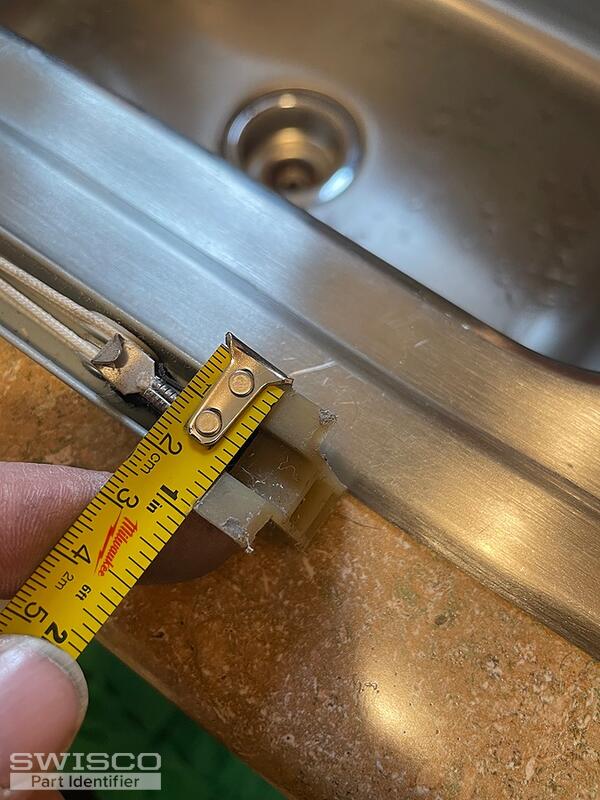

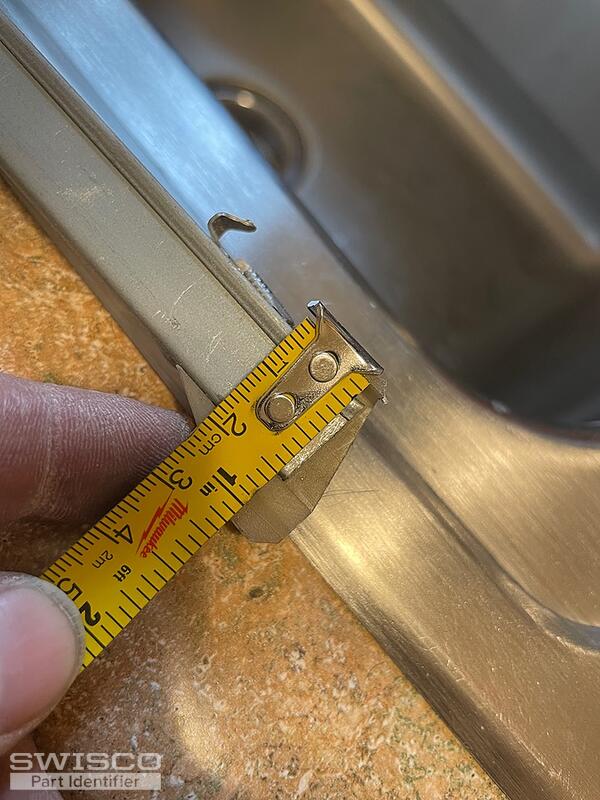

Thanks for the additional photos! This is a huge help. Our Series 380 or Series 385 would be my picks. The best match will depend on the depth of the bottom shoe as shown below.

For the 19 4 balance, the metal channel should measure 20" long.

For the 25 3 balance, the metal channel should measure 26" long.

For the 16 3 balance, the metal channel should measure 17" long.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

As for the windows with the missing balances, are they the same brand as the others with the Series 380/Series 385? If so, odds are they use the same configuration. To help determine the proper length, we will need you to write out the visible glass height for each window sash.
