Window Balance 34 3 HP Caldwell

Quick Learner from USA

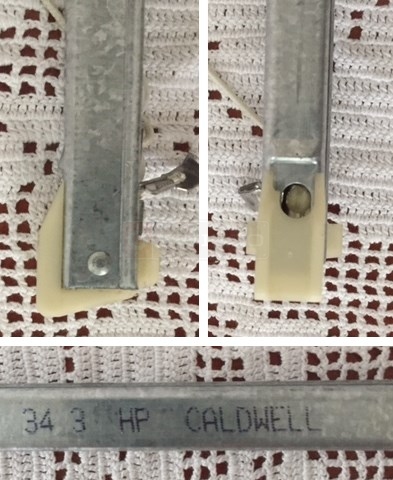

I need replacement parts for my window sash.The channel its self is 35 inches long and the stamp reads 34 3 HP Caldwell.
Channel balance
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Thanks for contacting us. I'm confident we can replace this, but your pictures only show the bottom nylon attachment. We will also need to see the top nylon attachment in order to identify the proper Series.

In the meantime, can you confirm the depth of the bottom attachment you showed us? That would help narrow it down even further. For reference, I think your show could either be our 15-004 (1-3/32" depth) or 15-005 (1" depth), I'm just not sure which. If you can confirm, that would go a long way for us finding the best replacement option.
Quick Learner from Charlotte nc

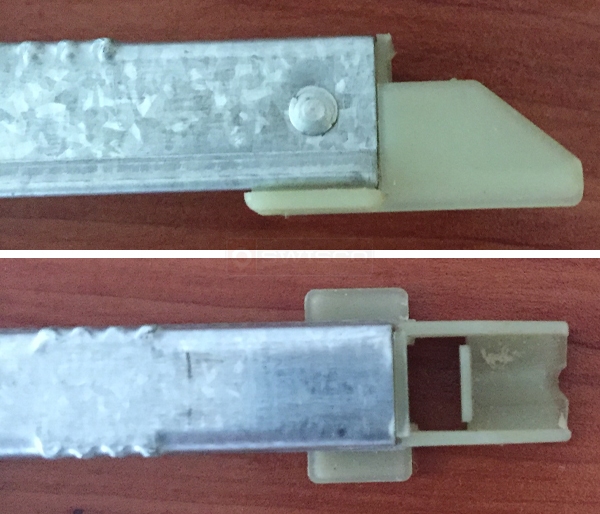

Looks like the depth is about an inch and the channel depth is a half inch.
User submitted photos of a window balance.
Tom
Tom from SWISCO
SWISCO
Expert
Thank you! See our Series 380 channel balance, I think you'll find this is a good match.
