Caldwell Channel Balance

Professional from Auburn, WA

Jun 10, 2025 3:18 pm

I need 4 of these. Stamped 325 LO Caldwell (not sure if that's LO or L0).

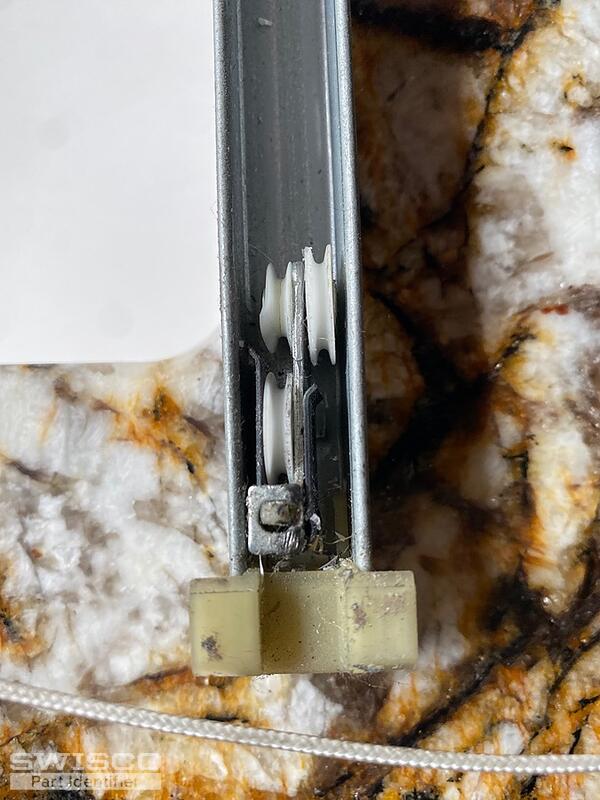

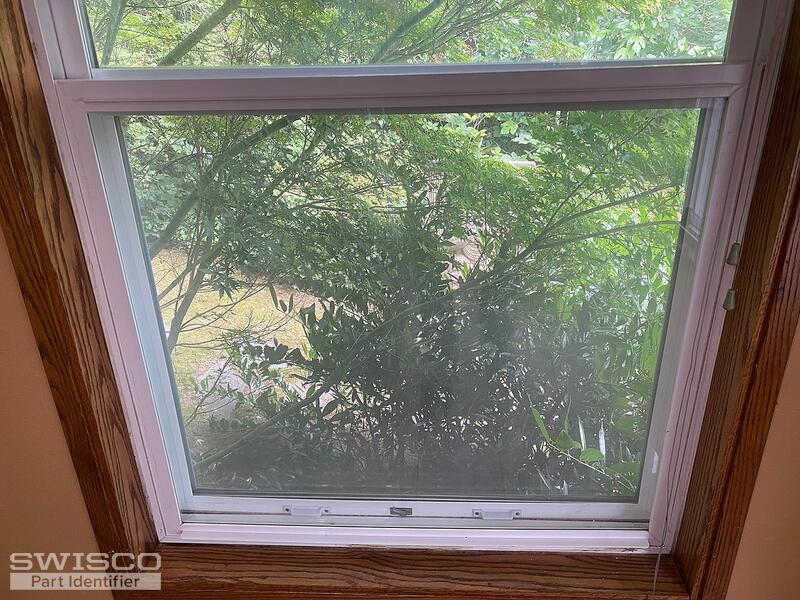

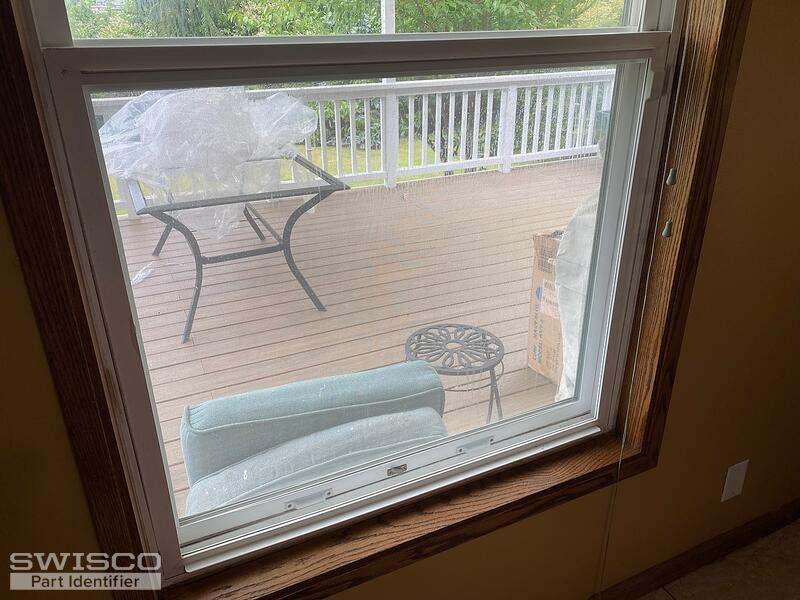

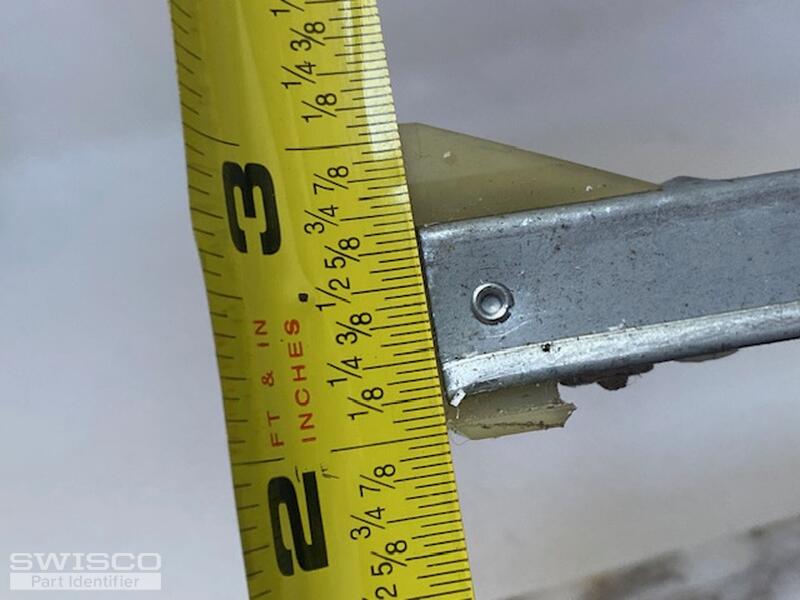

The length of the metal frame is 33". The top and bottom are tabbed, the bottom is 1 3/32" Tall.Pictures included (4).Greg

4 user uploaded images

10 Replies

Jasmine from SWISCO

Jun 11, 2025 9:23 am

Hi Greg,

Thanks for your post! I've narrowed down your balances to a few different options but I'll need to see a photo of the spring side of the balance to determine the correct one. I'm specifically looking to see a photo of the bracket connecting the spring and the string in the center of the balance.

Please let me know if you have any questions.

Professional from Auburn, WA

Jun 11, 2025 11:37 am

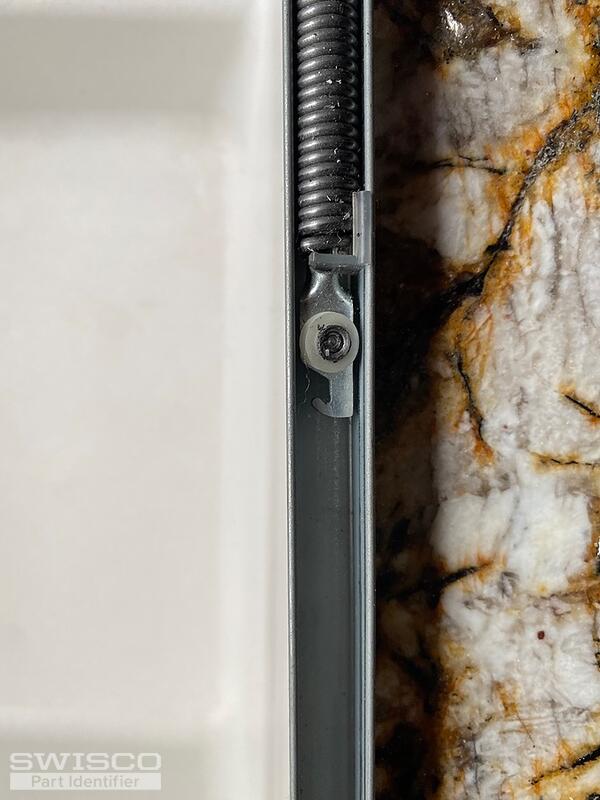

Here's a couple pics of the spring side of the channel balance.
LMK if you need something else.
Greg

2 user uploaded images

Jasmine from SWISCO

Jun 11, 2025 11:58 am

Thanks for the photos. Your balances can be replaced with the S385-33 Channel Balance. You can most likely use the 3250 stamp option but it would be a good idea to double check that your sash weight falls between 28 to 32lbs.

Close up view of the S385 balance shoe.

Professional from Auburn, WA

Jun 11, 2025 4:00 pm

That weight range seems about right. I'll verify before ordering. Thank you for such a fast response.
Greg

Jasmine from SWISCO

Jun 12, 2025 9:02 am

My pleasure to assist! We appreciate your business. Please don't hesitate to reach out with any other hardware repair projects you might have.

Have a great weekend!

Professional from Auburn, WA

Jun 14, 2025 4:00 pm

Window sashes are 26 Lbs each. Looks like I'm going with the 3240 stamp!
Thank you, Jasmine!

Jasmine from SWISCO

Jun 16, 2025 8:19 am

Okay, great! I'm glad you double checked. Please don't hesitate to reach out with any other questions you might have.

Have a great day!

Professional from Auburn, WA

Jun 26, 2025 4:23 pm

Easy installation! Mine were a bit harder to install than the video due to the length, but all is good regardless.
Thank you for your AMAZING customer support!!
Greg

2 user uploaded images

Jasmine from SWISCO

Jun 27, 2025 9:42 am

Hi Greg,

Glad to hear your windows are functioning properly again. It was my pleasure to assist.

We're happy to help with any future hardware repair projects you might come across, please don't hesitate to reach out!

Have a great weekend!
