Caldwell JL

A quick learner from Placerville CA says:

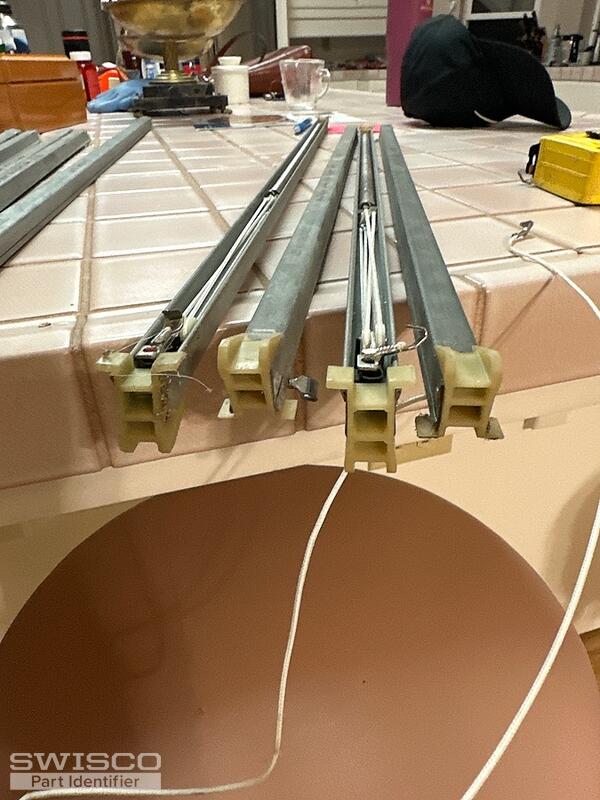

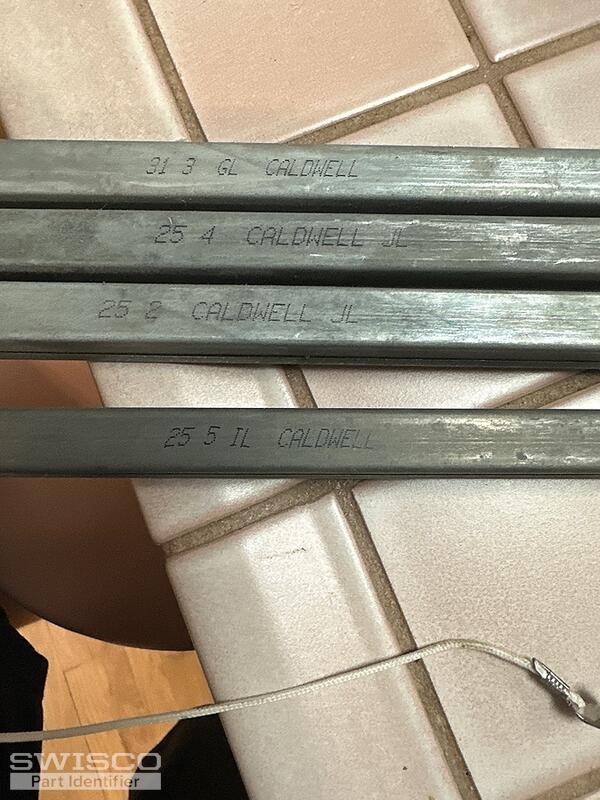

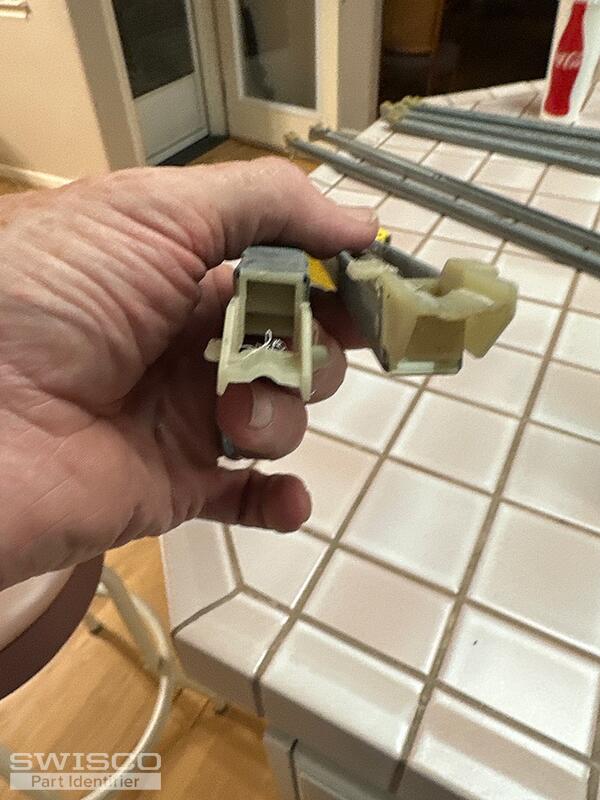

The pics have the numbers

1st 25 2 need 4 sets for a total of 8 channel balancers
2nd 25 5 IL caldwell 2 sets for total of 4 balancers
3rd 25 4 cadwell JL 2 sets for a total of 4 balancers
4th 31 3 GL cadwell 2 sets for a total of 4 balancers
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

The balances in these photos look like either our Series 380 or Series 385 to me. You'll have to measure the bottom fitting as shown below to see which Series is best.

For the 25 2 stamped balance, I recommend the 2520 option.

For the 25 5 stamped balance, I recommend the 2550 option.

For the 25 4 stamped balance, I recommend the 2540 option.

For the 31 3 stamped balance, I recommend the 3130 option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

A quick learner from Placerville CA says:
Thay are 1" an a 1/8
Profile picture of Emily
Emily from SWISCO responded:

We don't sell a balance with a 1-1/8" deep winged bottom fitting. Our Series 385 would be our closest option. You may want to double-check your measurement just to be safe!
