Quick Learner

Aug 29, 2025 12:30 am

Hi,

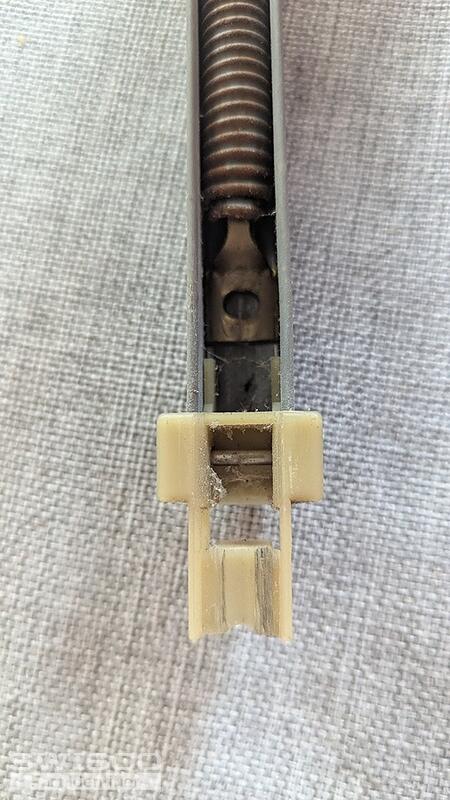

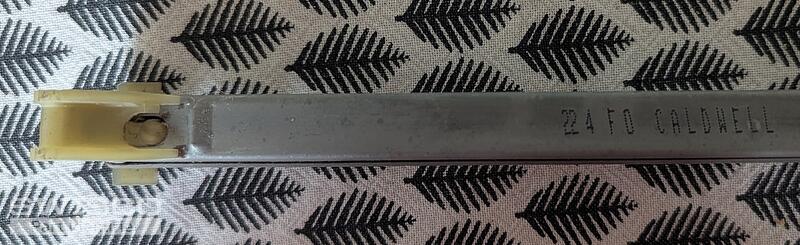

I'm trying to identify what window balance I need to order. The model appears to be a Caldwell 22 4 FD (F0?). The metal rod is 23 in long and appears .

5 user uploaded images

4 Replies

Emily from SWISCO

Sep 3, 2025 1:59 pm

Hi there!

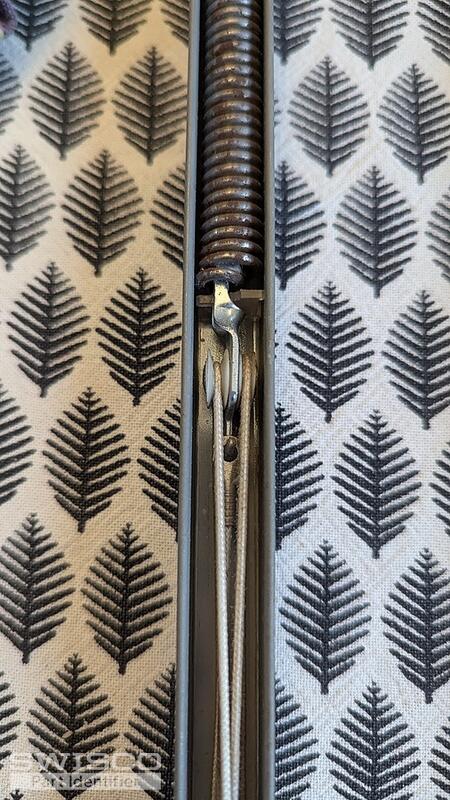

Thank you for reaching out to us. We can help with this. We would also like to see an image of the inside of the balance’s metal channel, where the innerspring connects to the pulley mechanism; this connection is located in the middle of the channel.

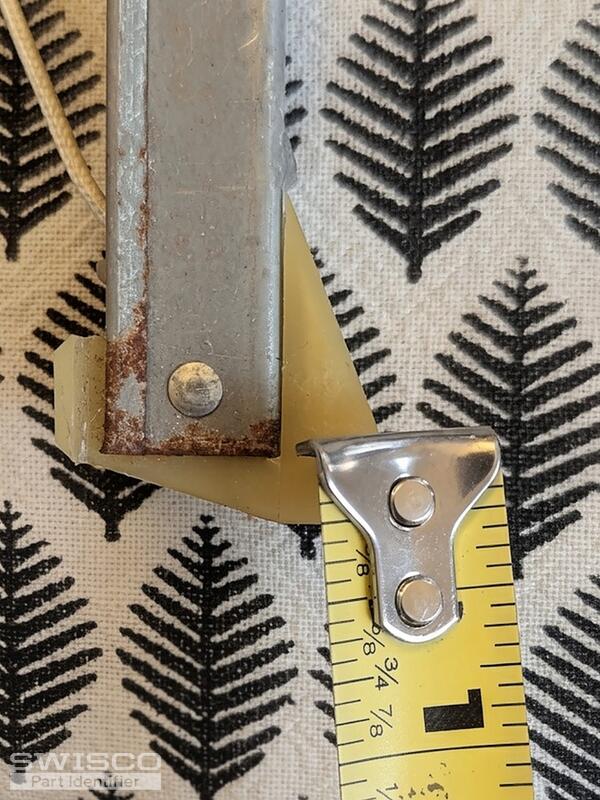

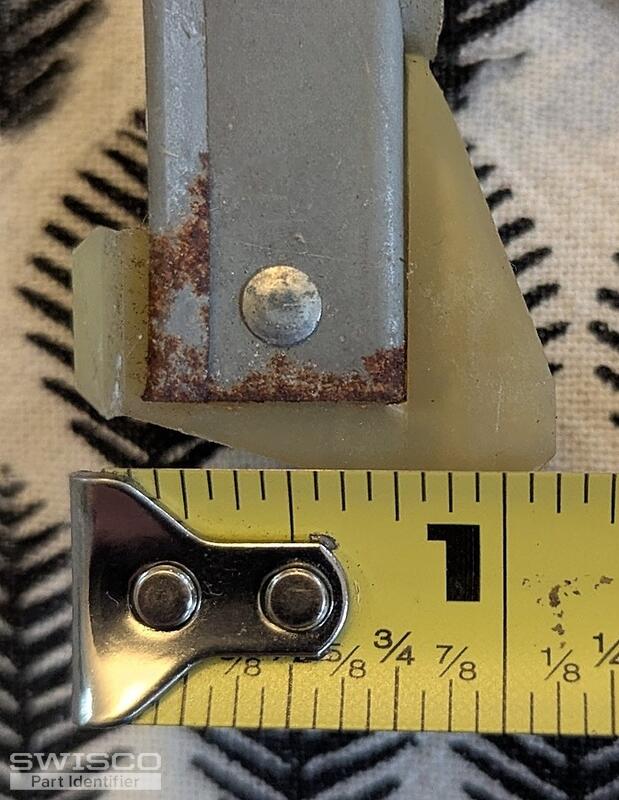

We would like you to measure the bottom shoe as shown below as well and tell us what you get.

Profile view of a winged balance attachment

Quick Learner

Sep 6, 2025 10:00 pm

Here's images of those I think :D Thank you for your help!

3 user uploaded images

Emily from SWISCO

Sep 8, 2025 8:21 am

Thank you kindly! Your balance would be a match for the S380-23 or S385-23 with the 2240 stamp option. The best match depends on the depth of the bottom fitting. If it measures over 1", you'd want the S385-23.

Please let us know if you have any questions!

Comparison of the S378, S380 and S385 balance shoes.
