A home owner from Half Moon Bay CA says:
Hi there.
I'm new to this window business and wanna be sure I'm ordering the right part. I think I want the 31" series 385 channel balance.

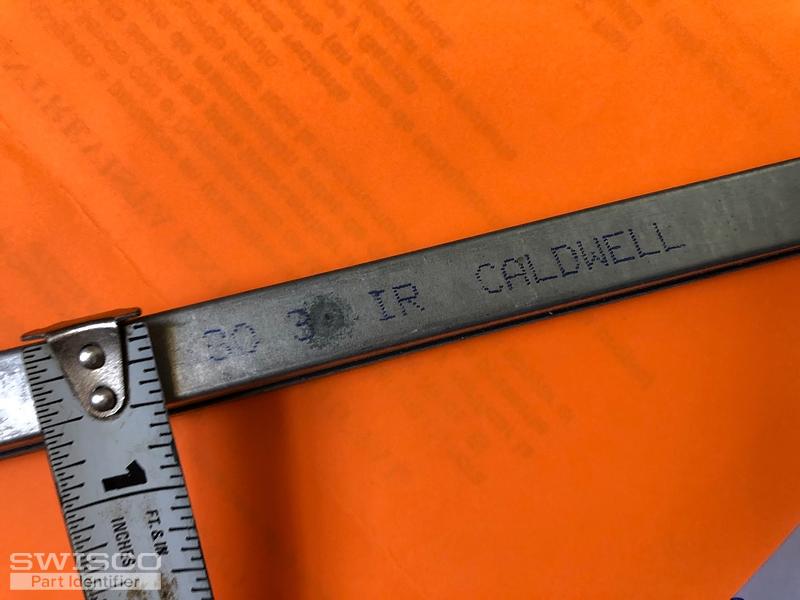

Channel is 31" long (just the metal part). Has a "30 3 R" stamped.

Thanks!

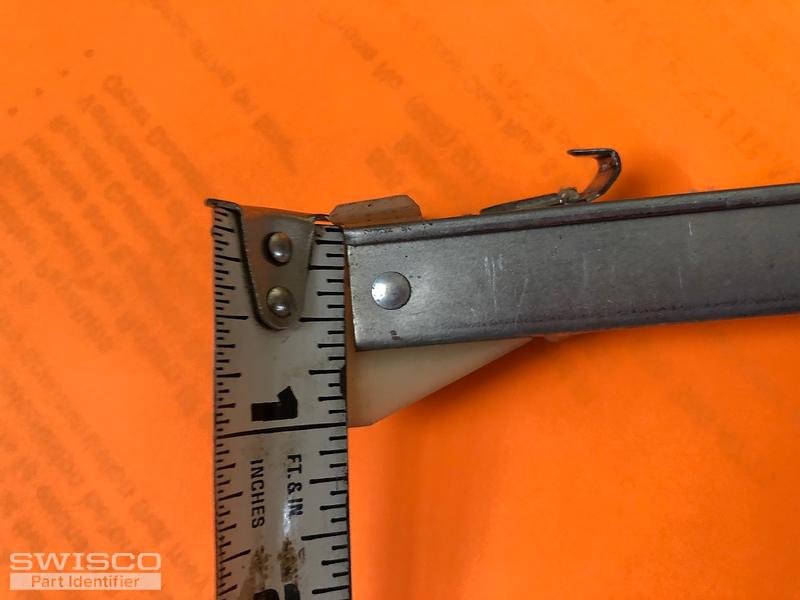

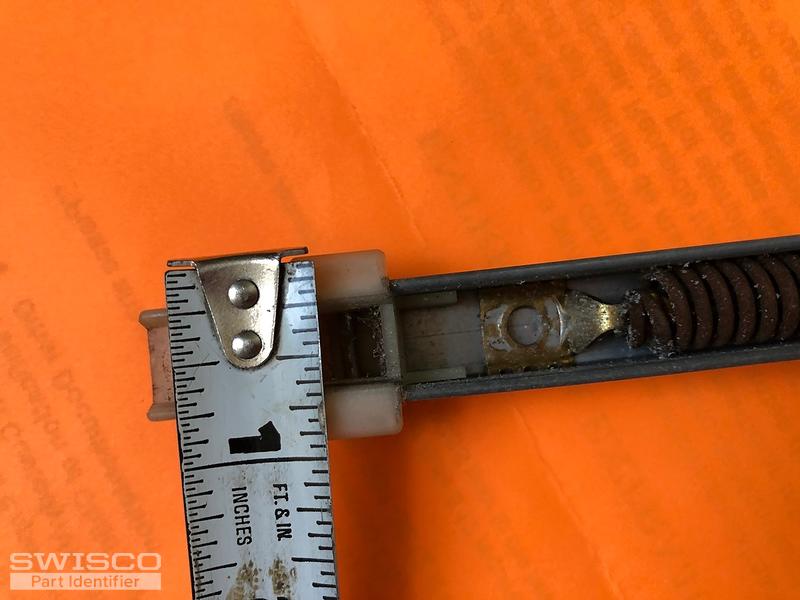

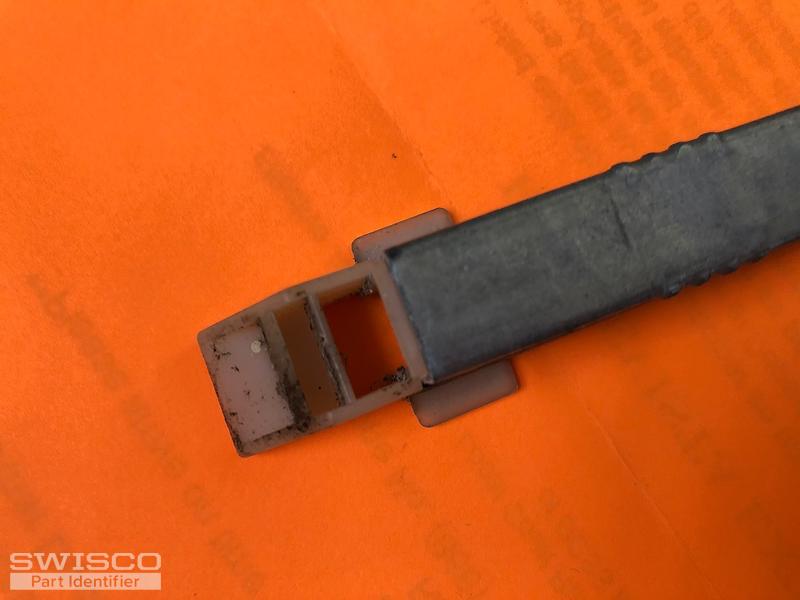

Thumbnail of the uploaded file named 928C6D8A-821E-49B1-8393-CFDCC09D7431.jpeg
Thumbnail of the uploaded file named 188395A3-BAB1-4AA8-AC5B-D3FD0F11F5CD.jpeg
Thumbnail of the uploaded file named 886B3638-02B8-4D80-AA6C-A45327D25ABD.jpeg
Thumbnail of the uploaded file named 466B08DE-6E10-4485-B239-F8F85118F98A.jpeg
Thumbnail of the uploaded file named 4207095B-77D9-4F6E-B150-62E2A94B074D.jpeg
Profile picture of Tom
Tom from SWISCO responded:

It looks like your shoe is 1" deep, not 1-3/32". Can you confirm? If it's 1" deep, you want our S380-31. If it is 1-3/32", though, then our S385-31 is your best bet.

Regardless of which one you go with, you'll want the 3030 option.

A home owner from Half Moon Bay CA says:
Thanks Tom.
I just checked with a better measuring tool. Definitely 1-3/32"
Profile picture of Tom
Tom from SWISCO responded:

Great, in that case I highly recommend our S385-31. I am confident that's what you want.
