Caldwell block &tackle balances

Handy Person from El Segundo,Ca 90245

Channel length; 22"

Channel width (at bottom) 5/8"

(at top) 1/2"

Any markings were barely visible;

"Caldwell" and either "21-4" or "21-A".

The stamping was a very light ink and almost completely faded.

Thank you for your help and reply if more info is needed.

Craig

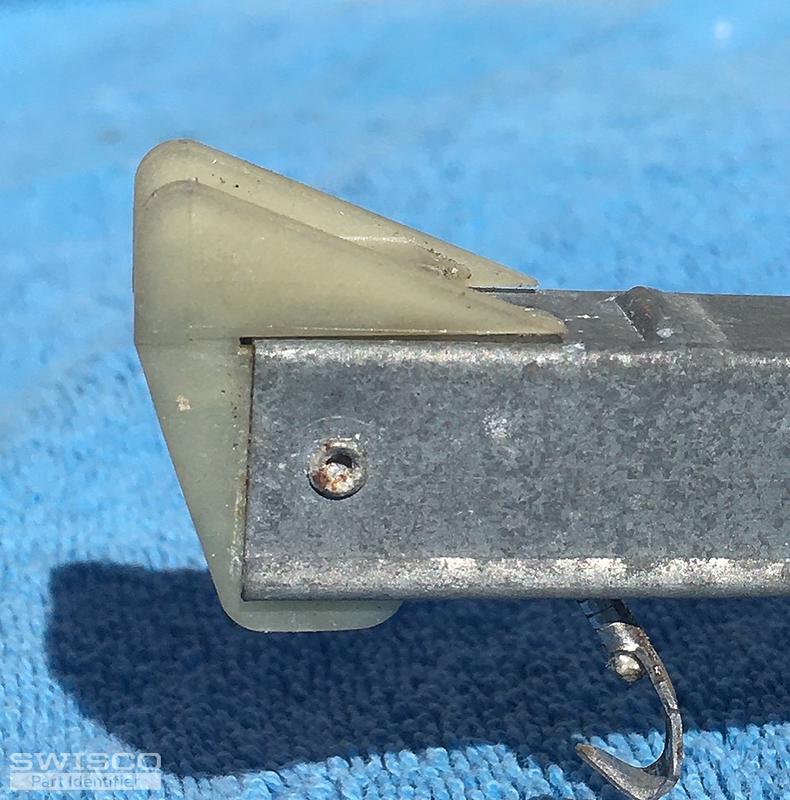

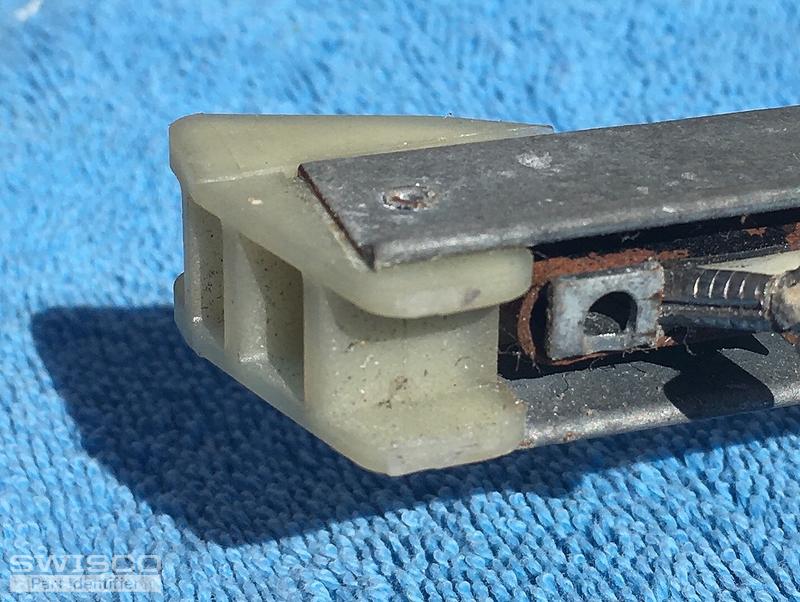

5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

It looks like you have either our S351-22, with a 15-002 bottom attachment, or S390-22, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need either a 2140 spring strength option to replace the (21-4) or a 2110 to replace the (21-A) stamp for your replacement balances. Thank you!


Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
