Caldwell channel balance

A contractor from Los Angeles says:
Hello, My window needs some new channel balance. The ones I removed from my windows the numbers disappearing and I cant read them. So I was told by one of your representatives to send you guys pictures to help me identify the type my window uses. I believe the window weight is bout 25-30 LB. The channel balance are 25 inches long. and the brand is Caldwell. thank you

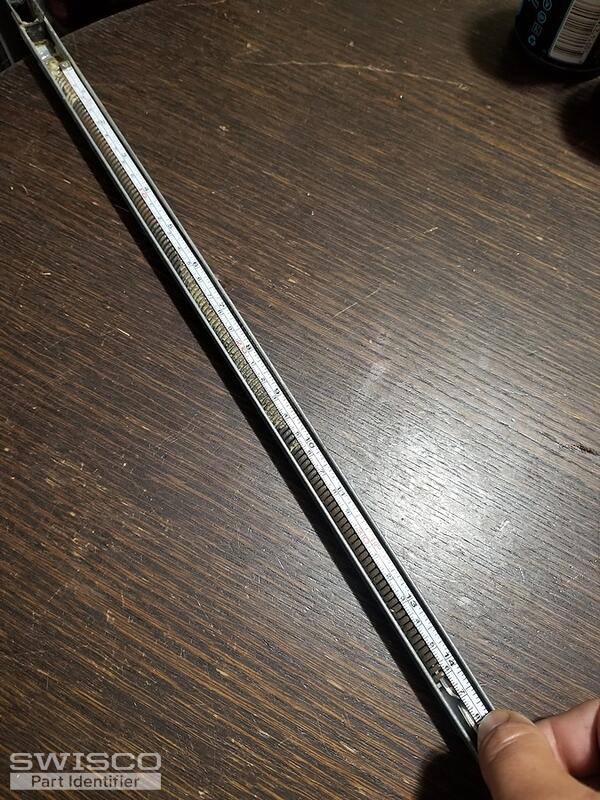

Thumbnail of the uploaded file named 20221209_132630.jpg

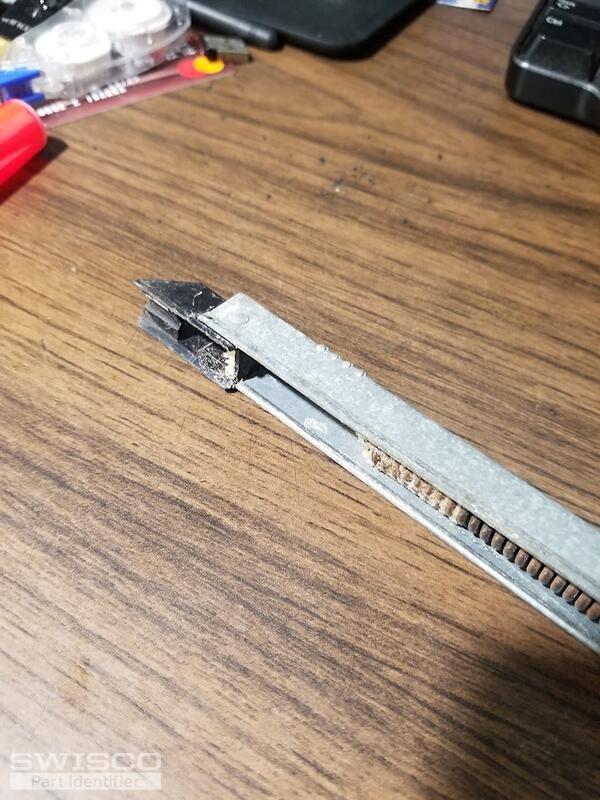

Thumbnail of the uploaded file named 20221209_132002.jpg

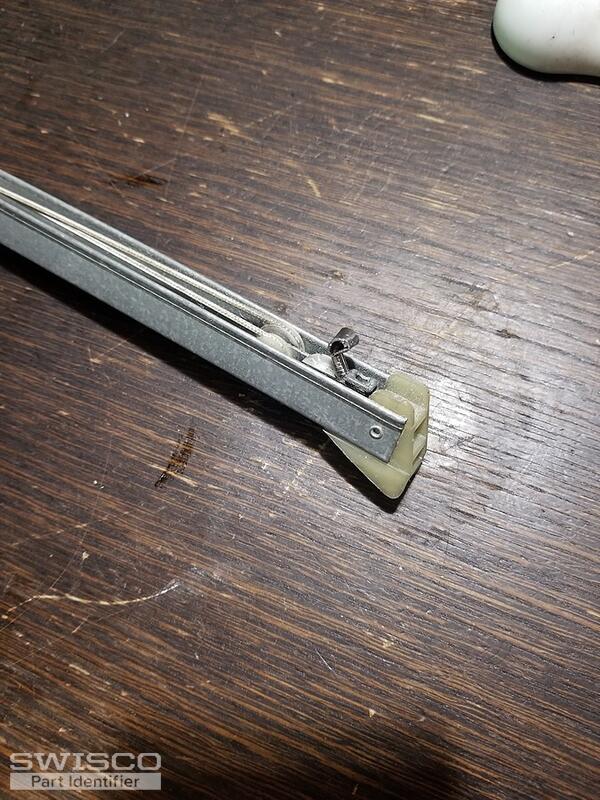

Thumbnail of the uploaded file named 20221209_132259.jpg

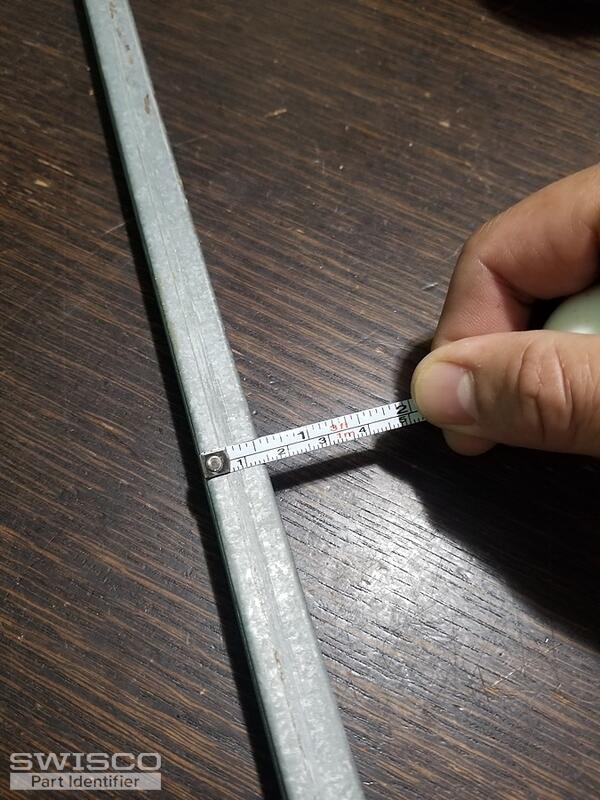

Thumbnail of the uploaded file named 20221209_133827.jpg

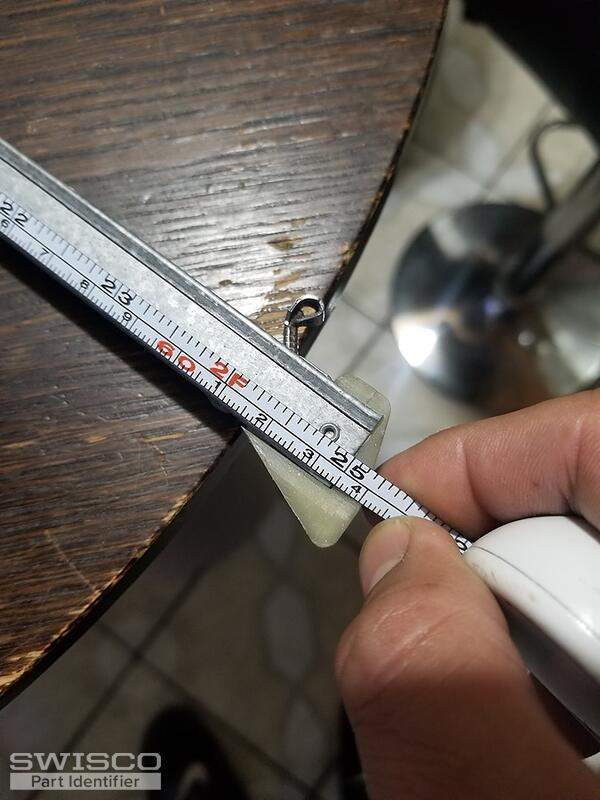

Thumbnail of the uploaded file named 20221209_132339.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for your photos. Based on what I see here, you have either our S351-25 or S390-25, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Concerning the stamp option, you will need a precise sash weight for that. Estimations will not suffice. Once you have an exact weight, you can simply refer to the chart shown on each balance's store page to pick the best option.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
