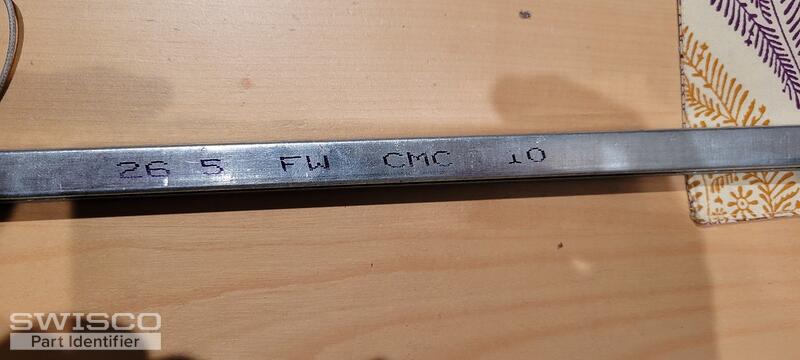

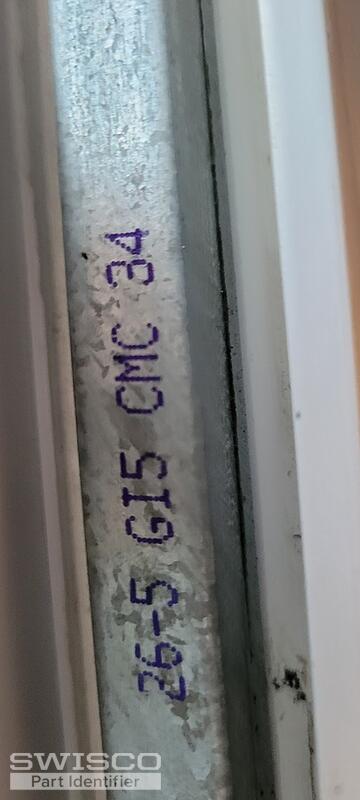

Caldwell balance winged 26-5 & 20-4 stamp

A quick learner from Scotts Valley CA says:
August 28, 2021
Hello, I need both sides, thank you.
Thumbnail of the uploaded file named 20210828_194642.jpg
Thumbnail of the uploaded file named 20210828_194612.jpg
Thumbnail of the uploaded file named 20210828_194553.jpg

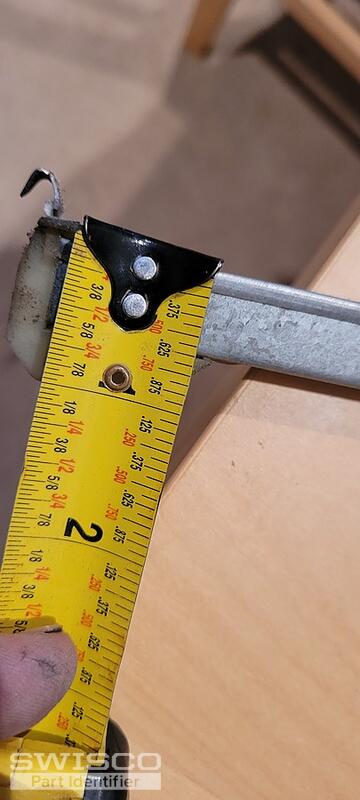

Thumbnail of the uploaded file named 20210828_194529.jpg
Thumbnail of the uploaded file named 20210828_194142.jpg
A quick learner from Scotts Valley CA says:
August 28, 2021
Hello, I need left and right sides of these pieces also, thanks.
Thumbnail of the uploaded file named 1630205715423659468548498094763.jpg

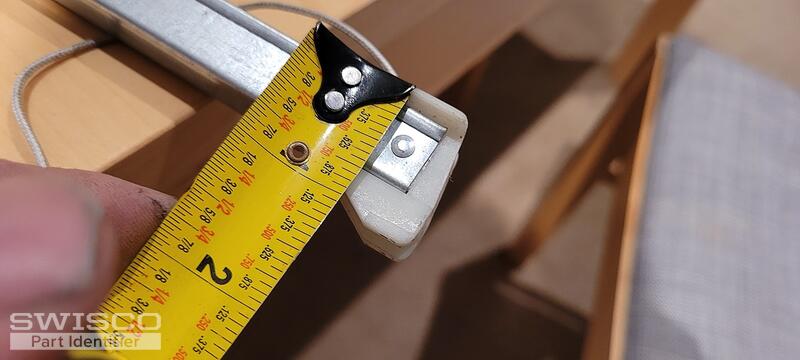

Thumbnail of the uploaded file named 16302057692658673692165949061842.jpg

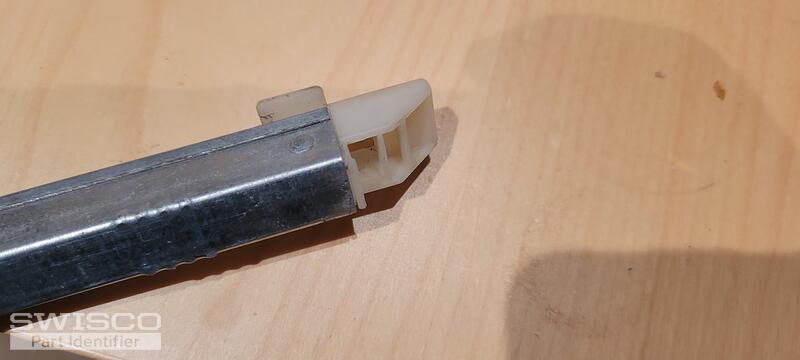

Thumbnail of the uploaded file named 16302058143243806835578779627757.jpg

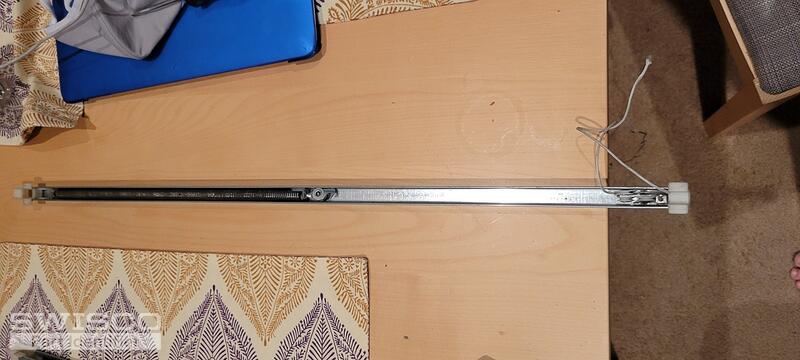

Thumbnail of the uploaded file named 16302058421351254009411837801719.jpg

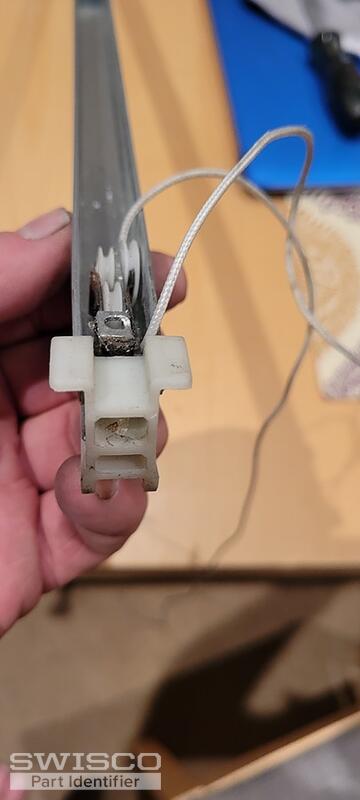

Thumbnail of the uploaded file named 16302058629204538277068289036650.jpg
A quick learner from Scotts Valley CA says:
August 28, 2021

Hello, I need both left and right sides please.

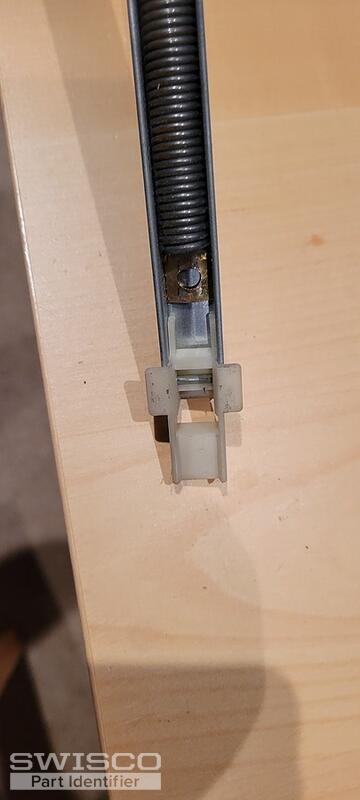

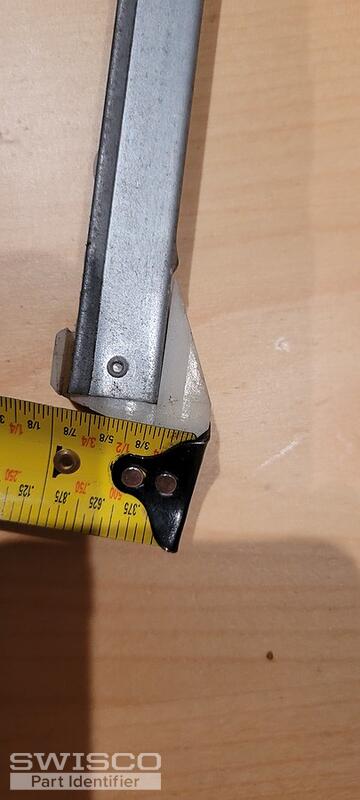

Caldwell 20-4 ... 21" winged window channels

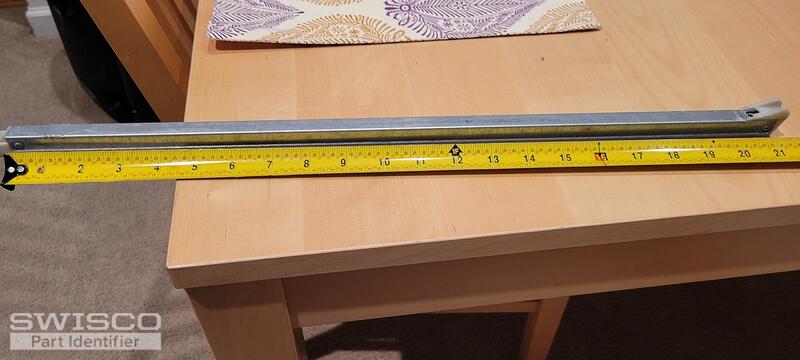

Thumbnail of the uploaded file named 20210828_200146.jpg

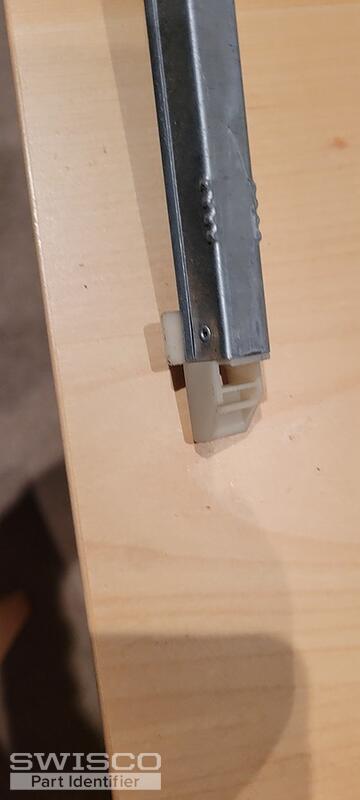

Thumbnail of the uploaded file named 20210828_200244.jpg
Thumbnail of the uploaded file named 20210828_200240.jpg

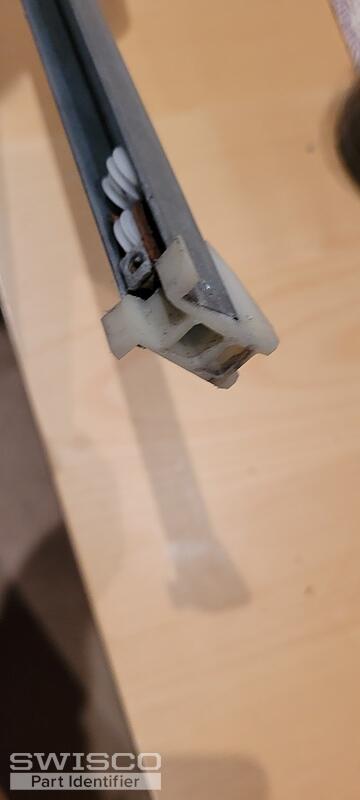

Thumbnail of the uploaded file named 20210828_200237.jpg
Thumbnail of the uploaded file named 20210828_200215.jpg
Profile picture of Casey
Casey from SWISCO responded:
September 2, 2021

Hello,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2650 spring strength options for your 27" replacement balances, as well as 2040 options for the 21" balances.

Thank you and let us know if you have any other questions or concerns.


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
27" Series 380 Channel Balance
27" Series 380 Channel Balance
S380-27
$10.55
27" Series 385 Channel Balance
27" Series 385 Channel Balance
S385-27
$10.55
21" Series 380 Channel Balance
21" Series 380 Channel Balance
S380-21
$9.38
21" Series 385 Channel Balance
21" Series 385 Channel Balance
S385-21
$9.38
