Caldwell channel balances

Quick Learner from Salem
I need two Caldwell channel balances. Part number 25-9 GS.

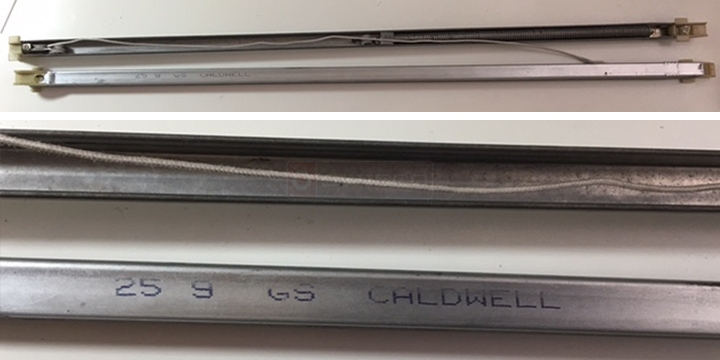

User submitted photos of a window balance.
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Welcome to SWISCO.com. Your 26" balance is either Series 380 or Series 385. You'll need to measure the bottom shoe in order to tell which. Take a look at the photo I'm attaching below, and measure as shown. If you come up with 1", you have the Series 380. For a 1-3/32" shoe, you'll need a Series 385. To determine the stamp option, you should weigh your sliding window sash and compare it to the chart on the item webpage.
Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
