Caldwell sash cams

A home owner from Columbus, Ohio says:
April 28, 2021

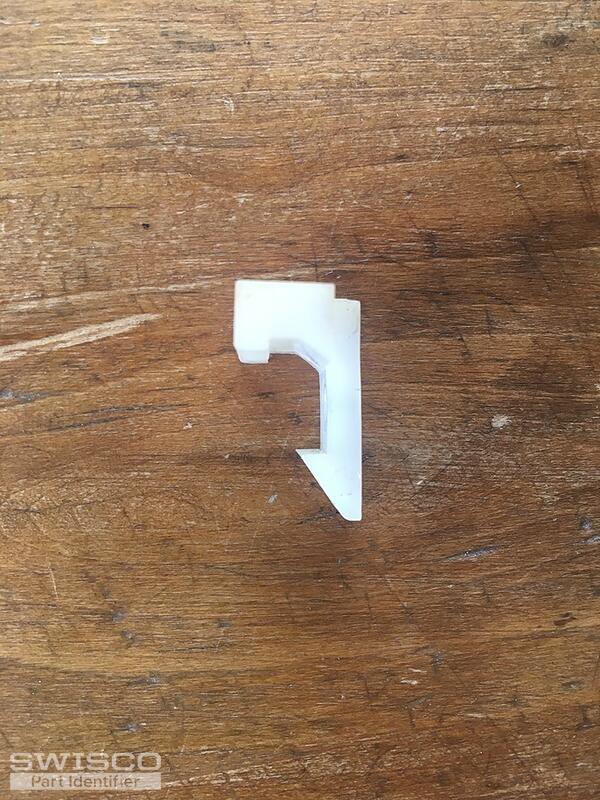

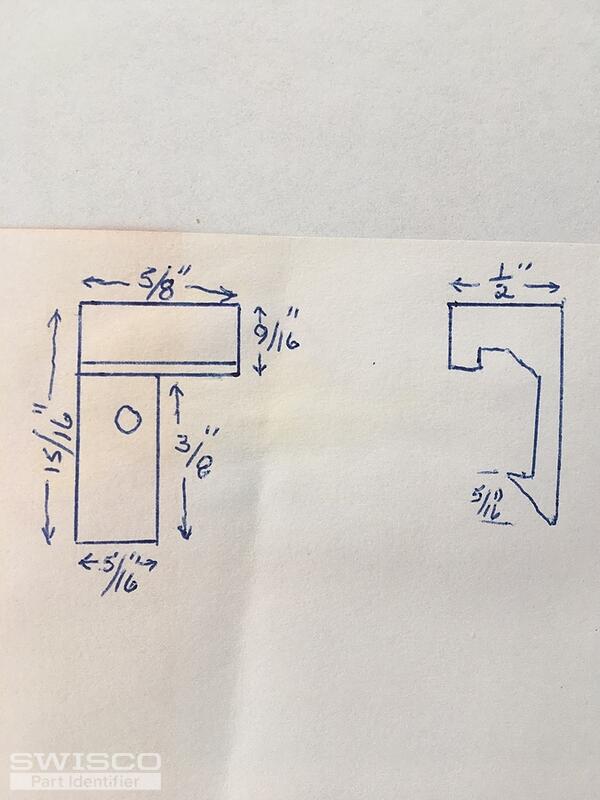

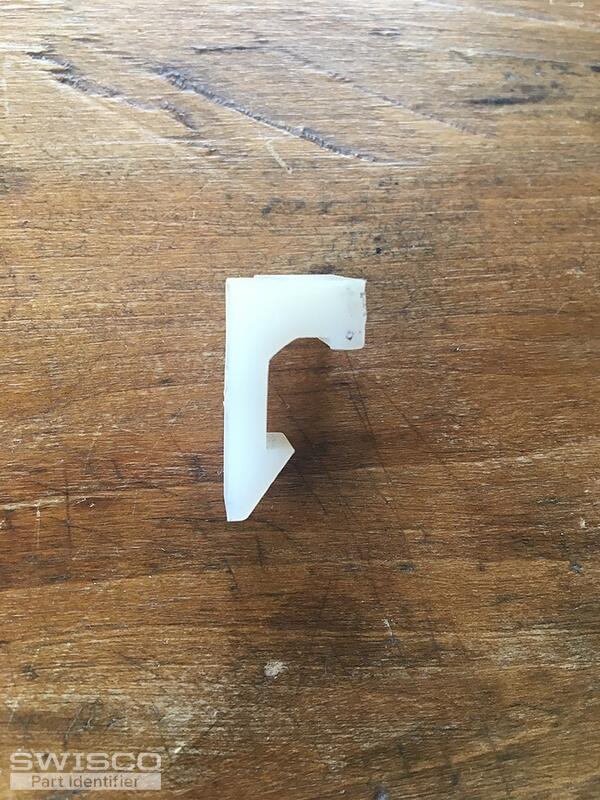

I am trying to locate replacement sash cams for old Caldwell windows. I tried another window parts supplier with no success. Below are pictures and drawing of the right sash cam. The left sash cam is a mirror image of right. I need at least 8 of each left and right.

Thanks for any help.

Regards,

Walt

Thumbnail of the uploaded file named 6C2EB2CD-5DD3-447B-BC0E-EE7B38612E64.jpeg
Thumbnail of the uploaded file named F4422D88-6153-4206-99EF-63EC5C868770.jpeg
Thumbnail of the uploaded file named 8CC56372-22BA-458D-B422-B48F1CF47822.jpeg
Profile picture of Tom
Tom from SWISCO responded:
April 30, 2021

Hello, Walt. This part is called a top sash guide. Your old model isn't made anymore, but you can use our 18-066 to replace it.

Let me know if you had any questions!
5/8" Nylon Sash Guide
5/8" Nylon Sash Guide
18-066
$1.40
How to Repair a Jammed Window
How to Repair a Jammed Window
VIDEO
WATCH >
How to Replace a Top Sash Guide [1080p]
How to Replace a Top Sash Guide [1080p]
VIDEO
WATCH >
