Caldwell window balance

Start a new Discussion

Handy Person from Apollo Beach Florida

Mar 8, 2019 7:51 am

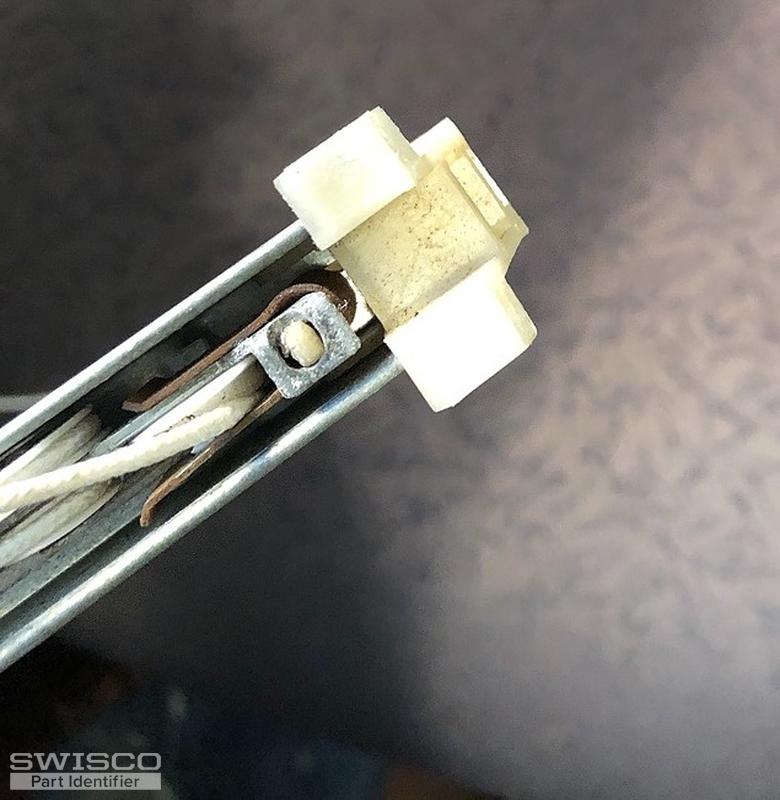

Looking for two window balances stamped 29 3 FS
Caldwell
They are 1/2 inch wide
30 inches long (metal part)

4 user uploaded images

6 Replies

Bob from SWISCO

Mar 8, 2019 8:14 am

Thanks for posting. See either our S380-30 or S385-30. The only difference between these two Series is the 'depth' of the bottom nylon shoe. With the Series 380 the depth of this nylon shoe is 1", whereas with the Series 385 it is 1-3/32". Compare with your own and see what is best.

Once you know which balance to select, you must choose a stamp option. Your stamped number of 29 3 conforms to our stamp option of 2930. Let us know if you have any questions.

Handy Person from Apollo Beach Florida

Mar 8, 2019 12:19 pm

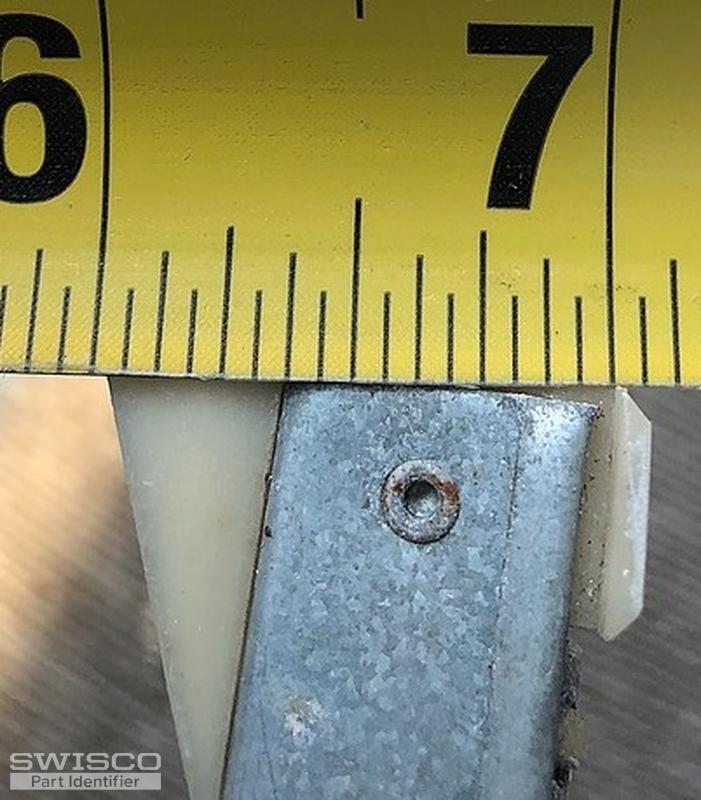

I think it's 1inch

1 user uploaded image

Bob from SWISCO

Mar 8, 2019 1:18 pm

It's hard to tell from this photograph, but unless the balance shoe looks like its deeper than 1" at any point, then I think the Series 380 is the right option.

Handy Person from Apollo Beach Florida

Mar 8, 2019 1:35 pm

Thanks

Bob from SWISCO

Mar 11, 2019 7:01 am

My pleasure. Let us know if you have any questions.
