Caldwell window balance slides

Home Owner from indianapolis
balance slides sizes
Channel Balance
2 Replies
Paul
Paul from SWISCO
SWISCO
Expert

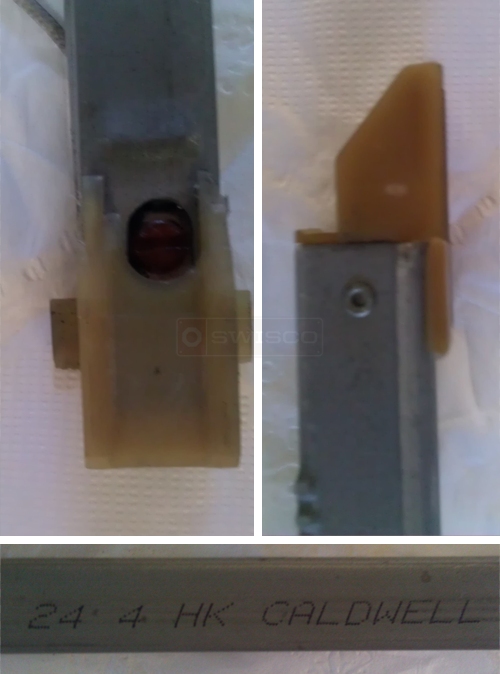

Depending on your bottom balance shoe depth (for 1", use S380-25, or for 1-3/32", use S385-25) you will need one of our Series 380 or Series 385 side-load balances. The spring weight "option" would be 2440, based on your 24 4 stamp. Measure as shown below to choose a Series:
Comparison of 15-004 and 15-005
Comparison of 15-004 and 15-005
