Caldwell - window channel balance 2740

A home owner from Simi Valley CA says:
June 28, 2021

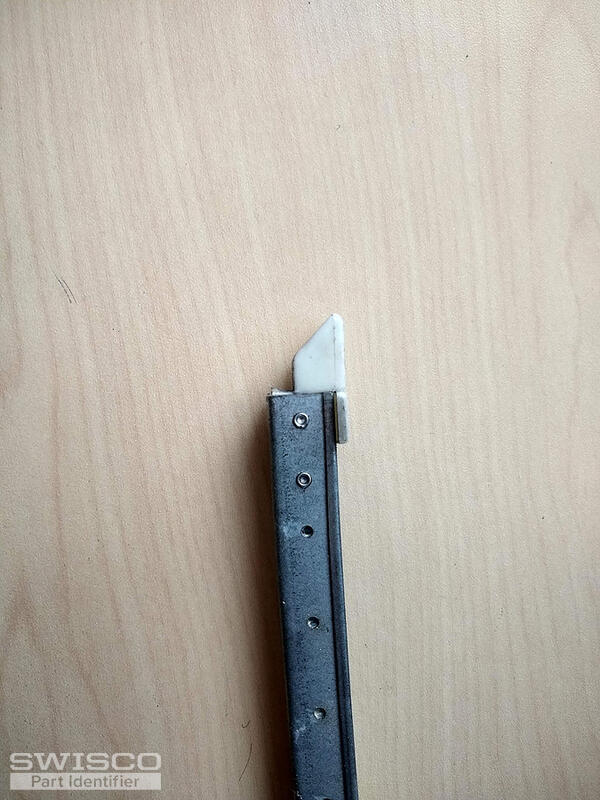

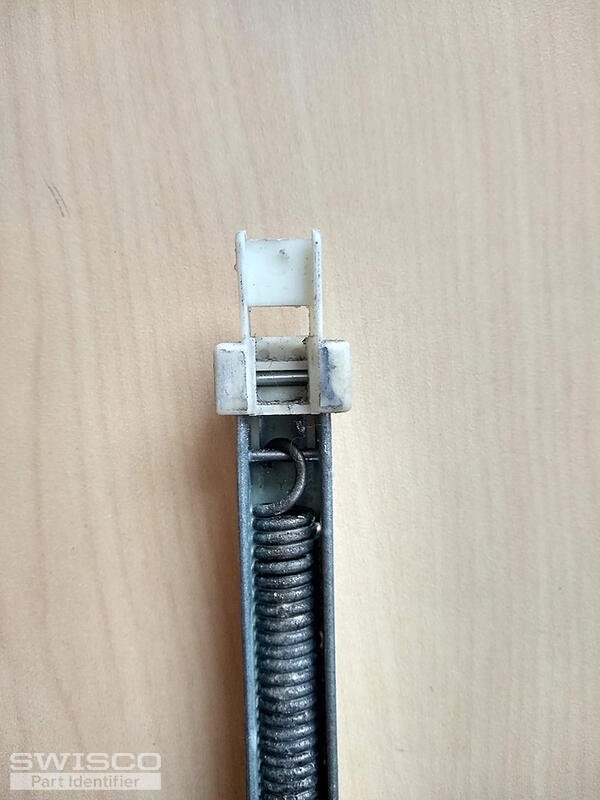

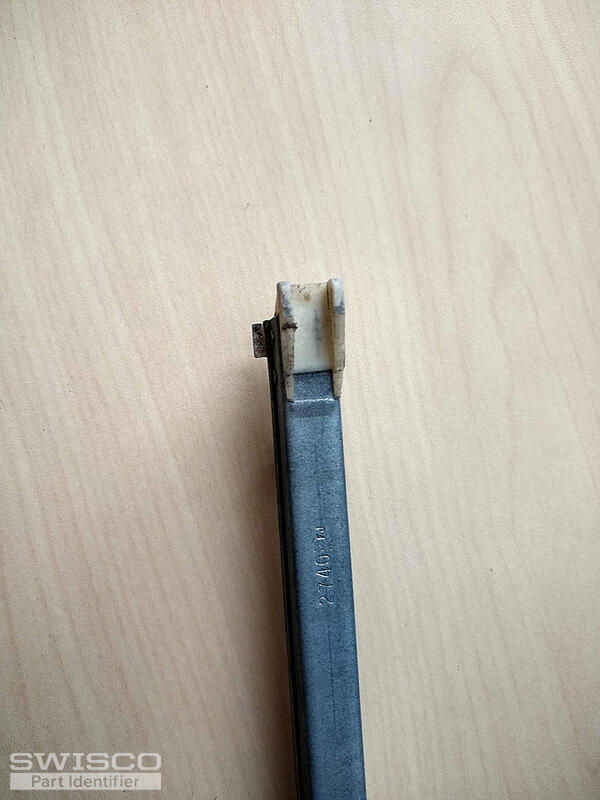

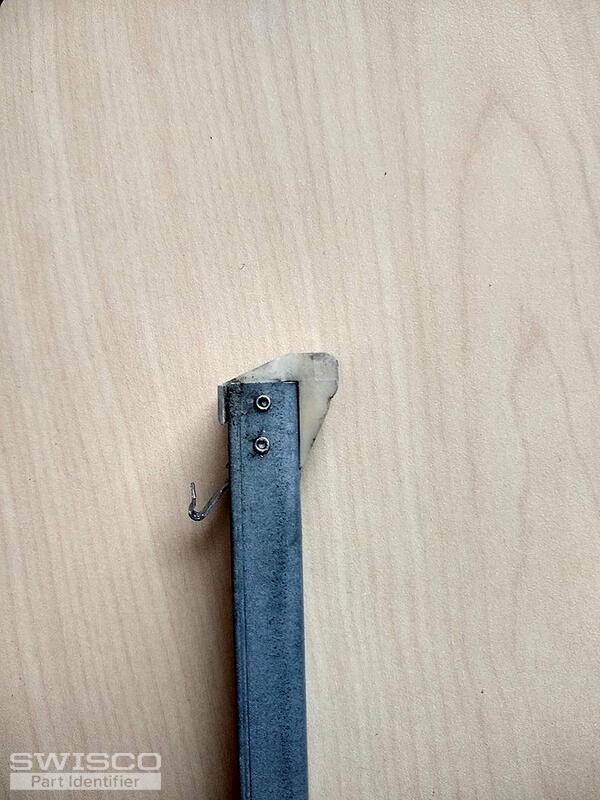

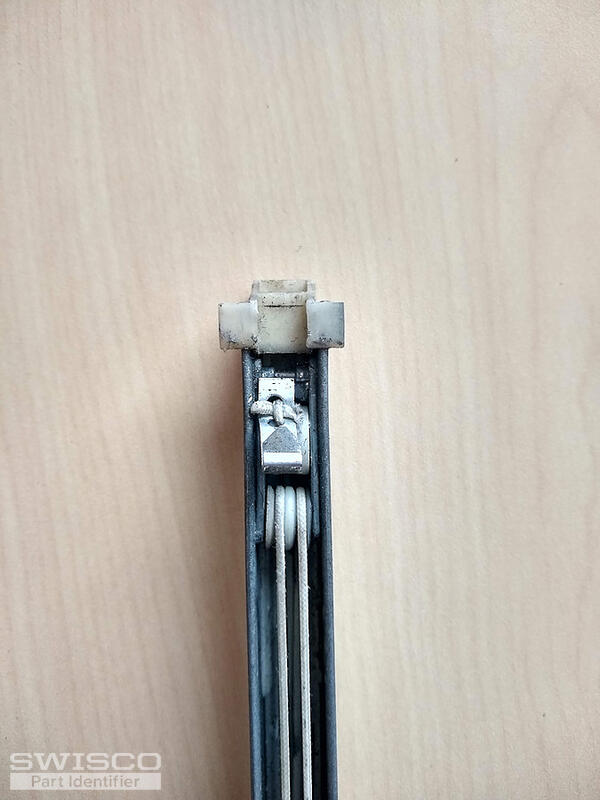

Please let me know what is the correct part to order considering the above pictures of the plastic things attached at the end of the part. Some are marked 27 4 AP and some are marked "27 3 BP"
Thumbnail of the uploaded file named IMG_20210628_153859744_HDR.jpg
Thumbnail of the uploaded file named IMG_20210628_153911064_HDR.jpg
Thumbnail of the uploaded file named IMG_20210628_153922970_HDR.jpg
Thumbnail of the uploaded file named IMG_20210628_153936847_HDR.jpg
Thumbnail of the uploaded file named IMG_20210628_154843037_HDR.jpg
Profile picture of Casey
Casey from SWISCO responded:
July 2, 2021

Hello,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2730 or 2740 strength options to replace your balance with correlated stamp codes.

Thank you and let us know if you have any other questions or concerns.



Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
28" Series 380 Channel Balance
28" Series 380 Channel Balance
S380-28
$10.97
28" Series 385 Channel Balance
28" Series 385 Channel Balance
S385-28
$10.97
