Calwell non tilt balance and sash guide

Question

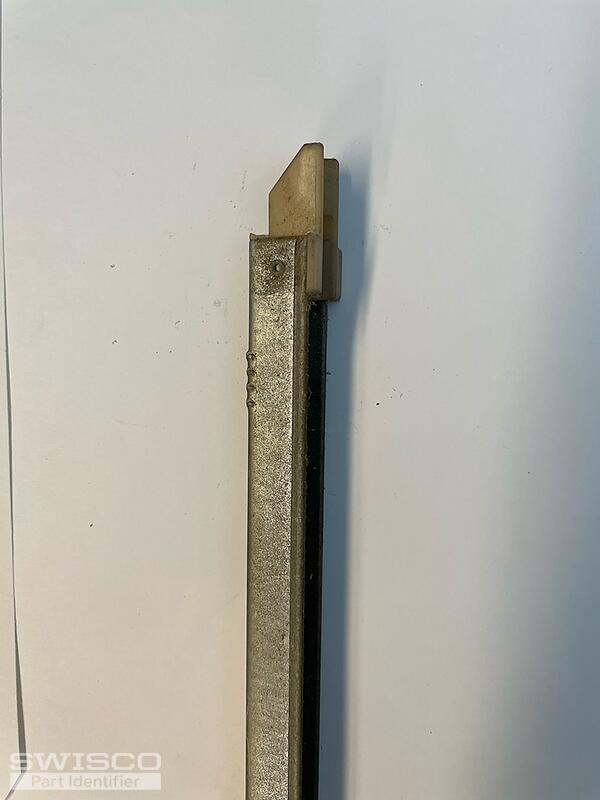

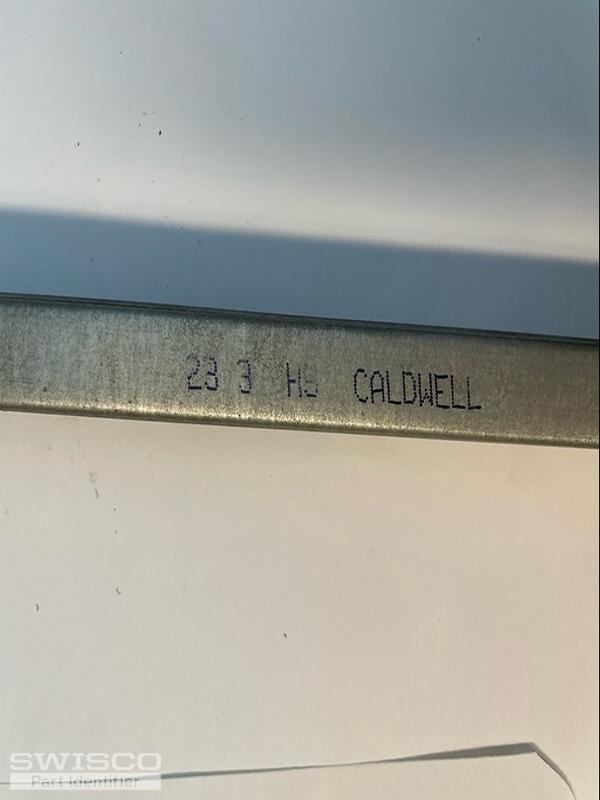

I need to replace non tilt Calwell channel balances and sash guides for my vinyl windows. Please help identifying the right replacements. Channel length is 24 inches.

I think the channel balance to replace my existing Cadwell channel balance is S380-24, option 2330. I want to make sure before ordering

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-24 or S385-24 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2330 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
