Can This Become a Keyed Lock Without Replacing Parts?

Question

Good morning. I am wondering if we are able to install a keyed lock cylinder into this current setup instead of replacing the handle itself? I have the outside and inside handle. My customer did not supply the locking bolt/hook itself. Will an 82-310 lock cylinder fit in this current setup or would we need to order an 82-306 to replace the outside handle? The outside handle seems similiar to an 82-306 but with different dimensions and screw holes.

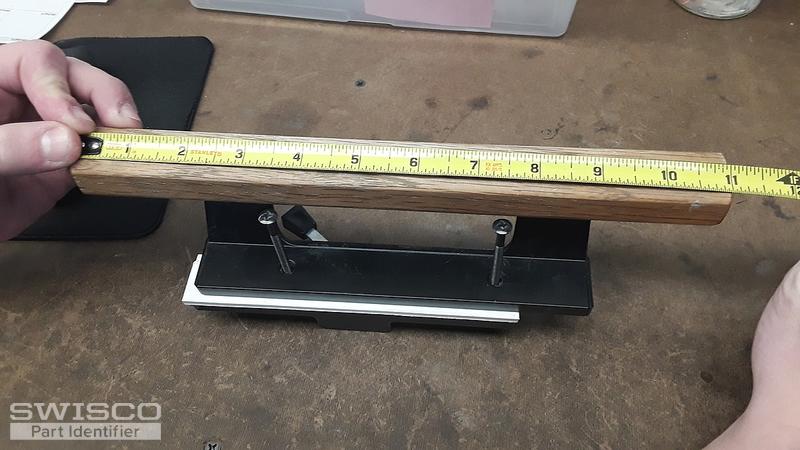

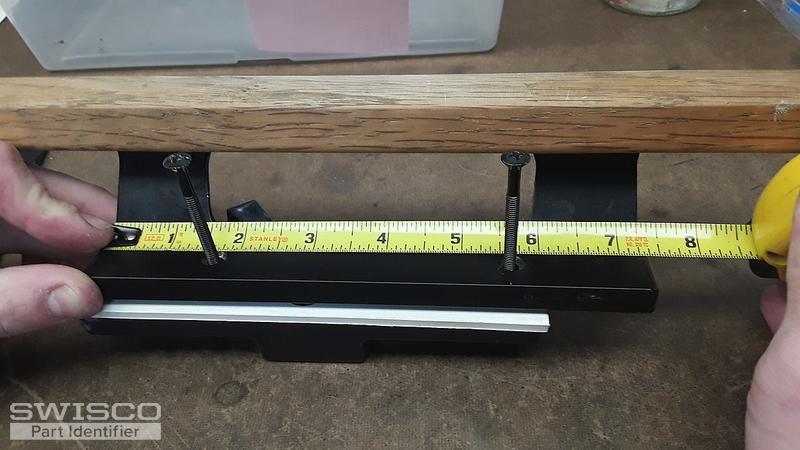

I also have more pictures and measurements if that is helpful.

Thanks,

Nate

Tom · Accepted Answer

Hey, Nate. I feel pretty confident saying that the 82-310 should work in your existing outside handle. You can always look over our dimensions just to be 100% sure. If you have any doubts, then the 82-306 keyed outer pull should also work. That's a good emergency backup option if you aren't confident in the 82-310's size.

Alternate view of 82-310
