Can you help me find the correct window channels?

Start a new Discussion

Home Owner from USA

Jun 6, 2014 8:57 am

I'm interested in finding out if you can help me find the correct window channels I need for my window.

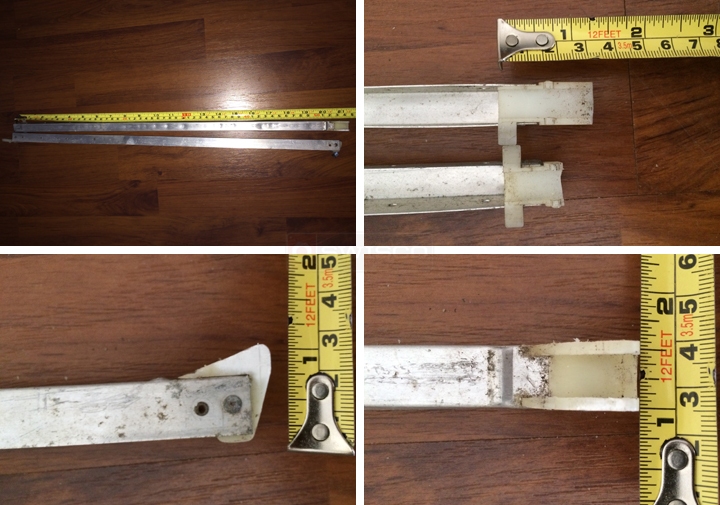

User submitted photos of a window balance.

8 Replies

Tom from SWISCO

Jun 6, 2014 2:40 pm

Thank you for posting. This looks like an odd balance. Specifically, the top attachment is very peculiar. Could I see a couple more pictures of it from a few different angles? Thanks!

Quick Learner from Florida

Jun 7, 2014 7:35 pm

Thanks for the replying Tom.
Here are a few more pics.

Marco

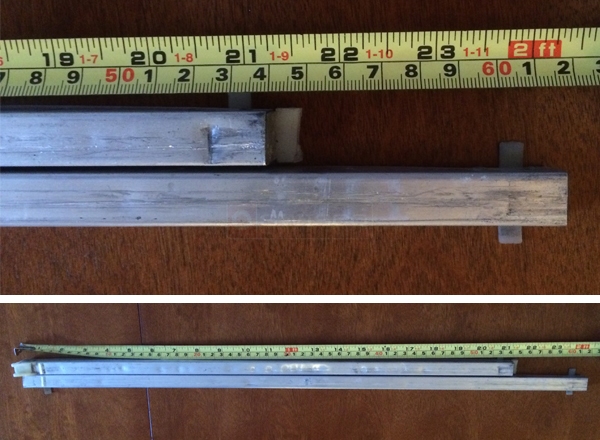

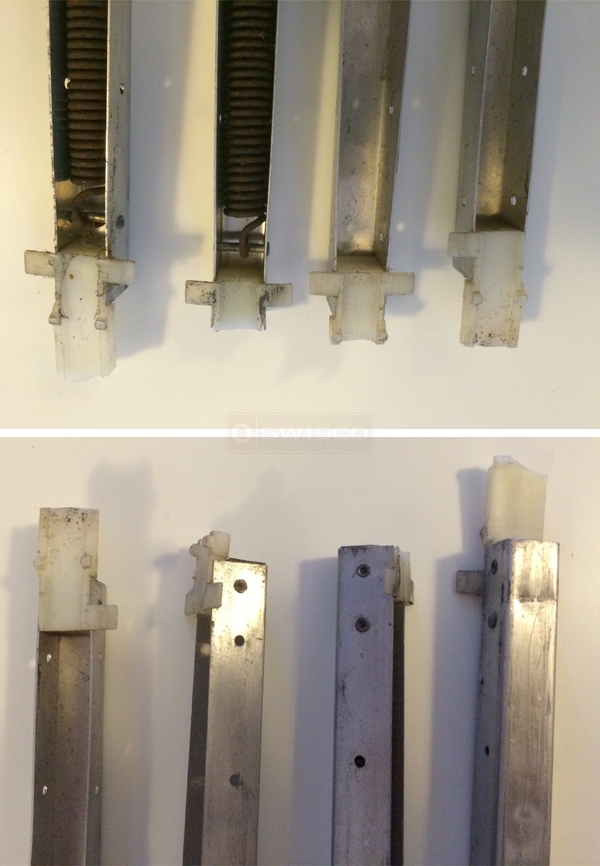

User submitted photos of window balances.

Paul from SWISCO

Jun 10, 2014 9:07 am

Thank you! This balance looks like it has a 19-039 top attachment and 15-002 bottom attachment. Look those parts over and see if you agree. If so, this balance will have to be specially made, since we do not have a standard Series with this combination. Please also confirm that the stamp on your balance reads 2020.

If all that clears, I'll go ahead and email you a purchase link and price quote for your review.

Quick Learner from Florida

Jun 10, 2014 7:32 pm

There are two sizes.
The small one is 2020 and the large one is 23c.

I'll look up the item numbers to see if they match. Thanks for the help.
Marco

Tom from SWISCO

Jun 11, 2014 10:06 am

Ah, I see. In that case, I will send you a new link for this. I believe that 23C corresponds to our 2330 option.

Quick Learner from Florida

Jun 11, 2014 10:33 am

Thank you guys. I believe those are the right window channels, thanks for the help.

Quick Learner from florida

Jun 17, 2014 2:28 pm

Thank you Tom and Paul.
I just received and installed the window channels and you guys were dead on, they fit perfect.

It was the perfect window channel I can not stress how helpful you guys were.

Thanks again,

Marco
