Can you identify

Home Owner from Texas
Hello

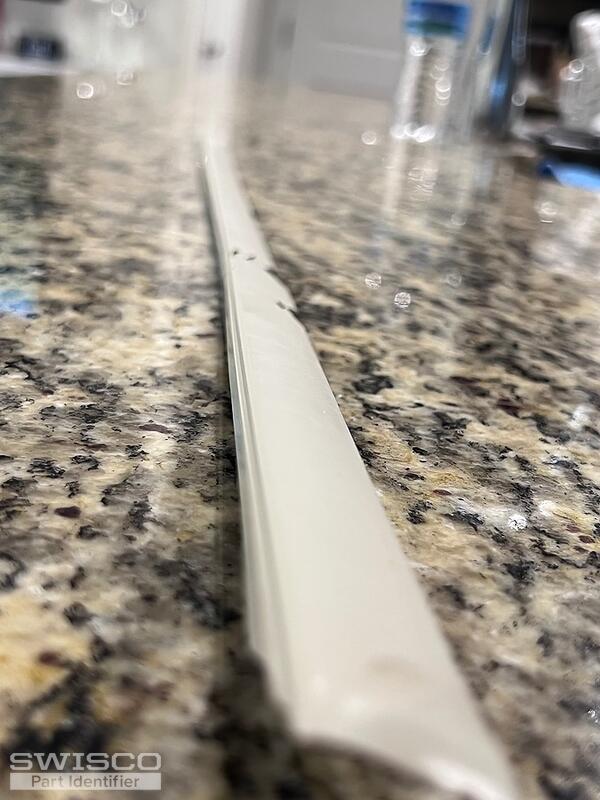

can you identify this glazed beads
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hey there,

This glazing bead seems to be similar to a few we have but its a bit difficult to make out its exact shape from the photos.

May I see a clearer photo of the end profile? It is important to see its exact shape and how it snaps in to place.

Home Owner from Texas

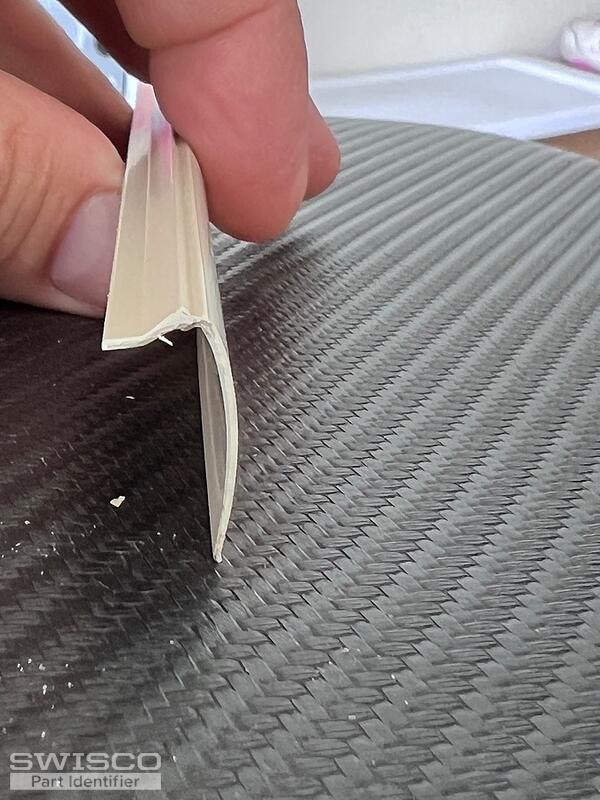

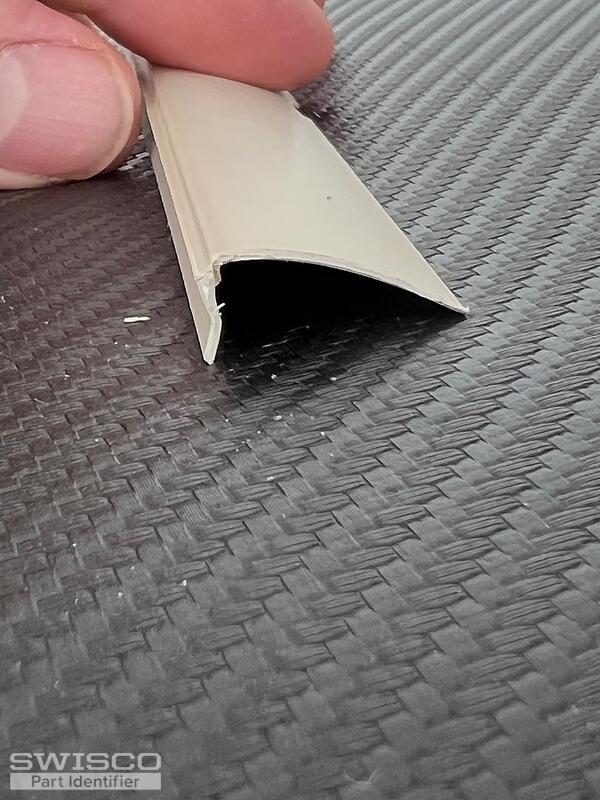

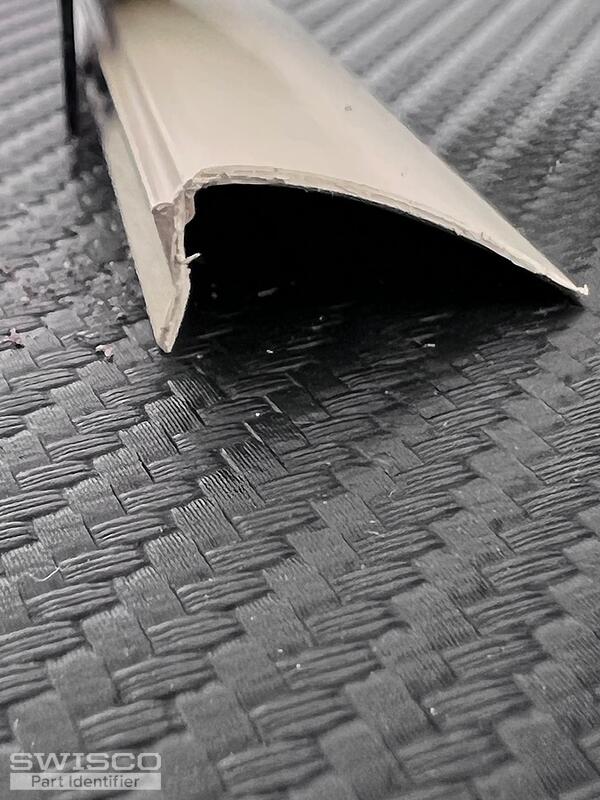

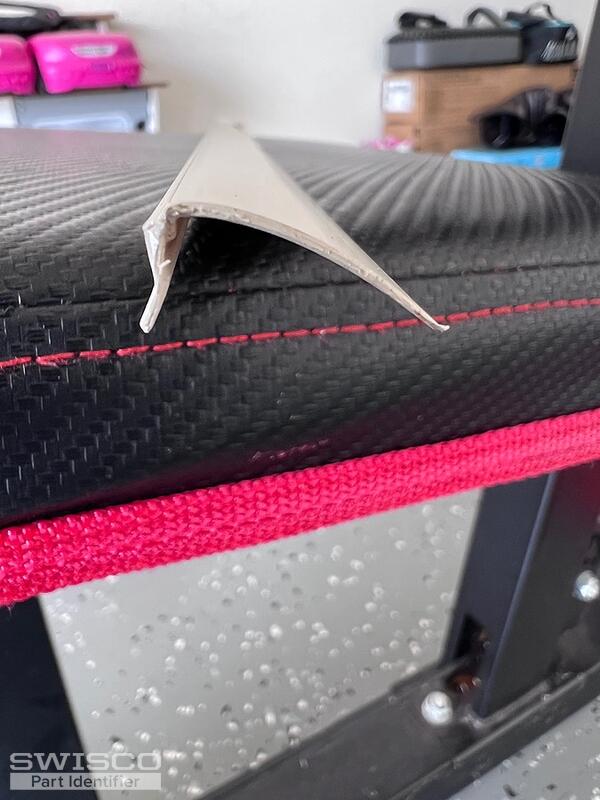

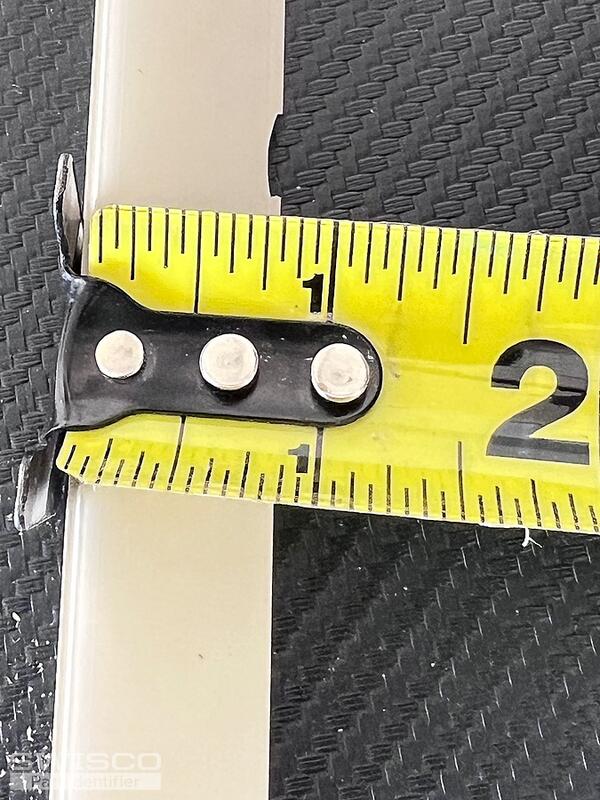

I hope I was able to take better photos.
Thank you
5 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the additional photo. Your glazing bead has a similar shape to the 55-197-6 Snap-in Glazing. To confirm that this is the right replacement, take a look over the dimensions shown on the diagram below and compare them.

Dimensions for 55-197-6
Dimensions for 55-197-6
