Can you identify the part that I need to order

Quick Learner from 33028
Hi,
I think mine is 27" Series 380 Channel Balance
S380-27. Could you please confirm?

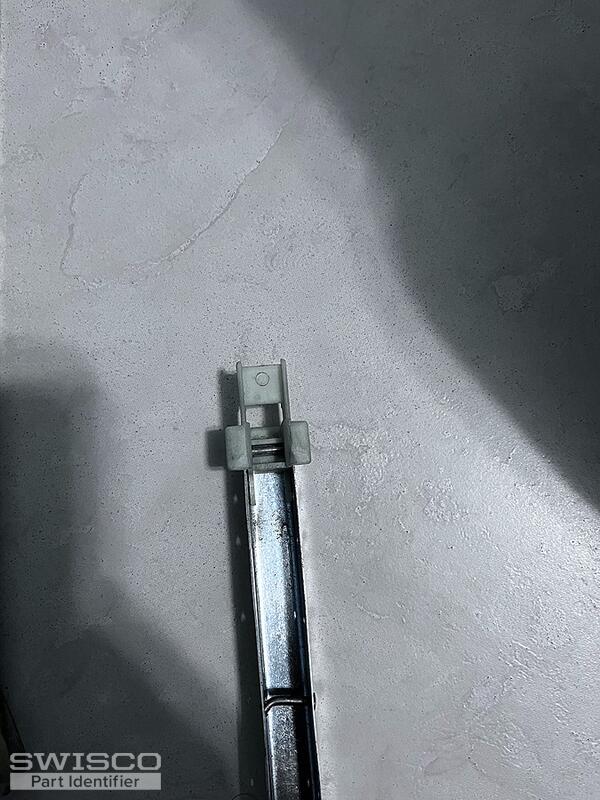

5 user uploaded images
5 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hey there!

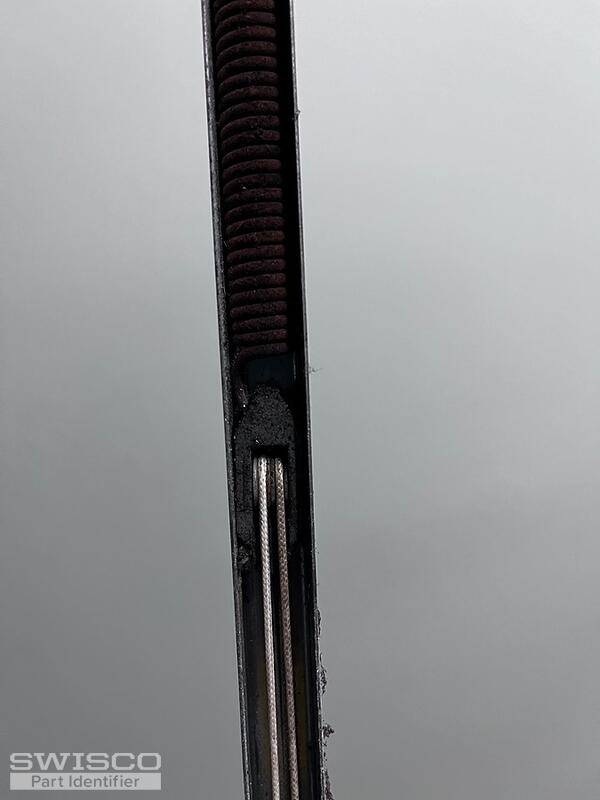

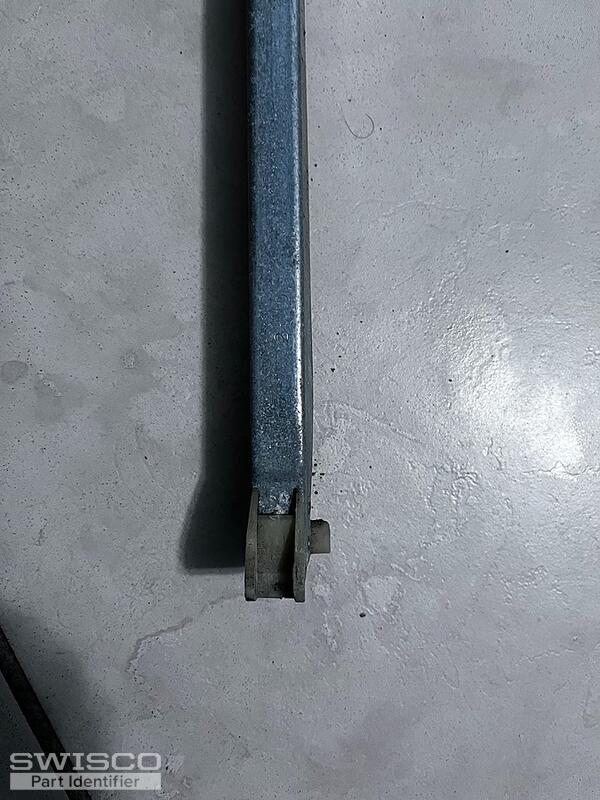

Thanks for reaching out to us. We're happy to look further into this. Before we can confirm, can you show us a photo of the inside of the balance's metal channel where the innerspring connects to the pulley mechanism? That'd be located in the middle of the channel. It looks like your spring may be damaged or missing so you'll have to use an undamaged balance as a reference. Can you also measure the bottom shoe as shown below and tell us what you find?

Profile view of a winged balance attachment
Profile view of a winged balance attachment

Quick Learner from 33028
Please find attached.
The wing is 5/16 inch and depth is 1 inch
1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

Thank you kindly! Based on this photo and the fact that the shoe is 1" deep, you'd definitely want the S380-27. The stamp printed on the metal channel is too faded to make out though. You could check the balance on the other side of the window to see if that one has an intact stamp. If it doesn't, you'll have to weigh the window sash on a scale and refer to the chart under the product description on the S380-27 store page to determine the appropriate stamp option.

Quick Learner from 33028
Thank you very much for your advice.
