Can you please help me confirm a pivot lock shoe

A contractor from Frederick, MD says:
September 26, 2017
Hello!

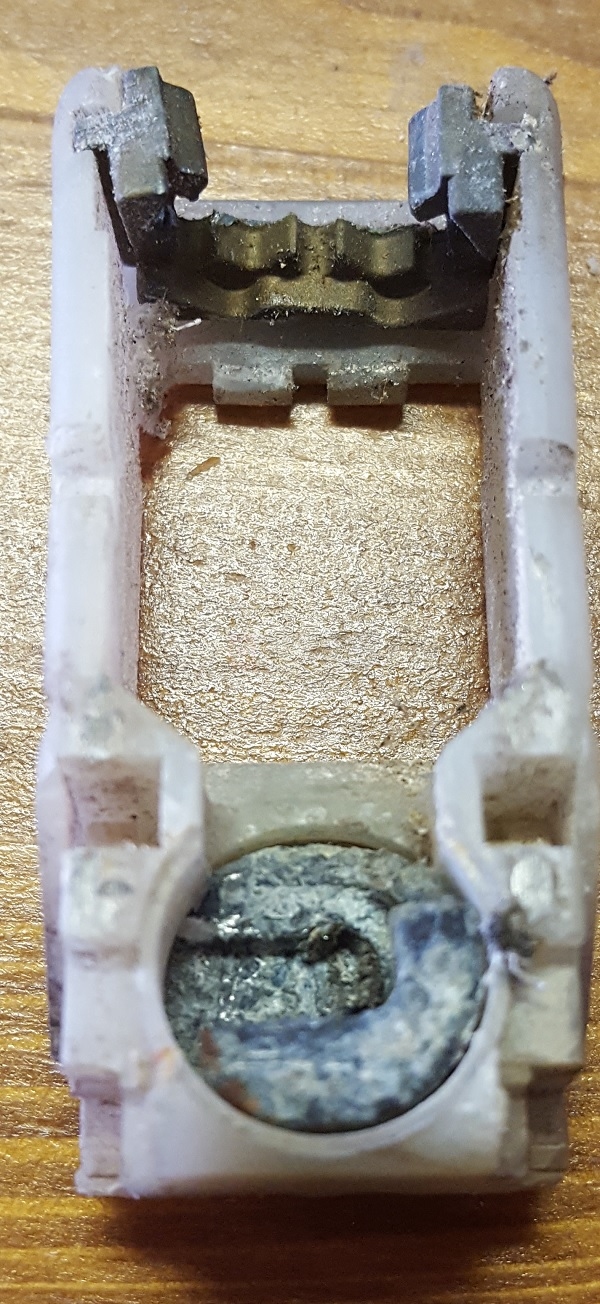

I believe item 15-179 (Pivot Lock Shoe, 9/16") would work for the attached picture. The measurements seems correct but I'm a little nervous - this is my first time ordering these parts. Any advise would be welcome!

Many thanks!
pivot shoe
Profile picture of Paul
Paul from SWISCO responded:
October 2, 2017
Your pivot shoe isn't available. We suggest a 15-179 pivot shoe with a 26-021 pivot bar as a replacement. Unfortunately, the order that went through for you will probably not work without some pivot bars. You need to order 26-021 bars to go with the new shoes.
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-021
$1.97
Pivot Lock Shoe, 9/16" Thick
Pivot Lock Shoe, 9/16" Thick
15-179
$2.57
