Can't Find a replacement anywhere....

Handy Person from Massachusetts

May 30, 2016 9:29 pm

Hi,

No markings on Roller Assembly.
Rollers (2) are 1".
Width at roller rivets: 9/16"
Total Length: 3"
Height: 1 1/8" (fully retracted)
This is from an old Deck House Sliding Door -- they don't know anything.
I guess I can always drill out rivets and replace rollers (not my preferred option).

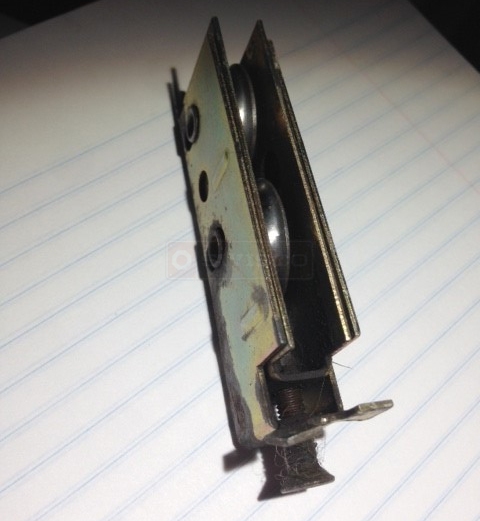

User submitted a photo of a patio door roller.

4 Replies

Tom from SWISCO

Jun 3, 2016 9:52 am

This resembles our 81-164, but it's hard to tell based on this angle alone. Look it over and see if you can use this as a replacement. If not, show me a couple more pictures of this roller so we can see more of it.

Handy Person from Massachusetts

Jun 4, 2016 8:10 am

Thanks for the response.
i have order the suggested part 81-164. It look exactly like my part. However, I suspect it is too wide -- the maximum width of my part is the same as what appears to be the width of 81-164 EXCLUDING the rivets and dimples. If it is too wide, I'll rebuild my part with the wheels (assuming those are too wide).

Tom from SWISCO

Jun 7, 2016 11:04 am

Oh, great. Thanks for the order. What you outlined sounds like a great idea. Please let us know how it works out!
