Can't Identify

Start a new Discussion

Quick Learner from Georgia

Aug 17, 2024 10:40 pm

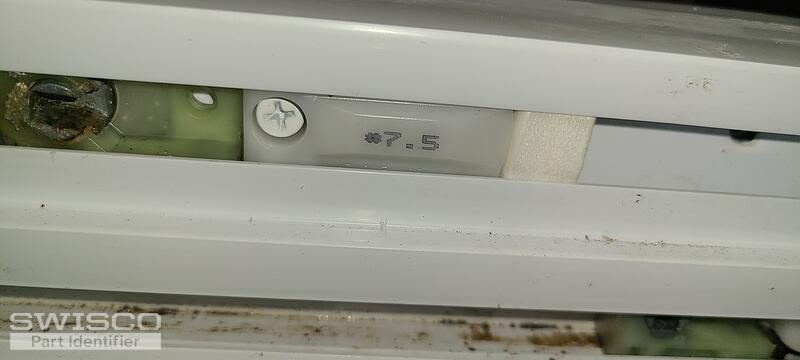

I just got the window from salvage, no name anywhere but the spring part says 7.5 on the side.

1 user uploaded image

4 Replies

Emily from SWISCO

Aug 20, 2024 3:51 pm

Hey there!

Thanks for reaching out to us. We're happy to look into this. Can you remove the pivot shoe and show us a photo? I'm afraid it's too obscured by the window track. The video below will show you how to make a cut out in the window if there's not one already.

Quick Learner from Georgia

Aug 20, 2024 7:22 pm

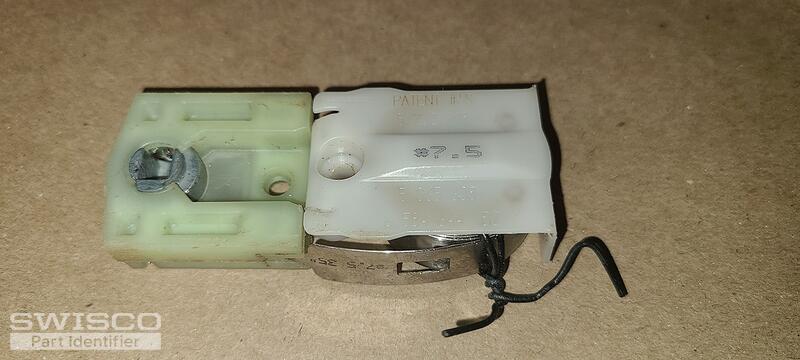

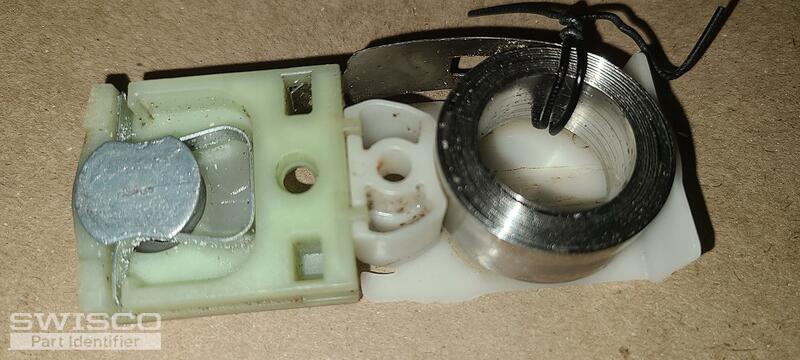

I don't think you carry the same housing that I have. The weight is 7.5 for the spring. 165 Egress Coil Balance. I hope the pics help.

2 user uploaded images

Emily from SWISCO

Aug 21, 2024 8:03 am

These photos indeed help, thank you! Your pivot shoe resembles the 15-228. This is used with the 1/2" S160 and 3/8" S165 coil springs. Based on the shape of your old cover, I suspect the spring should be 1/2" wide. Can you measure the old spring band to confirm?
