Can't find replacement corner key

Question

Hi,

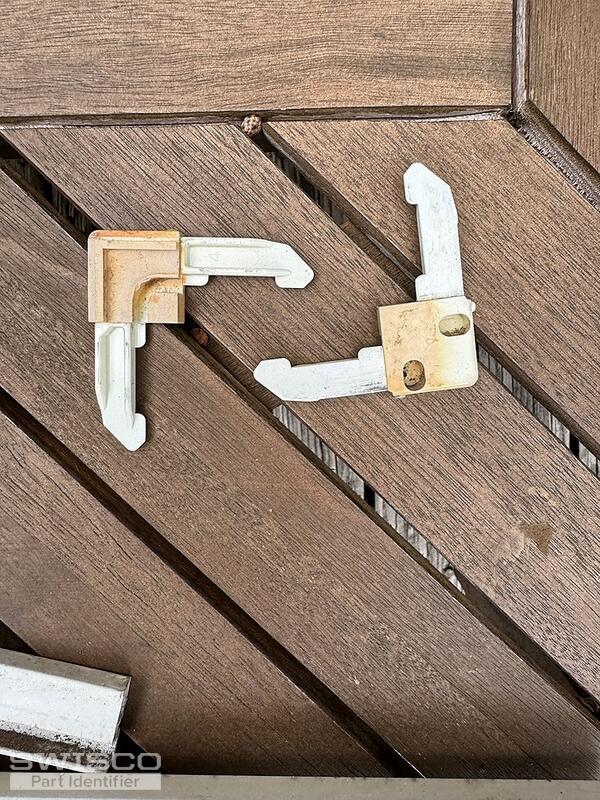

I cannot find a replacement part for this corner key. A few were old and snapped apart. I tried buying replacements that the big box stores carry and corner size seems to be 5/16, but the part that inserts into the frame is too wide.What size am I looking for? Or what else will work? Please help.

Jasmine · Accepted Answer

Thanks for posting! The screen corner you have here is an older, discontinued Bayform corner. To replace it, we typically suggest using the 95-187 Screen Insert Corner. Take a look over the dimensions below to determine if this will be a fit for your screen.

The tabs that fit into the screen have a 9/16" width and 1/4" thickness.

Dimensions for 95-187

The tabs that fit into the screen have a 9/16" width and 1/4" thickness.

Dimensions for 95-187
