Cardinal Window replacement weather stripping

Home Owner from Minneapolis

Apr 6, 2020 3:34 pm

Hello,

I'm looking for replacement weather stripping for Cardinal Sigma crank-out windows. The house was built in 1976 and these are the original windows. Old stripping is brittle and chipping off. It's included on all four sides of the window. Picture included. Can you supply this replacement part?

Thank you,
James

1 user uploaded image

4 Replies

Casey from SWISCO

Apr 8, 2020 1:53 pm

Thank you for posting on our discussion board, James. I believe we may be able to help you, but we need to see photos showing a sample of the weatherstripping removed from the window. We need to see it from an end profile so that we can see its shape. If you could also supply some measurements for us, that would be a big help.

Home Owner from Minneapolis

Apr 13, 2020 11:32 pm

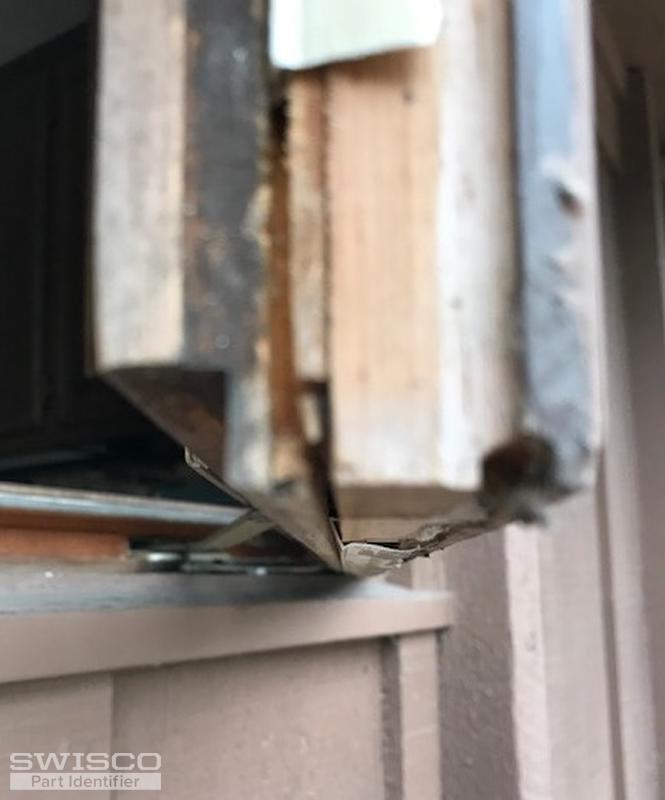

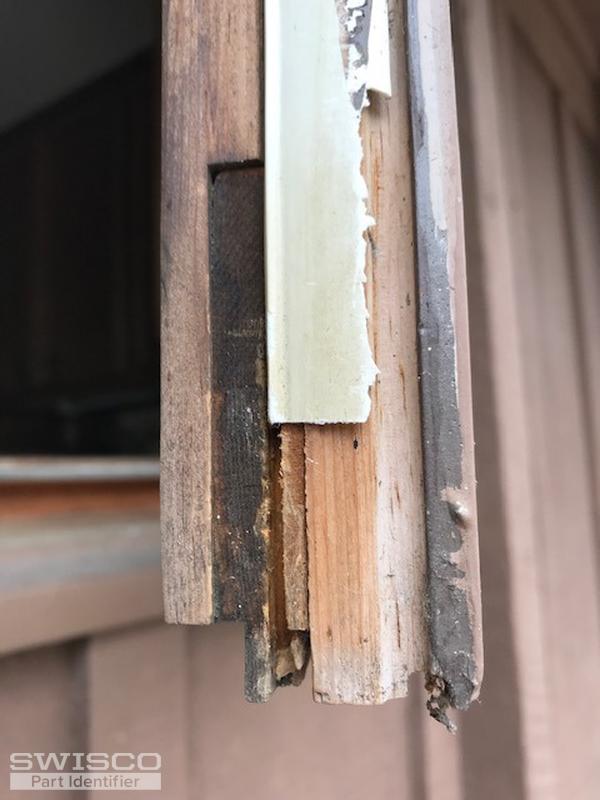

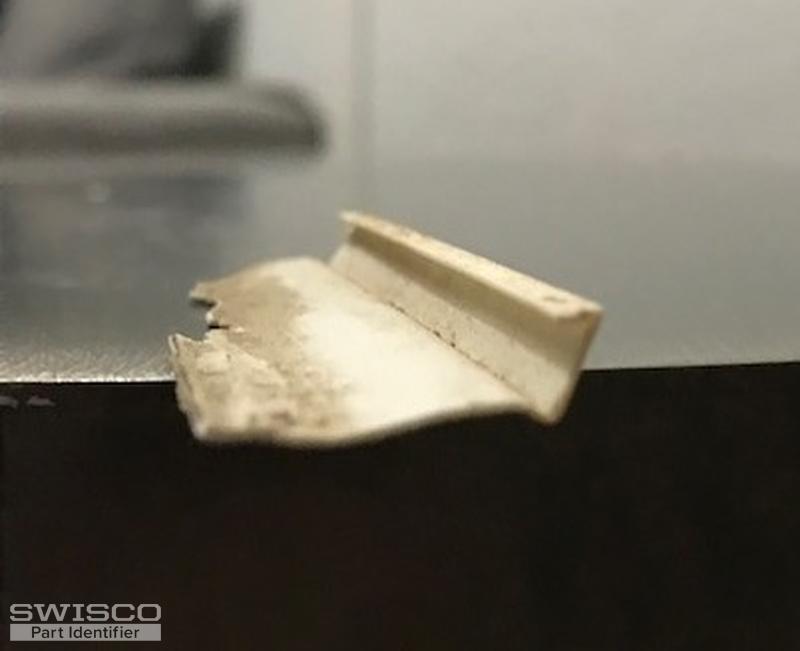

Hello. I've included pictures showing the end profile of the weather stripping. Additional pictures of the window are also included. The width of the stripping is ~3/4". The vertical edge is ~1/4". Window dimensions are 64x26.5", 51x26.5" and 40x26.5". Please let me know if you need any other information.

Thank you,
James

5 user uploaded images

Casey from SWISCO

Apr 14, 2020 7:32 am

Thank you for getting back to us with more photos and measurements. Start out with having a look at our 55-106 weatherstripping. Our measurements are a little different but it may be worth a shot. Take a close look and see what you think.
