Carefree Window Balancer

Contractor from Michigan

May 10, 2023 12:05 pm

Please advise. I did read your instructions. This has a black tip unsure what part this would be. window is tilt. year is 1994 single hung window. approx. size 44 x 30

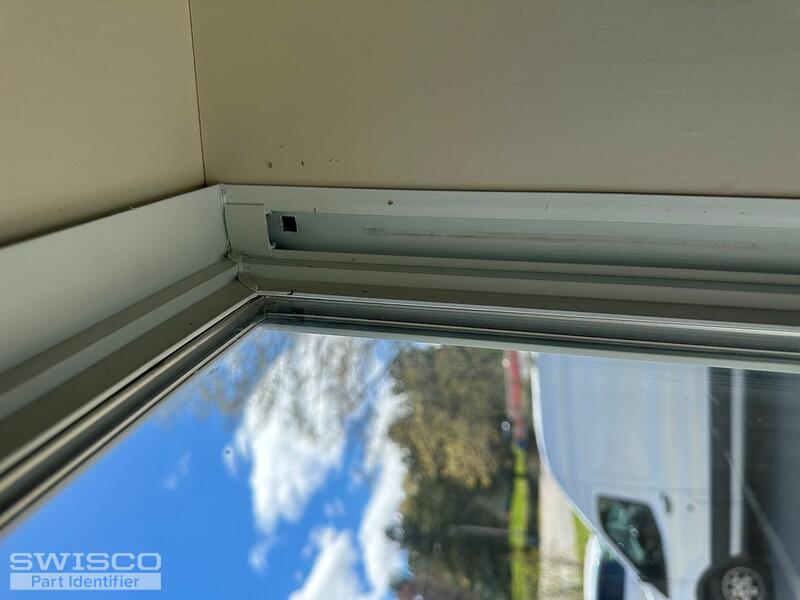

also looking to see if you carry the plug that is missing see photo 1

3 user uploaded images

1 Replies

+ Add a Comment

Jasmine from SWISCO

May 11, 2023 1:37 pm

EXPERT

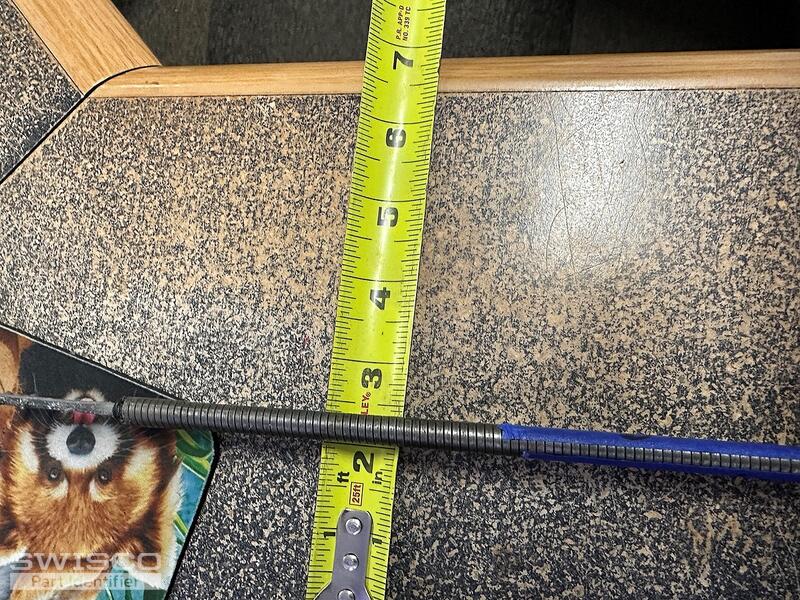

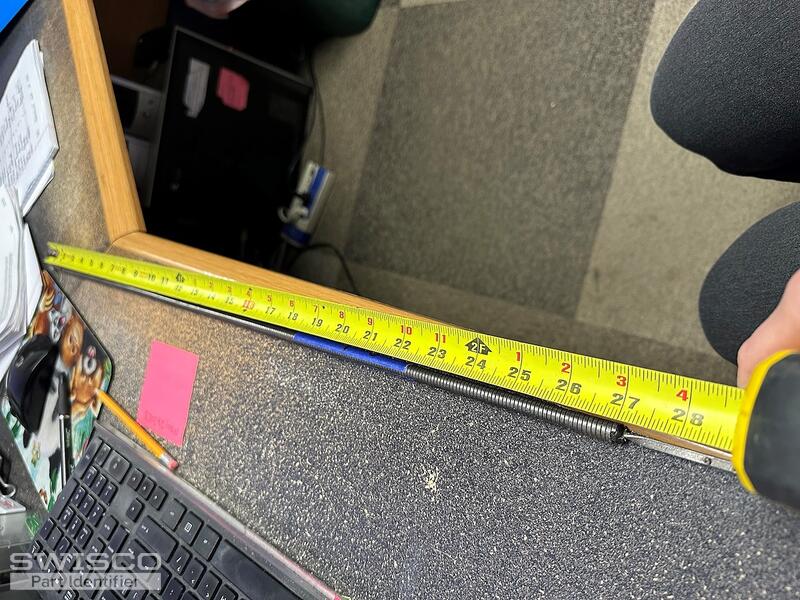

Thanks for writing in! Your spiral balance appears to the be the S600-30 with a black tip. This balance has a 5/8" diameter. Although, you should be sure to double check the diameter of the balance.

I believe the balance plug you are referring to may be part 26-200. Look over the dimensions to confirm that this is the right fit.
