Carefree Window Spiral Balance

A handy person from Sellersburg In says:
I have 7 windows that have black tips on the spiral balances and are 30" in length and 3/8" in dia. I have 2 windows that have white tips, 30" in length 3/8 in dia and 1 window with white tip 13" in length and 3/8" dia.

I see the black and white tip in the ID section but I don't see the black and white tip in the ordering section.

Carl
Profile picture of Tom
Tom from SWISCO responded:
Can you confirm the diameter of the outer tube and the color of the tip? They do not make black tips for 3/8" diameter balances.
A quick learner from Sellersburg In says:

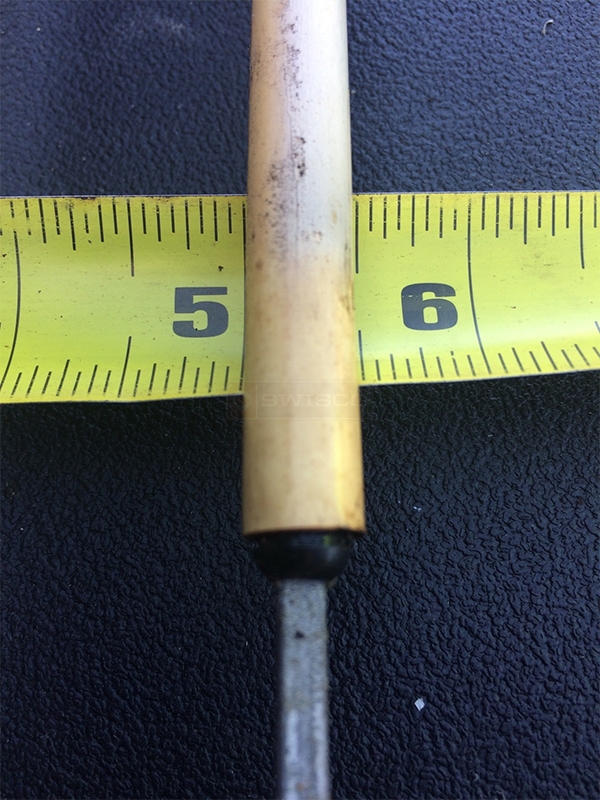

I hope you get the image, it shows a black tip and as far as I can tell it is a 3/8diameter balance
User submitted a photo of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
Your photo shows the diameter leans more toward 1/2", which leads me to go with the Series 600 tilt balance. The S600-30 has a tube diameter of 9/16" (or 5/8"). I would triple check just to be sure. What's more is that it actually comes with a black tip color option for sashes weighing 31 through 40 pounds. For the white tip balances, I would weigh the sash and refer to the chart shown on each Series 600 store page to confirm the best option. Older white tips like yours used a different rating system than newer balances, so weighing your sash is the best way to confirm the best modern option.
