Case widow crank won't close window

Question

What is replacement crank needed for the below described crank

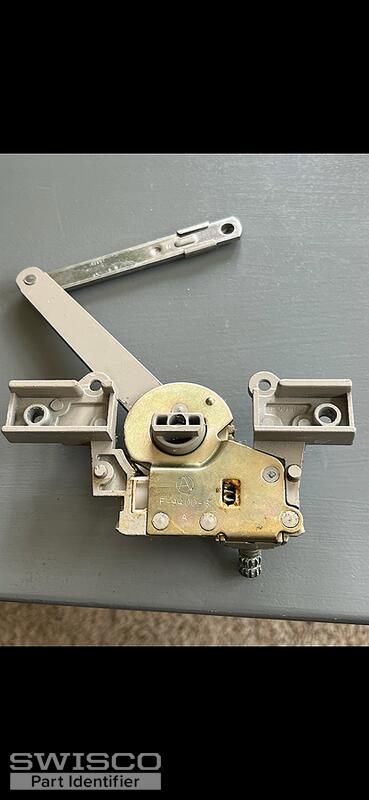

Pics enclosed of crank ( window opens up to the right side),
Part number on crank is C-9400-1, brass base plate on bottom of crank has stamped # F-9400-8.
Top screw holes in bracket are 2 3/4" apart center to center, second set of screw holes are 4 1/2" apart center to center.

Please let me know if any additional info is needed to accurately replace the old crank.
Thank you!!!

Jasmine · Accepted Answer

Thanks for contacting us! Your casement window operator reminds me of an older version of the 39-264 Andersen Split Arm Crank. Since the based of the operator is much different from the base on yours, you may also need the 39-362 adapter plate to install it. Take a look over their dimensions and compare them to confirm.

I've tagged the compatible hardware and accessories below for your review as well. Each part is sold indivdually.

Dimensions for 39-264

Alternate image for 39-362

I've tagged the compatible hardware and accessories below for your review as well. Each part is sold indivdually.

Dimensions for 39-264

Alternate image for 39-362
