Casement Operator Id

A contractor from St. Croix says:
August 13, 2019

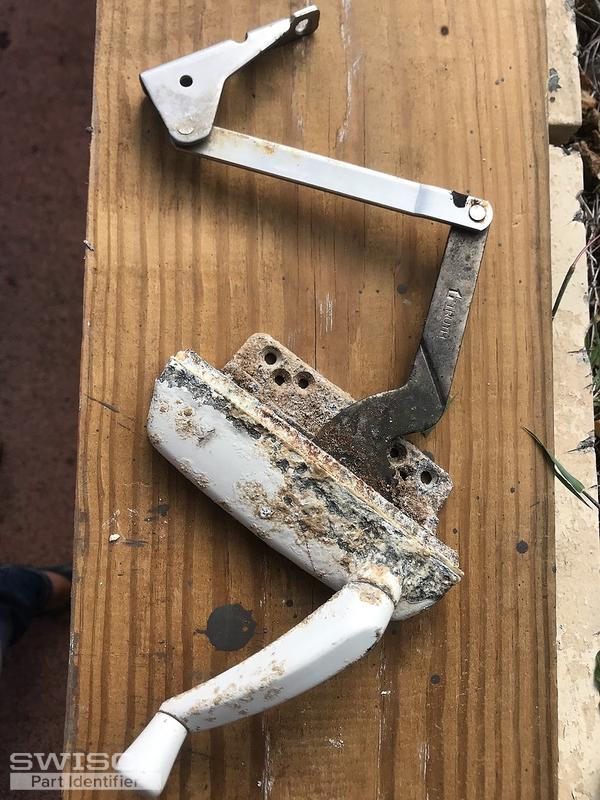

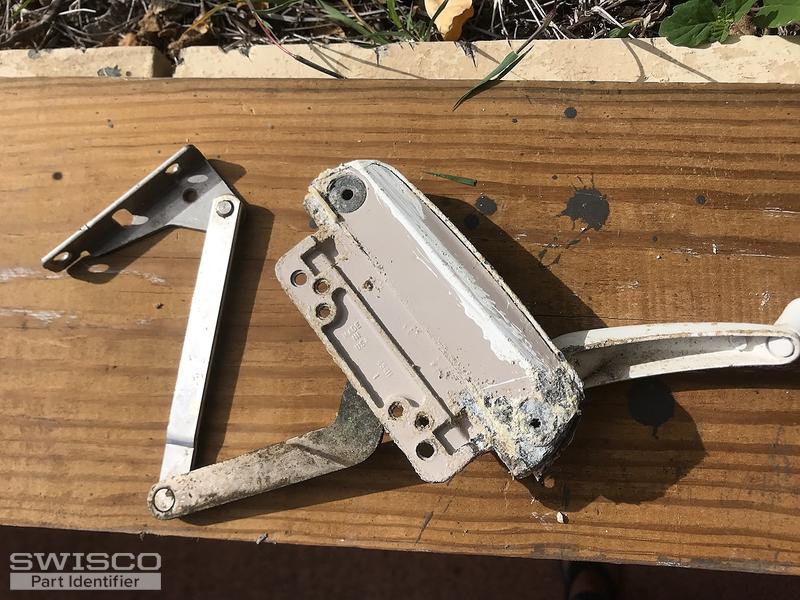

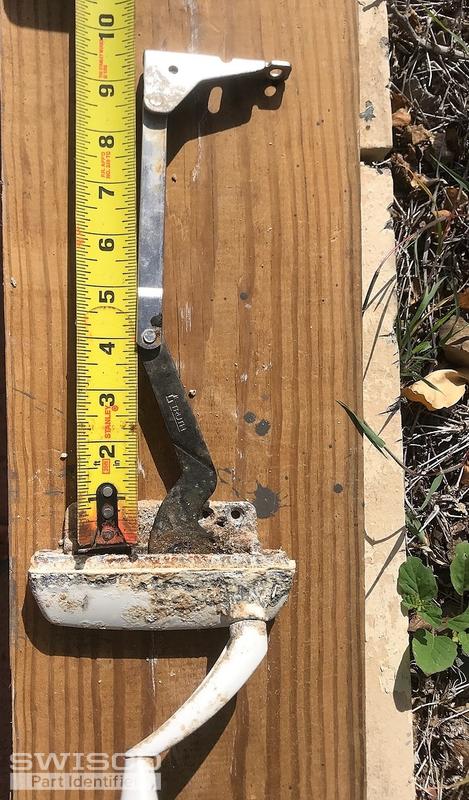

I need to find the part number for this operator for PGT casement Windows WINDGUARD. I need both right and left operators. Thanks
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Bob
Bob from SWISCO responded:
August 15, 2019

Thanks for writing in. See our 39-221 and its opposite-handed counterpart, our 39-220. Go over the dimensions to see if these match what you need. For a new crank handle, see our 39-114L. If your old stud brackets are undamaged you can reuse them, but otherwise see our 39-545 and 39-546.
Maxim Dyad Sill Mount Operator, LH
Maxim Dyad Sill Mount Operator, LH
39-220
$29.78
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
Truth Snap-Stud Bracket
Truth Snap-Stud Bracket
39-545
$3.22
Truth Snap-Stud Bracket
Truth Snap-Stud Bracket
39-546
$3.22
