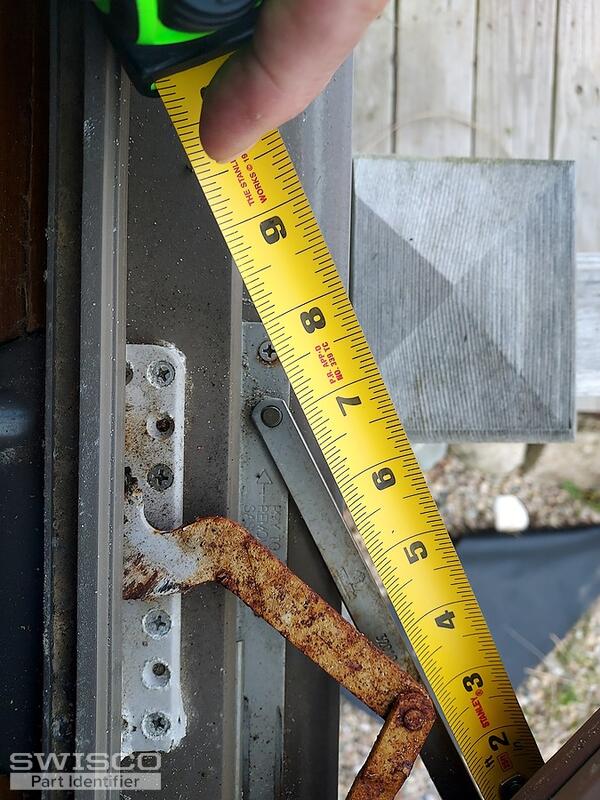

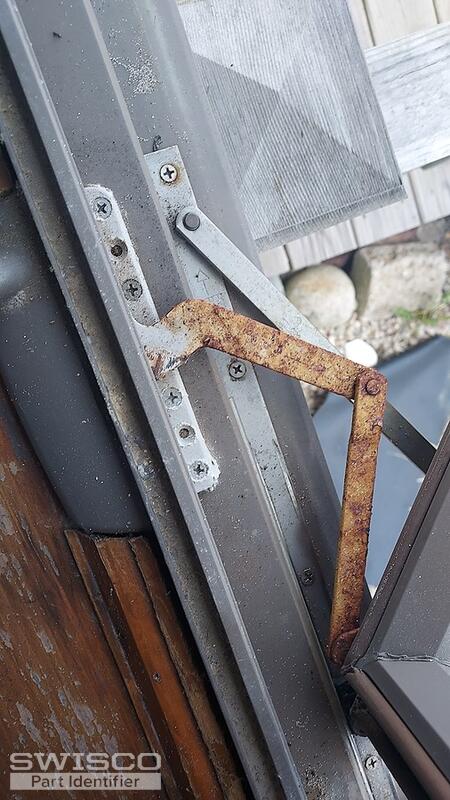

I have a property under management that have Harvey casement windows installed and the operators are slowy rusting away as the location is oceanfront. The windows were installed in the 1980's or 1990's. The hardware is TRUTH components, and the only number I can find which is on the pivot arm is 32010, if that helps. I would need two operators in the color shown and two handle cranks as well. Is there a exact or suitable match available?
Jim, Property Manager
Hi Jim,
The window operator you have here reminds me of the 39-220B Encore Dyad Sill Mount Operator. To confirm that this is the correct replacement, be sure to carefully compare the dimensions below.
The cover on the existing operator does not appears to be removable, so you'll also need either the 39-376 (folding) or 39-452 cover and handle kit as well. The opposite versions of the operators and cover kits can be found below.
Detail of 39-220B
