Casement Window Guide Track

A home owner from South Yarmouth, MA says:

June 30, 2022

Hello,

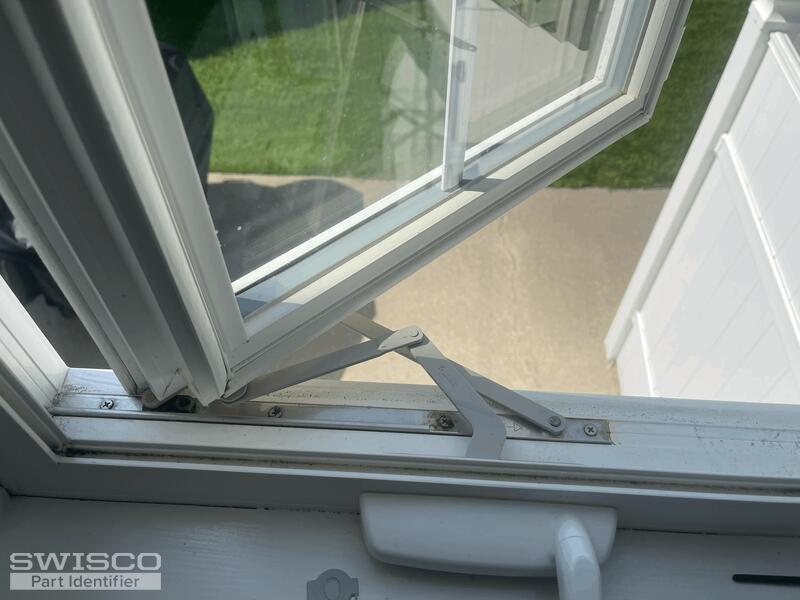

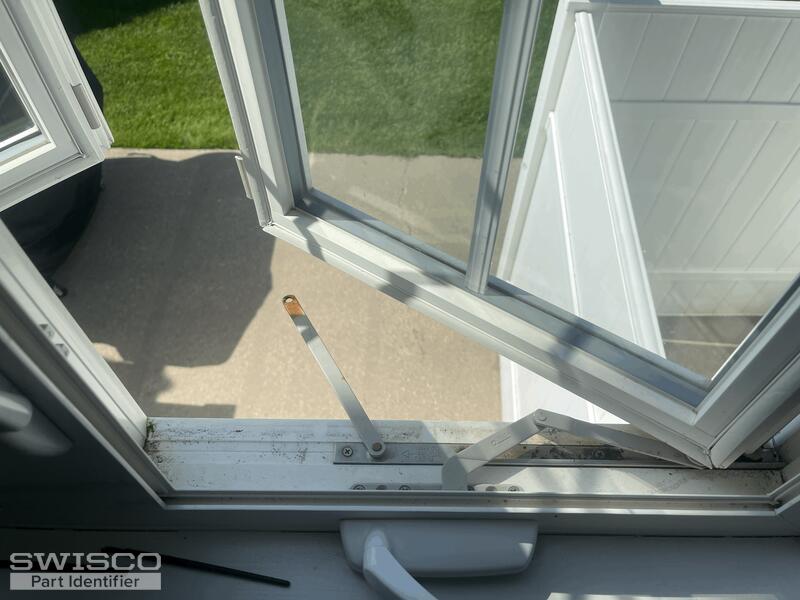

Need some help identifying and finding some older casement window guide tracks. Maki made these windows, but they sent me the incorrect parts.

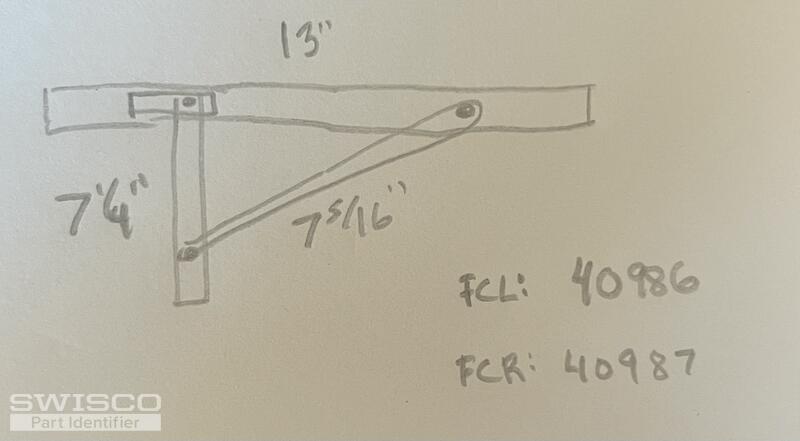

Attached are the dimensions of the guide tracks.

Thanks,

Matt

Thumbnail of the uploaded file named tempImage6sqlh7.gif

Thumbnail of the uploaded file named tempImagezXToTa.gif

Thumbnail of the uploaded file named tempImage5fYjA4.gif

Emily from SWISCO responded:

July 5, 2022

Hi, Matt.

It looks like you need a new hinge. We don't have one with a 13" base but take a look at our 36-049. This has a 14" base but should work fine as long as you replace the top and bottom hinges at the same time. Look over our specifications and see what you think.

2-Bar Hinge Set, 14"

36-049

$20.52
